HYBRID / BATTERY CONTROL  MOTOR GENERATOR CONTROL SYSTEM  P033516  Crankshaft Position Sensor "A" Circuit Voltage Below Threshold  P033517  Crankshaft Position Sensor "A" Circuit Voltage Above Threshold  P033523  Crankshaft Position Sensor "A" Signal Stuck Low  P033524  Crankshaft Position Sensor "A" Signal Stuck High


DESCRIPTION

If the crankshaft position signal pulse sent from the ECM via a direct line is abnormal, the motor generator control ECU (MG ECU) (built into the inverter with converter assembly) stores DTC P033516, P033517, P033523 or P033524.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Warning Indicate Note
P033516 Crankshaft Position Sensor "A" Circuit Voltage Below Threshold NE signal (crankshaft position sensor) is not input for 2 seconds or more while the engine is running*
(1 trip detection logic)
·

SFI system

·

Inverter with converter assembly

·

ECM

·

Wire harness or connector


Comes on Master Warning:
Comes on 		SAE Code:
P0337
P033517 Crankshaft Position Sensor "A" Circuit Voltage Above Threshold NE signal (crankshaft position sensor) is not input for 2 seconds or more while the engine is running*
(1 trip detection logic)
·

SFI system

·

Inverter with converter assembly

·

ECM

·

Wire harness or connector


Comes on Master Warning:
Comes on 		SAE Code:
P0338
P033523 Crankshaft Position Sensor "A" Signal Stuck Low NE signal (crankshaft position sensor) is not input for 2 seconds or more while the engine is running*
(1 trip detection logic)
·

SFI system

·

Inverter with converter assembly

·

ECM

·

Wire harness or connector


Comes on Master Warning:
Comes on 		SAE Code:
P0337
P033524 Crankshaft Position Sensor "A" Signal Stuck High NE signal (crankshaft position sensor) is not input for 2 seconds or more while the engine is running*
(1 trip detection logic)
·

SFI system

·

Inverter with converter assembly

·

ECM

·

Wire harness or connector


Comes on Master Warning:
Comes on 		SAE Code:
P0338

HINT:

*: When this DTC is stored, vibration may occur when the engine is stopped.


MONITOR DESCRIPTION

If the motor generator control ECU detects a malfunction of the crankshaft position sensor, it will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs P0337 (INF P033516/P033523): Crankshaft Position Signal (Drive Motor "A"/Generator)
P0338 (INF P033517/P033524): Crankshaft Position Signal (Drive Motor "A"/Generator)
Required sensors/components Crankshaft position sensor
Frequency of operation Continuous
Duration TMC's intellectual property
MIL operation Immediately
Sequence of operation None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored TMC's intellectual property
Other conditions belong to TMC's intellectual property -

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property -

COMPONENT OPERATING RANGE

Motor generator control ECU DTC P0337 (INF P033516/P033523) is not detected
DTC P0338 (INF P033517/P033524) is not detected

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>MOTOR GENERATOR CONTROL SYSTEM>UTILITY

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>MOTOR GENERATOR CONTROL SYSTEM>DTC CHECK / CLEAR



1.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

2.

Turn the ignition switch off and wait for 2 minutes or more.

3.

Turn the ignition switch to ON (READY).

4.

With the vehicle stopped, move the shift lever to P.

5.

Depress the accelerator pedal to start the engine.

6.

Depress the accelerator pedal and maintain the engine speed at 1000 rpm or more for 5 seconds or more.

NOTICE:

As the state of charge of the HV battery may be low after driving in fail-safe mode, it will automatically be charged for 5 to 10 minutes with ignition switch ON (READY) after repairs have been performed.


7.

Enter the following menus: Powertrain / Motor Generator / Utility / All Readiness.

8.

Check the DTC judgment result.

HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE, perform driving pattern again.

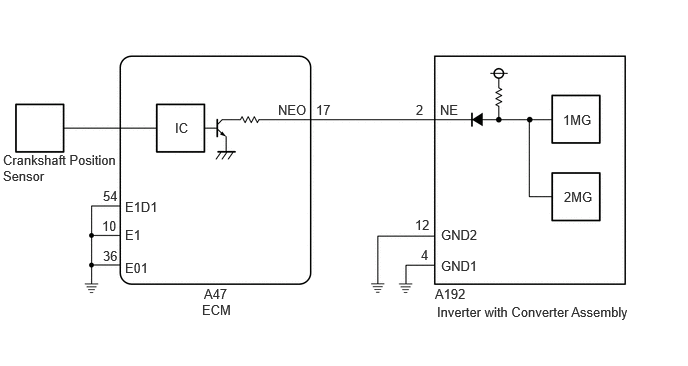

WIRING DIAGRAM

A502870E29
0.031,1.583 1.229,1.958 1.198,0.375 10 false Crankshaft Position Sensor 2.104,3.146 2.646,3.375 0.542,0.229 10 false ECM 1.063,2.271 1.375,2.469 0.313,0.198 10 false 10 1.823,1.25 2.135,1.448 0.313,0.198 10 false IC 2.896,1.063 3.208,1.26 0.313,0.198 10 false NEO 2.125,2.979 2.583,3.177 0.458,0.198 10 false A47 3.292,1.063 3.604,1.26 0.313,0.198 10 false 17 4.333,1.063 4.646,1.26 0.313,0.198 10 false 2 4.583,1.063 4.896,1.26 0.313,0.198 10 false NE 5.865,1.167 6.323,1.365 0.458,0.198 10 false 1MG 5.875,1.969 6.333,2.167 0.458,0.198 10 false 2MG 4.594,2.688 5.052,2.885 0.458,0.198 10 false GND1 4.385,2.573 4.698,2.771 0.313,0.198 10 false 4 4.531,2.979 4.99,3.177 0.458,0.198 10 false A192 4.552,3.167 6.646,3.427 2.094,0.26 10 false Inverter with Converter Assembly 1.302,2.365 1.615,2.563 0.313,0.198 10 false E1 4.594,2.365 5.208,2.563 0.615,0.198 10 false GND2 4.323,2.26 4.604,2.438 0.281,0.177 10 false 12 1.073,1.958 1.385,2.156 0.313,0.198 10 false 54 1.073,2.583 1.385,2.781 0.313,0.198 10 false 36 1.302,2.073 1.917,2.271 0.615,0.198 10 false E1D1 1.302,2.708 1.615,2.906 0.313,0.198 10 false E01

CAUTION / NOTICE / HINT

CAUTION:

Refer to the precautions before inspecting high voltage circuit.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>MOTOR GENERATOR CONTROL SYSTEM>PRECAUTION


NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




HINT:

P033516, P033517, P033523 or P033524 may be stored due to a malfunction which also causes the DTCs in the table below to be stored. In this case, first troubleshoot the output DTCs in the table below. Then, perform a test to attempt to reproduce the problems, and check that no DTCs are output.

Relevant DTC
P06B01C Generator Control Module Position Sensor REF Power Source Circuit Voltage Out of Range
P06D61C Generator Control Module Offset Power Circuit Voltage Out of Range
P0A1B1F Generator Control Module Circuit Intermittent
P1C2B49 Drive Motor "A" Control Module A/D Converter Circuit Internal Electronic Failure
P1C2B1C Drive Motor "A" Control Module A/D Converter Circuit Voltage Out of Range
P1CAD49 Drive Motor "A" Position Sensor Internal Electronic Failure
P1CB038 Drive Motor "A" Position Sensor REF Signal Frequency Incorrect
P313487 Communication Error from Drive Motor "A" to Generator Missing Message
P313483 Communication Error from Drive Motor "A" to Generator Value of Signal Protection Calculation Incorrect
P313486 Communication Error from Drive Motor "A" to Generator Signal Invalid


PROCEDURE

1.CHECK DTC OUTPUT (ENGINE)
a.

Check for DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
SFI system DTCs are not output. A
Any of the following DTCs are also output. B


Relevant DTC
P033511 Crankshaft Position Sensor "A" Circuit Short to Ground
P033515 Crankshaft Position Sensor "A" Circuit Short to Battery or Open
P03352A Crankshaft Position Sensor "A" Signal Stuck in Range
P033531 Crankshaft Position Sensor "A" No Signal


b.

Turn the ignition switch off.



A

2.CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)

B

GO TO DTC CHART (SFI SYSTEM)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


2.CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.
A517697

Check the connection condition of the low voltage connectors of the inverter with converter assembly and the contact pressure of each terminal. Check the terminals for deformation, and the connector for water and foreign matter.

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>ELECTRONIC CIRCUIT INSPECTION PROCEDURE

NOTICE:

Before disconnecting the connector, confirm that it is properly connected by checking that the claws of the lock levers are engaged and that the connector cannot be pulled off.


OK:

- The connector is connected securely.

- The terminals are not deformed and are connected securely.

- No water or foreign matter in the connector.


Result:
Result Proceed to
OK A
NG (The connector is not connected securely.) B
NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) C


HINT:

When connecting the connector, connect it with the lock levers raised. Rotate each lock lever downward and make sure that the connector is securely connected. When a lock lever is fully lowered, a click will be heard as its claw engages. After the click is heard, pull up on the connector to confirm that it is securely connected.




A

3.CHECK CONNECTOR CONNECTION CONDITION (ECM CONNECTOR)

B

CONNECT SECURELY

C

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK CONNECTOR CONNECTION CONDITION (ECM CONNECTOR)
a.
A517721

Check the connector connections and contact pressure of the relevant terminals for the ECM connectors.

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>ELECTRONIC CIRCUIT INSPECTION PROCEDURE

NOTICE:

Before disconnecting the connector, confirm that it is properly connected by checking that the locking claws are engaged and that the connector cannot be pulled off.


OK:

The connectors are connected securely and there are no contact pressure problems.


HINT:

When connecting each connector, connect it with the lock lever raised. Rotate the lock lever downward and make sure that the connector is securely connected. When the lock lever is fully lowered, a click will be heard as its claw engages. After the click is heard, pull up on the connector to confirm that it is securely connected.



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

CONNECT SECURELY

4.CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - ECM)
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

Disconnect the inverter with converter assembly connector.


c.

Disconnect the ECM connector.


d.

Connect the cable to the negative (-) auxiliary battery terminal.


e.

Turn the ignition switch to ON.


f.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
A192-2 (NE) - Body ground Ignition switch ON Below 1 V


NOTICE:

Turning the ignition switch to ON with the inverter with converter assembly connector and ECM connectors disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.



g.

Turn the ignition switch off.


h.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):
Tester Connection Condition Specified Condition
A192-2 (NE) - A47-17 (NEO) Ignition switch off Below 1 Ω


Standard Resistance (Check for Short):
Tester Connection Condition Specified Condition
A192-2 (NE) or A47-17 (NEO) - Body ground and other terminals Ignition switch off 10 kΩ or higher



i.

Disconnect the cable from the negative (-) auxiliary battery terminal.


j.

Reconnect the ECM connector.


k.

Reconnect the inverter with converter assembly connector.


Result:
Proceed to
OK
NG



OK

5.CHECK ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK ECM
a.

Disconnect the ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

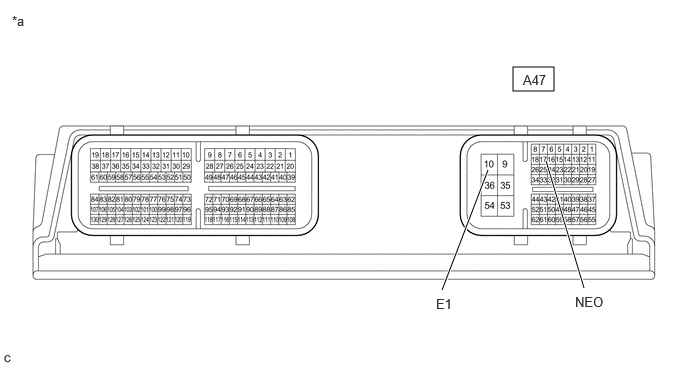

A406952C53
5.344,0.698 5.771,0.948 0.427,0.25 5.083,1.771 4.604,3.021 true 5.688,1.677 6.083,3 true 0.125,0.135 0.438,0.333 0.313,0.198 10 false *a 5.448,0.75 5.906,0.948 0.458,0.198 10 false A47 4.542,3.083 4.854,3.281 0.313,0.198 10 false E1 5.99,3.063 6.448,3.26 0.458,0.198 10 false NEO
*a Component without harness connected
(ECM) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
A47-17 (NEO) - A47-10 (E1) Ignition switch off 10 kΩ or higher



c.

Reconnect the ECM connector.


Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER>REMOVAL


NG

REPLACE ECM

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL
