HYBRID / BATTERY CONTROL  HYBRID CONTROL SYSTEM  P0ADD11  Hybrid/EV Battery Negative Contactor Circuit Short to Ground


DESCRIPTION

Refer to the description for DTC P0AD911.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>P0AD911

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Warning Indicate Note
P0ADD11 Hybrid/EV Battery Negative Contactor Circuit Short to Ground Short to ground in the SMRG circuit:
Primary circuit of SMR (-) is malfunctioning.
(2 trip detection logic)
·

Wire harness or connector

·

HV battery junction block assembly

·

Hybrid vehicle control ECU


Does not come on Master Warning:
Comes on
SAE Code:
P0ADF

CONFIRMATION DRIVING PATTERN

HINT:

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>UTILITY


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for 2 minutes or more.

5.

Turn the ignition switch to ON (READY) and wait for 30 seconds or more.

6.

Turn the ignition switch off and wait for 2 minutes or more.

7.

Turn the ignition switch to ON and turn the GTS on.

8.

Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.

9.

Check the DTC judgment result.

HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE, perform driving pattern again.




CAUTION / NOTICE / HINT

CAUTION:

Refer to the precautions before inspecting high voltage circuit.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PRECAUTION


NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




HINT:

If DTC P0ADD11 is output, the ignition switch cannot be turned to ON (READY).


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BODY GROUND)
a.

Disconnect the hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I278-27 (SMRG) - Body ground Ignition switch off 20.6 to 40.8 Ω



c.

Reconnect the hybrid vehicle control ECU connector.


Result:
Proceed to
OK
NG



OK

NG

2.CHECK CONNECTOR CONNECTION CONDITION (FLOOR WIRE CONNECTOR)
2.CHECK CONNECTOR CONNECTION CONDITION (FLOOR WIRE CONNECTOR)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>P0AA000

Result:
Result Proceed to
OK A
NG (The connector is not connected securely.) B
NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) C



A

3.CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - HV BATTERY JUNCTION BLOCK ASSEMBLY)

B

CONNECT SECURELY

C

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - HV BATTERY JUNCTION BLOCK ASSEMBLY)
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

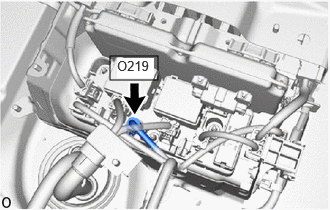

A517683N06
1.146,0.583 1.646,0.833 0.5,0.25 1.219,0.604 1.604,0.813 0.385,0.208 10 true O219

Disconnect the HV battery junction block assembly connector.


c.

Disconnect the hybrid vehicle control ECU connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I278-27 (SMRG) or O219-6 (SMRG) - Body ground and other terminals Ignition switch off 10 kΩ or higher



e.

Reconnect the hybrid vehicle control ECU connector.


f.

Reconnect the HV battery junction block assembly connector.


Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
