HYBRID / BATTERY CONTROL  HYBRID CONTROL SYSTEM  P212012  Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Auxiliary Battery  P212014  Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Ground or Open  P21201C  Throttle/Pedal Position Sensor/Switch "D" Voltage Out of Range  P21201F  Throttle/Pedal Position Sensor/Switch "D" Circuit Intermittent  P212512  Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Auxiliary Battery  P212514  Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Ground or Open  P21251C  Throttle/Pedal Position Sensor/Switch "E" Voltage Out of Range  P21251F  Throttle/Pedal Position Sensor/Switch "E" Circuit Intermittent  P213800  Throttle/Pedal Position Sensor/Switch "D"/" E" Voltage Correlation  P21382B  Throttle/Pedal Position Sensor/Switch "D"/"E" Signal Cross Coupled


DTC SUMMARY

MALFUNCTION DESCRIPTION


The hybrid vehicle control ECU calculates the accelerator pedal opening angle based on the output voltage of the main sensor (VPA) and sub sensor (VPA2) of the accelerator pedal (with sensor) rod assembly. If the output voltage of either the main sensor (VPA) or sub sensor (VPA2) deviates, a malfunction will be detected.

The cause of this malfunction may be one of the following:

·

Accelerator pedal (with sensor) rod assembly malfunction

·

Wire harness or connector malfunction

·

Hybrid vehicle control ECU malfunction



DESCRIPTION

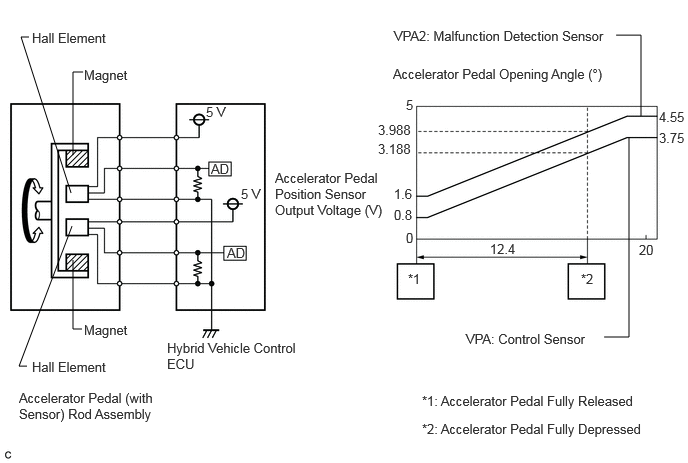

The accelerator pedal position sensor is built into the accelerator pedal (with sensor) rod assembly and detects how much the pedal is depressed. This is a non-contact sensor with Hall elements. There are 2 outputs from the sensor. One is used to detect the accelerator pedal position and the other is used as a confirmation to allow the detection of a malfunction in the sensor itself. Voltage is output from the accelerator pedal position sensor to terminals VPA and VPA2 of the hybrid vehicle control ECU. This voltage varies from 0 to 5 V in accordance with the accelerator pedal position. Terminal VPA2 is primarily used to detect a malfunction in the sensor itself. The hybrid vehicle control ECU determines the current accelerator pedal position and controls the hybrid control system based on signals received by terminals VPA and VPA2.

A222964E96
0.76,2.708 0.76,3.427 0.76,3.427 0.854,3.427 false 0.76,1.615 0.76,0.75 0.76,0.75 0.865,0.75 false 0.74,2.01 0.219,0.385 0.219,0.385 0.302,0.385 false 0.75,2.354 0.198,3.813 0.198,3.813 0.281,3.813 false 6.677,1.208 6.677,0.365 6.677,0.365 6.417,0.365 false 6.552,1.427 6.552,3.51 6.552,3.51 6.292,3.51 false 0.875,0.698 1.417,0.917 0.542,0.219 10 false Magnet 0.333,0.313 1.188,0.479 0.854,0.167 10 false Hall Element 0.333,3.74 1.188,3.906 0.854,0.167 10 false Hall Element 0.875,3.354 1.385,3.521 0.51,0.167 10 false Magnet 1.74,3.542 3.135,3.948 1.396,0.406 10 false Hybrid Vehicle Control ECU 2.865,1.771 4.083,2.313 1.219,0.542 10 false Accelerator Pedal Position Sensor Output Voltage (V) 4.094,0.688 6.313,0.865 2.219,0.177 10 false Accelerator Pedal Opening Angle (°) 4.396,4.094 6.708,4.271 2.313,0.177 10 false *1: Accelerator Pedal Fully Released 4.396,4.385 6.781,4.563 2.385,0.177 10 false *2: Accelerator Pedal Fully Depressed 0.198,4.063 1.635,4.552 1.438,0.49 10 false Accelerator Pedal (with Sensor) Rod Assembly 2.146,1.083 2.396,1.25 0.25,0.167 10 false 5 V 4.229,1.01 4.323,1.177 0.094,0.167 10 false 5 4.229,2.396 4.323,2.563 0.094,0.167 10 false 0 3.938,1.271 4.323,1.438 0.385,0.167 10 false 3.988 3.938,1.469 4.323,1.635 0.385,0.167 10 false 3.188 4.104,1.938 4.323,2.104 0.219,0.167 10 false 1.6 6.865,1.135 7.156,1.302 0.292,0.167 10 false 4.55 6.865,1.354 7.156,1.521 0.292,0.167 10 false 3.75 6.656,2.521 6.833,2.688 0.177,0.167 10 false 20 4.25,2.823 4.427,2.99 0.177,0.167 10 false *1 6.052,2.823 6.229,2.99 0.177,0.167 10 false *2 5.104,2.51 5.469,2.781 0.365,0.271 10 false 12.4 4.104,2.156 4.323,2.323 0.219,0.167 10 false 0.8 2.51,1.938 2.76,2.104 0.25,0.167 10 false 5 V 2.198,1.677 2.531,1.844 0.333,0.167 10 false AD 2.365,2.552 2.698,2.771 0.333,0.219 10 false AD 4.104,0.292 6.573,0.635 2.469,0.344 10 false VPA2: Malfunction Detection Sensor 4.854,3.448 6.385,3.656 1.531,0.208 10 false VPA: Control Sensor

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Warning Indicate Note
P212012 Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Auxiliary Battery Short to +B in the main sensor circuit:
The main sensor voltage is 4.8 V or more for 2 seconds.
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2123
P212014 Throttle/Pedal Position Sensor/Switch "D" Circuit Short to Ground or Open Open or short to ground in the main sensor circuit:
The main sensor voltage is 0.4 V or less for 0.5 seconds.
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2122
P21201C Throttle/Pedal Position Sensor/Switch "D" Voltage Out of Range Internal malfunction in the main sensor:
Main sensor output changes rapidly (detected when there are no circuit malfunctions such as an open or short).
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2121
P21201F Throttle/Pedal Position Sensor/Switch "D" Circuit Intermittent Main sensor circuit wiring malfunction or level is not stable:
Main sensor voltage is 0.4 V or less or 4.8 V or more for a certain period of time.
(Both of the following conditions are met: The main sensor voltage is 0.4 V or less for a certain period of time and 4.8 V or more for a certain period of time.)
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2120
P212512 Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Auxiliary Battery Short to +B in the sub sensor circuit:
Main sensor is normal and sub sensor voltage is 4.8 V or more for 2 seconds.
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2128
P212514 Throttle/Pedal Position Sensor/Switch "E" Circuit Short to Ground or Open Open or short to ground in the sub sensor circuit:
The sub sensor voltage is 1.2 V or less for 0.5 seconds.
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2127
P21251C Throttle/Pedal Position Sensor/Switch "E" Voltage Out of Range Internal malfunction of the sub sensor:
Sub sensor output changes rapidly (detected when there are no circuit malfunctions such as an open or short).
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2126
P21251F Throttle/Pedal Position Sensor/Switch "E" Circuit Intermittent Sub sensor circuit wiring malfunction or level is not stable:
When the main sensor circuit is normal, the sub sensor voltage is 1.2 V or less or 4.8 V or more for a certain period of time.
(Both of the following conditions are met: Sub sensor voltage is 1.2 V or less for a certain period of time, and the main sensor is normal and sub sensor voltage is 4.8 V or more for a certain period of time.)
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2125
P213800 Throttle/Pedal Position Sensor/Switch "D"/" E" Voltage Correlation Difference between the main sensor value and sub sensor value is large.
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2138
P21382B Throttle/Pedal Position Sensor/Switch "D"/"E" Signal Cross Coupled Main or sub sensor circuit wiring malfunction:
The difference in voltage between the main sensor and sub sensor is 0.02 V or less, or a low output malfunction continues in both the main and sub sensors for a certain period of time.
(1 trip detection logic)
·

Wire harness or connector

·

Accelerator pedal (with sensor) rod assembly

·

Hybrid vehicle control ECU


Comes on Master Warning:
Comes on 		SAE Code:
P2138

MONITOR DESCRIPTION

The hybrid vehicle control ECU calculates the differences of the voltage of main accelerator sensor and sub accelerator sensor. If the differences exceed prescribed values, the hybrid vehicle control ECU determines that there is a malfunction in the accelerator sensor circuit. If the hybrid vehicle control ECU detects this malfunction, it will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs P2123 (INF P212012): Accelerator Pedal Position Sensor (APP Sensor) Sensor 1 Range Check (High voltage)
P2122 (INF P212014): Accelerator Pedal Position Sensor (APP Sensor) Sensor 1 Range Check (Low voltage)
P2121 (INF P21201C): Throttle/Pedal Position Sensor/Switch "D" Voltage Out of Range
P2120 (INF P21201F): Accelerator Pedal Position Sensor (APP Sensor) Sensor 1 Range Check (Chattering)
P2128 (INF P212512): Accelerator Pedal Position Sensor (APP Sensor) Sensor 2 Range Check (High voltage)
P2127 (INF P212514): Accelerator Pedal Position Sensor (APP Sensor) Sensor 2 Range Check (Low voltage)
P2126 (INF P21251C): Throttle/Pedal Position Sensor/Switch "E" Voltage Out of Range
P2125 (INF P21251F): Accelerator Pedal Position Sensor (APP Sensor) Sensor 2 Range Check (Chattering)
P2138 (INF P213800): Throttle/Pedal Position Sensor/Switch "D"/"E" Voltage Correlation
P2138 (INF P21382B): Accelerator Pedal Position Sensor (APP Sensor) Correlation
Required sensors/components Throttle/Pedal Position Sensor/Switch
Frequency of operation Continuous
Duration TMC's intellectual property
MIL operation Immediately / 1 driving cycle
Sequence of operation None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored TMC's intellectual property
Other conditions belong to TMC's intellectual property -

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property -

COMPONENT OPERATING RANGE

Hybrid vehicle control ECU DTC P2123 (INF P212012) is not detected
DTC P2122 (INF P212014) is not detected
DTC P2121 (INF P21201C) is not detected
DTC P2120 (INF P21201F) is not detected
DTC P2128 (INF P212512) is not detected
DTC P2127 (INF P212514) is not detected
DTC P2126 (INF P21251C) is not detected
DTC P2125 (INF P21251F) is not detected
DTC P2138 (INF P213800) is not detected
DTC P2138 (INF P21382B) is not detected

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>UTILITY

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>DTC CHECK / CLEAR



1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for 2 minutes or more.

5.

Turn the ignition switch to ON and turn the GTS on.

6.

Wait for approximately 10 seconds with the ignition switch ON (READY) and shift lever in P, then fully depress and release the accelerator pedal several times.[*1]

HINT:

[*1]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.


7.

Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.

8.

Check the DTC judgment result.

HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE, perform the normal judgment procedure again.

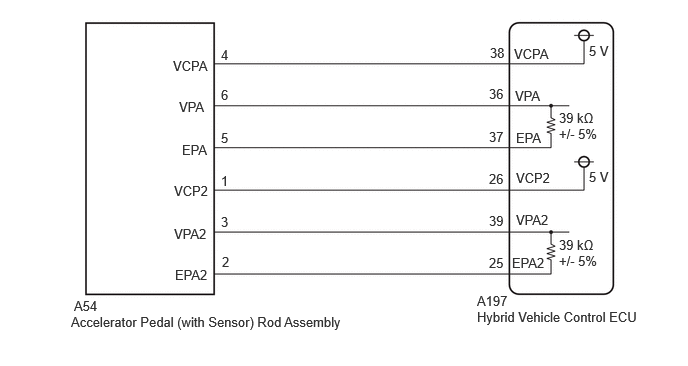

WIRING DIAGRAM

A525279E08
1.802,0.604 2.26,0.781 0.458,0.177 10 false VCPA 1.865,1.031 2.24,1.208 0.375,0.177 10 false VPA 1.896,1.479 2.24,1.667 0.344,0.188 10 false EPA 1.813,1.906 2.188,2.083 0.375,0.177 10 false VCP2 1.813,2.354 2.188,2.531 0.375,0.177 10 false VPA2 1.823,2.781 2.469,3.042 0.646,0.26 10 false EPA2 0.771,3.104 1.104,3.281 0.333,0.177 10 false A54 0.74,3.271 3.875,3.521 3.135,0.25 10 false Accelerator Pedal (with Sensor) Rod Assembly 4.969,3.219 6.823,3.635 1.854,0.417 10 false Hybrid Vehicle Control ECU 4.969,3.052 5.438,3.271 0.469,0.219 10 false A197 5.104,0.469 5.344,0.656 0.24,0.188 10 false 38 5.094,0.896 5.302,1.073 0.208,0.177 10 false 36 5.094,1.344 5.302,1.521 0.208,0.177 10 false 37 5.094,2.219 5.302,2.396 0.208,0.177 10 false 39 5.094,1.781 5.302,1.958 0.208,0.177 10 false 26 5.094,2.656 5.302,2.833 0.208,0.177 10 false 25 2.302,0.906 2.51,1.094 0.208,0.188 10 false 6 2.302,0.49 2.51,0.677 0.208,0.188 10 false 4 2.302,1.354 2.51,1.542 0.208,0.188 10 false 5 2.302,1.802 2.51,1.99 0.208,0.188 10 false 1 2.302,2.229 2.51,2.417 0.208,0.188 10 false 3 2.313,2.646 2.521,2.833 0.208,0.188 10 false 2 5.354,0.479 6.031,0.656 0.677,0.177 10 false VCPA 5.365,0.917 5.958,1.104 0.594,0.188 10 false VPA 5.375,1.354 5.938,1.573 0.563,0.219 10 false EPA 5.375,1.771 6.156,1.948 0.781,0.177 10 false VCP2 5.375,2.208 6.167,2.406 0.792,0.198 10 false VPA2 5.333,2.656 6,2.906 0.667,0.25 10 false EPA2 5.823,1.146 6.271,1.5 0.448,0.354 10 false 39 kΩ +/- 5% 5.823,2.469 6.292,2.833 0.469,0.365 10 false 39 kΩ +/- 5% 6.135,1.76 6.427,1.99 0.292,0.229 10 false 5 V 6.135,0.448 6.375,0.656 0.24,0.208 10 false 5 V

PROCEDURE

1.READ VALUE USING GTS (ACCELERATOR POSITION SENSOR NO. 1 VOLTAGE %, ACCELERATOR POSITION SENSOR NO. 2 VOLTAGE %)
a.

Read the Data List.

Powertrain > Hybrid Control > Data List
Tester Display
Accelerator Position Sensor No.1 Voltage %
Accelerator Position Sensor No.2 Voltage %
50003 397 23,24
Standard:
Tester Display Accelerator Pedal Condition Specified Condition
Accelerator Position Sensor No. 1 Voltage % Not depressed 10 to 22%
Fully depressed 52 to 90%
Not depressed → Fully depressed → Not depressed (Accelerator pedal should be operated slowly) Value changes progressively
Accelerator Position Sensor No. 2 Voltage % Not depressed 24 to 40%
Fully depressed 68 to 99%
Not depressed → Fully depressed → Not depressed (Accelerator pedal should be operated slowly) Value changes progressively



b.

Turn the ignition switch off.


Result:
Proceed to
OK
NG



OK

CHECK FOR INTERMITTENT PROBLEMS

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.CHECK CONNECTOR CONNECTION CONDITION (ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY CONNECTOR)
2.CHECK CONNECTOR CONNECTION CONDITION (ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY CONNECTOR)
a.
A532110

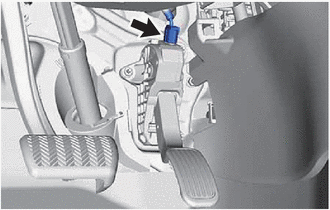

Check the connector connections and contact pressure of the relevant terminals for the accelerator pedal (with sensor) rod assembly connector.

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>ELECTRONIC CIRCUIT INSPECTION PROCEDURE

OK:

The connectors are connected securely and there are no contact pressure problems.



Result:
Proceed to
OK
NG



OK

3.CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

NG

CONNECT SECURELY

3.CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>P056014

Result:
Proceed to
OK
NG



OK

4.CHECK HYBRID VEHICLE CONTROL ECU (CHECK VOLTAGE)

NG

CONNECT SECURELY

4.CHECK HYBRID VEHICLE CONTROL ECU (CHECK VOLTAGE)
a.

Disconnect the accelerator pedal (with sensor) rod assembly connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
A54-4 (VCPA) - A54-5 (EPA) Ignition switch ON 4.5 to 5.5 V
A54-1 (VCP2) - A54-2 (EPA2) Ignition switch ON 4.5 to 5.5 V



d.

Turn the ignition switch off.


e.

Reconnect the accelerator pedal (with sensor) rod assembly connector.


Result:
Proceed to
OK
NG



OK

5.CHECK HYBRID VEHICLE CONTROL ECU (CHECK RESISTANCE)

NG

6.CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY)
5.CHECK HYBRID VEHICLE CONTROL ECU (CHECK RESISTANCE)
a.

Disconnect the accelerator pedal (with sensor) rod assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A54-6 (VPA) - A54-5 (EPA) Ignition switch off 36.60 to 41.61 kΩ
A54-3 (VPA2) - A54-2 (EPA2) Ignition switch off 36.60 to 41.61 kΩ



c.

Reconnect the accelerator pedal (with sensor) rod assembly connector.


Result:
Proceed to
OK
NG



OK

REPLACE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>ACCELERATOR PEDAL SENSOR>REMOVAL


NG

7.CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY)
6.CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY)
a.

Disconnect the hybrid vehicle control ECU connector.


b.

Disconnect the accelerator pedal (with sensor) rod assembly connector.


c.

Turn the ignition switch to ON.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
A197-38 (VCPA) - Body ground Ignition switch ON Below 1 V
A197-37 (EPA) - Body ground Ignition switch ON Below 1 V
A197-26 (VCP2) - Body ground Ignition switch ON Below 1 V
A197-25 (EPA2) - Body ground Ignition switch ON Below 1 V


NOTICE:

Turning the ignition switch to ON with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.



e.

Turn the ignition switch off.


f.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):
Tester Connection Condition Specified Condition
A197-38 (VCPA) - A54-4 (VCPA) Ignition switch off Below 1 Ω
A197-37 (EPA) - A54-5 (EPA) Ignition switch off Below 1 Ω
A197-26 (VCP2) - A54-1 (VCP2) Ignition switch off Below 1 Ω
A197-25 (EPA2) - A54-2 (EPA2) Ignition switch off Below 1 Ω


Standard Resistance (Check for Short):
Tester Connection Condition Specified Condition
A197-38 (VCPA) or A54-4 (VCPA) - Body ground and other terminals Ignition switch off 10 kΩ or higher
A197-37 (EPA) or A54-5 (EPA) - Body ground and other terminals Ignition switch off 10 kΩ or higher
A197-26 (VCP2) or A54-1 (VCP2) - Body ground and other terminals Ignition switch off 10 kΩ or higher
A197-25 (EPA2) or A54-2 (EPA2) - Body ground and other terminals Ignition switch off 10 kΩ or higher



g.

Reconnect the accelerator pedal (with sensor) rod assembly connector.


h.

Reconnect the hybrid vehicle control ECU connector.


Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY)
a.

Disconnect the hybrid vehicle control ECU connector.


b.

Disconnect the accelerator pedal (with sensor) rod assembly connector.


c.

Turn the ignition switch to ON.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
A197-36 (VPA) - Body ground Ignition switch ON Below 1 V
A197-39 (VPA2) - Body ground Ignition switch ON Below 1 V
A197-37 (EPA) - Body ground Ignition switch ON Below 1 V
A197-25 (EPA2) - Body ground Ignition switch ON Below 1 V


NOTICE:

Turning the ignition switch to ON with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.



e.

Turn the ignition switch off.


f.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):
Tester Connection Condition Specified Condition
A197-36 (VPA) - A54-6 (VPA) Ignition switch off Below 1 Ω
A197-37 (EPA) - A54-5 (EPA) Ignition switch off Below 1 Ω
A197-39 (VPA2) - A54-3 (VPA2) Ignition switch off Below 1 Ω
A197-25 (EPA2) - A54-2 (EPA2) Ignition switch off Below 1 Ω


Standard Resistance (Check for Short):
Tester Connection Condition Specified Condition
A197-36 (VPA) or A54-6 (VPA) - Body ground and other terminals Ignition switch off 10 kΩ or higher
A197-37 (EPA) or A54-5 (EPA) - Body ground and other terminals Ignition switch off 10 kΩ or higher
A197-39 (VPA2) or A54-3 (VPA2) - Body ground and other terminals Ignition switch off 10 kΩ or higher
A197-25 (EPA2) or A54-2 (EPA2) - Body ground and other terminals Ignition switch off 10 kΩ or higher



g.

Reconnect the accelerator pedal (with sensor) rod assembly connector.


h.

Reconnect the hybrid vehicle control ECU connector.


Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
