RM38T0EC _51 Engine / Hybrid System _144957 HYBRID / BATTERY CONTROL _0604239 ACCELERATOR PEDAL SENSOR A

HYBRID / BATTERY CONTROL ACCELERATOR PEDAL SENSOR REMOVAL

CAUTION / NOTICE / HINT

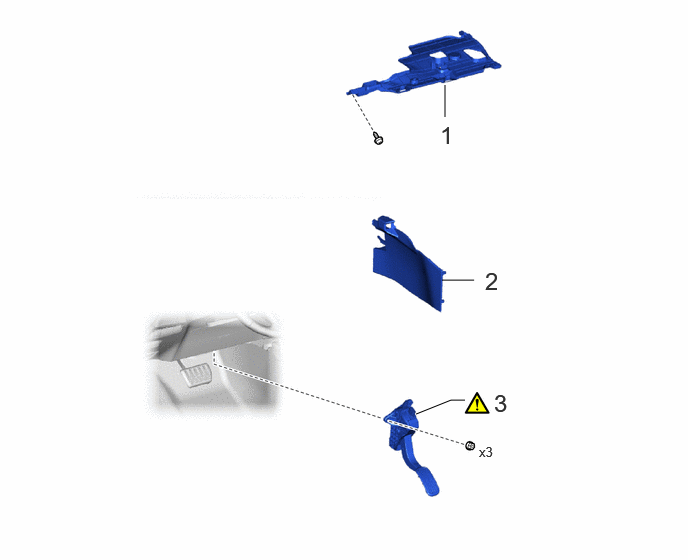

COMPONENTS (REMOVAL)

4.635,1.219 4.635,0.885 false 4.604,2.917 4.938,2.917 false 4.333,4.313 4.698,4.167 4.698,4.167 4.844,4.167 false 4.583,1.26 4.865,1.615 0.281,0.354 18 false 1 5.052,2.781 5.333,3.135 0.281,0.354 18 false 2 5.146,4.052 5.427,4.406 0.281,0.354 18 false 3 4.99,4.625 5.302,4.823 0.313,0.198 10 false x3

Procedure		Part Name Code
1	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
2	FRONT NO. 1 CONSOLE BOX INSERT	58816D	-	-	-
3	ACCELERATOR PEDAL SENSOR ASSEMBLY	78110K	(202307,999999,_51,_144957,_0604239,RM100000002BTR0_01_0010,)	-	-

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0060,

Hide Display 58816D 2.REMOVE FRONT NO. 1 CONSOLE BOX INSERT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0051,

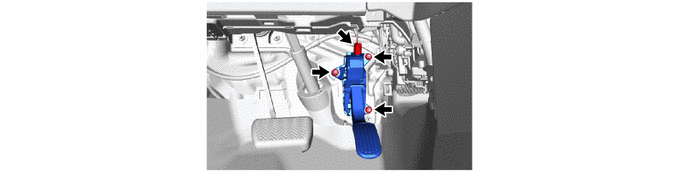

Hide Display 78110K 3.REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY

NOTICE:: ·

Avoid physical shock to the accelerator pedal sensor assembly.

·

Do not disassemble the accelerator pedal sensor assembly.

·

The accelerator pedal sensor assembly does not require lubrication.

·

Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.
