HYBRID / BATTERY CONTROL HYBRID CONTROL SYSTEM P1CE213 PCU Interlock Circuit Open P1CE292 PCU Interlock Performance or Incorrect Operation
DTC SUMMARY
MALFUNCTION DESCRIPTION
The hybrid vehicle control ECU detects that a safety device (interlock) is operated or that there is an open circuit in the detection circuit. (Even if an open circuit occurs while the vehicle is stopped, the system determines that the safety device was operated.)
The cause of this malfunction may be one of the following:
Inverter with converter assembly malfunction
MG ECU malfunction
Inverter with converter assembly malfunction
CAN communication error between the MG ECU and hybrid vehicle control ECU
INSPECTION DESCRIPTION

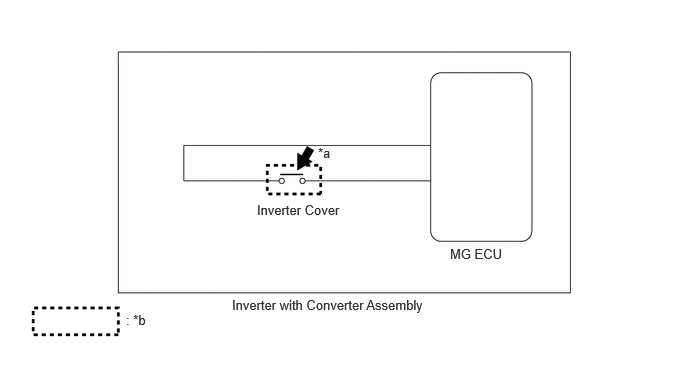

| System Diagram Location | Inspection Content | Reason |
|---|---|---|
| *a | Check whether the safety device (interlock) is connected securely and installed properly (inverter cover). | DTC output due to improper connection or forgetting to install parts. |
| *b | Inspect the detection circuit. | DTC output due to an open circuit or improper connection (dirt, foreign matter, etc.). |
DESCRIPTION
Refer to the description for DTC P0A0A13.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Warning Indicate | Note |
|---|---|---|---|---|---|---|
| P1CE213 | PCU Interlock Circuit Open | Interlock signal line opens while the vehicle is being driven (at 5 km/h (3 mph) or more)
(1 trip detection logic) |
·
Inverter cover ·
Inverter with converter assembly |
Does not come on | Master Warning:
Comes on |
SAE Code:
P0A0D |
| P1CE292 | PCU Interlock Performance or Incorrect Operation | Either of the following conditions is met:
·
With the vehicle stopped, the inverter cover with a safety device was removed. ·
With the vehicle stopped, the interlock signal line became open. (1 trip detection logic) |
·
Inverter cover ·
Inverter with converter assembly |
Does not come on | Master Warning:
Comes on |
SAE Code:
P0A0D |
CONFIRMATION DRIVING PATTERN
- HINT:
-
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON and turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for 2 minutes or more.
Turn the ignition switch to ON and turn the GTS on.
With ignition switch ON and wait for 5 seconds or more.
Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.
Check the DTC judgment result.
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·If the judgment result shows INCOMPLETE, perform driving pattern again.

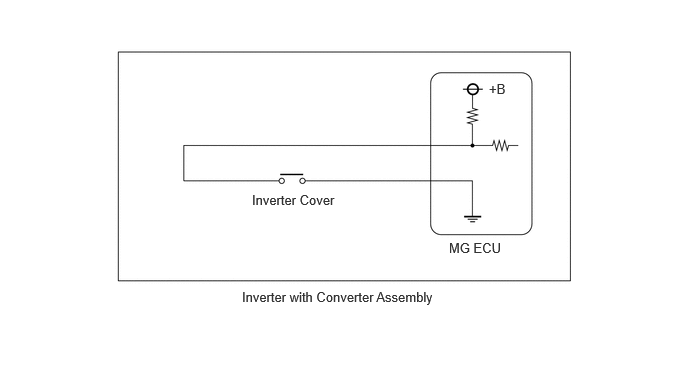

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- CAUTION:
-
Refer to the precautions before inspecting high voltage circuit.
- NOTICE:
- ·
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.
·As interlock circuit DTCs or other DTCs may be stored when the ignition switch is turned to ON in the following procedure, make sure to clear the DTCs after inspection.
·After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
·When disconnecting and reconnecting the auxiliary battery
- HINT:
-
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
- HINT:
- ·
P1CE213 or P1CE292 may be output as a result of the malfunction indicated by the DTCs in table below.
(a)The chart above is listed in inspection order of priority.
(b)Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)
Malfunction Content System Relevant DTC Microcomputer malfunction Hybrid Control System P060647 Hybrid/EV Powertrain Control Module Processor Watchdog / Safety MCU Failure P060687 Hybrid/EV Powertrain Control Module Processor to Monitoring Processor Missing Message P060A47 Hybrid/EV Powertrain Control Module Monitoring Processor Watchdog / Safety MCU Failure P060A87 Hybrid/EV Powertrain Control Module Processor from Monitoring Processor Missing Message P060B49 Hybrid/EV Powertrain Control Module A/D Processing Internal Electronic Failure P060B71 Hybrid/EV Powertrain Control Module A/D Processing Actuator Stuck P060B1C Hybrid/EV Powertrain Control Module A/D Processing Voltage Out of Range P1C9E9F Hybrid/EV System Reset Stuck Off P1CE349 Hybrid/EV Powertrain Control Module Monitoring Processor A/D Processing Internal Electronic Failure P1CE371 Hybrid/EV Powertrain Control Module Monitoring Processor A/D Processing Actuator Stuck P1CE31C Hybrid/EV Powertrain Control Module Monitoring Processor A/D Processing Voltage Out of Range P060A45 Hybrid/EV Powertrain Control Module Monitoring Processor Program Memory Failure P060A44 Hybrid/EV Powertrain Control Module Monitoring Processor Data Memory Failure P060A29 Hybrid/EV Powertrain Control Module Monitoring Processor Signal Invalid P060A49 Hybrid/EV Powertrain Control Module Monitoring Processor Internal Electronic Failure P0A1B49 Drive Motor "A" Control Module Internal Electronic Failure Motor Generator Control System P0A1B1F Generator Control Module Circuit Intermittent Power source circuit malfunction Hybrid Control System P06881F ECM/PCM Power Relay Sense Circuit Intermittent Communication system malfunction Hybrid Control System U117E87 Lost Communication with Drive Motor Control Module "A" (ch4) Missing Message
PROCEDURE
- Result:
Proceed to NEXT
NEXT
Check if DTCs are output.
- Powertrain > Hybrid Control > Trouble Codes
- 50001 397
- Result:
Result Proceed to P1CE213 or P1CE292 is output again. A Neither P1CE213 or P1CE292 is output again. B
- HINT:
-
Check if the same DTC is output.
Turn the ignition switch off.
A
B
- CAUTION:
-
Be sure to wear insulated gloves.
Check that the service plug grip is not installed.
- NOTICE:
-
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.

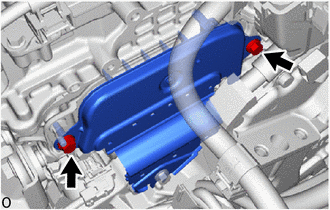

Check if the inverter cover of the inverter with converter assembly is installed correctly.
- OK:
The inverter cover is installed correctly.
- Result:
Proceed to OK NG
OK
NG
- CAUTION:
-
Be sure to wear insulated gloves.
Check that the service plug grip is not installed.
- NOTICE:
-
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.
Remove the inverter cover from the inverter with converter assembly.

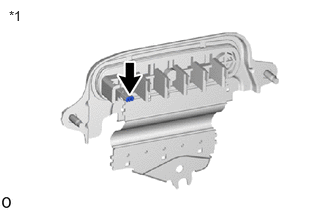

| *1 | Inverter Cover |
Check the condition of the inverter cover interlock.
- OK:
Dirt or foreign matter has not entered the connectors and there is no evidence of contamination.
Install the inverter cover.
- Result:
Proceed to OK NG
OK
NG
