M20F-FXS, M20G-FXS ENGINE CONTROL  ECM  INSTALLATION


CAUTION / NOTICE / HINT

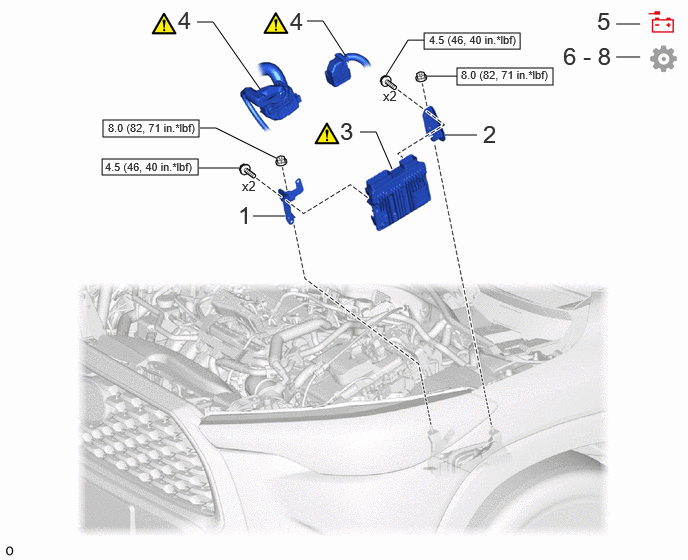

COMPONENTS (INSTALLATION)
A522745N03
4.417,0.344 5.417,0.51 1,0.167 4.76,0.708 5.76,0.885 1,0.177 1.073,1.25 2.073,1.427 1,0.177 1.063,1.656 2.063,1.823 1,0.167 4.635,1.406 4.969,1.406 false 6.417,0.25 6.667,0.25 false 6.417,0.594 6.667,0.594 false 2.635,2.25 2.969,2.25 false 3.198,0.219 3.365,0.219 3.365,0.219 3.594,0.573 false 3.75,1.375 3.917,1.375 3.917,1.375 4.083,1.76 false 4.448,0.792 4.76,0.792 false 2.083,1.333 2.25,1.333 2.25,1.333 2.875,1.646 false 4.417,0.417 4.25,0.417 4.25,0.417 4.01,0.802 false 2.073,1.75 2.49,1.75 false 2.052,0.229 2.219,0.229 2.219,0.229 2.708,0.927 false 2.479,2.094 2.76,2.448 0.281,0.354 18 false 1 3.542,1.219 3.823,1.573 0.281,0.354 18 false 3 3.021,0.073 3.302,0.427 0.281,0.354 18 false 4 1.854,0.063 2.135,0.417 0.281,0.354 18 false 4 5.031,1.25 5.313,1.604 0.281,0.354 18 false 2 6.219,0.073 6.5,0.427 0.281,0.354 18 false 5 5.865,0.438 6.49,0.771 0.625,0.333 18 false 6 - 8 3.99,0.917 4.302,1.115 0.313,0.198 10 false x2 2.521,1.854 2.833,2.052 0.313,0.198 10 false x2 4.802,0.708 5.938,0.917 1.135,0.208 8 false 8.0 (82, 71 in.*lbf) 4.469,0.344 5.635,0.552 1.167,0.208 8 false 4.5 (46, 40 in.*lbf) 1.125,1.26 2.26,1.469 1.135,0.208 8 false 8.0 (82, 71 in.*lbf) 1.094,1.667 2.26,1.875 1.167,0.208 8 false 4.5 (46, 40 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 NO. 1 ECM BRACKET 89667E - - -
2 NO. 2 ECM BRACKET 89668 - - -
3 ECM 89661 (Click here) - -
4 ENGINE WIRE 82121 (Click here) - -
5 CABLE TO NEGATIVE BATTERY TERMINAL - - - -
6 ECU CONFIGURATION - - - (Click here)
7 UPDATE ECU SECURITY KEY - - - (Click here)
8 PERFORM INITIALIZATION - - - (Click here)

V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -

NOTICE:
·

After replacing the ECM, make sure to perform vehicle identification number (vin) or frame number registration, ECU configuration and update ECU security key.

·

After performing the perform vehicle identification number (vin) or frame numberregistration, ECU configuration procedure and update ECU security key procedure, make sure to perform theinitialization procedure for when the cable has been disconnected and reconnected tothe negative (-) auxiliary battery terminal.



PROCEDURE

Hide 89667E 1.INSTALL NO. 1 ECM BRACKET

Torque:
4.5 N*m (46 kgf*cm, 40 in.*lbf)

Hide 89668 2.INSTALL NO. 2 ECM BRACKET

Torque:
4.5 N*m (46 kgf*cm, 40 in.*lbf)

Hide 89661 3.INSTALL ECM

Z101186

NOTICE:

If the ECM has been struck or dropped, replace it.



Torque:
8.0 N*m (82 kgf*cm, 71 in.*lbf)

Hide 82121 4.INSTALL ENGINE WIRE

a.
A522963N01
0.156,0.063 0.438,0.417 0.281,0.354 18 false i 3.99,0.083 4.271,0.438 0.281,0.354 18 false ii

i.

Engage the clamp.


ii.

Connect the 2 ECM connectors and lower the 2 lock levers.

NOTICE:
·

When connecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.

·

Be sure to securely connect the ECM connectors.
