M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  PRECAUTION


WHEN USING GTS


CAUTION:

Observe the following items for safety reasons:

·

Before using the GTS, read the instruction manual.

·
A371909

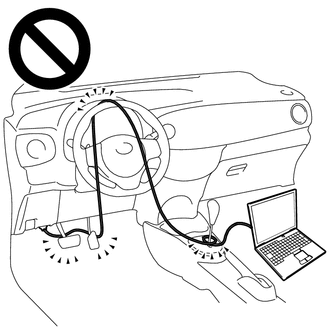

Prevent the GTS cable from being caught on the pedals, shift lever or steering wheel when driving with the GTS connected to the vehicle.

·
A356953

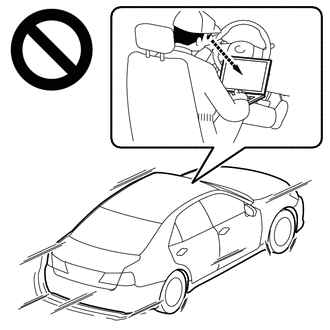

When driving the vehicle for testing purposes using the GTS, 2 persons are required. One drives the vehicle, and the other operates the GTS.




PRECAUTIONS FOR INSPECTING HYBRID CONTROL SYSTEM


a.

Refer to Hybrid Control System.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PRECAUTION



NOTICE FOR HYBRID CONTROL SYSTEM ACTIVATION


a.

Refer to Hybrid Control System.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PRECAUTION
