RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604218 CAMSHAFT TIMING CONTROL MOTOR A

M20F-FXS, M20G-FXS ENGINE CONTROL  CAMSHAFT TIMING CONTROL MOTOR  INSTALLATION


CAUTION / NOTICE / HINT

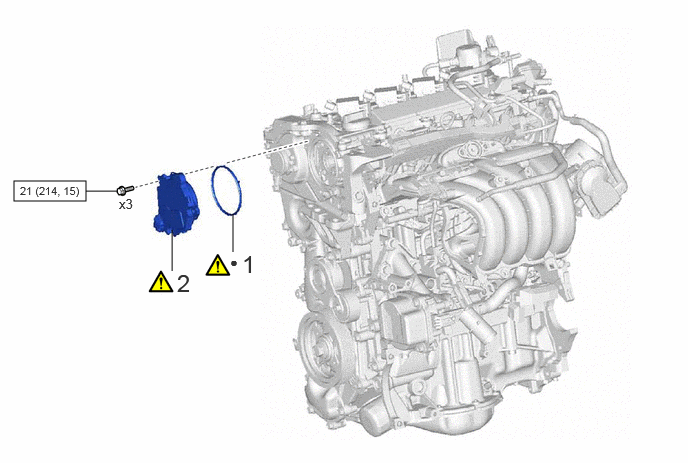

COMPONENTS (INSTALLATION)
A485097N01
0.146,1.885 0.896,2.094 0.75,0.208 2.427,2.625 2.427,2.229 false 1.792,2.823 1.792,2.396 false 0.896,1.99 1.229,1.99 false 2.396,2.646 2.708,2.896 0.313,0.25 10 false ● 1.24,2.042 1.729,2.365 0.49,0.323 10 false x3 0.208,1.917 0.979,2.406 0.771,0.49 8 false 21 (214, 15) 2.521,2.604 2.865,2.917 0.344,0.313 18 false 1 1.844,2.802 2.198,3.104 0.354,0.302 18 false 2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CAM TIMING CONTROL MOTOR O-RING 13090E (Click here) - -
2 CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY 13090D (Click here) - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque ● No Reusable parts

A524648N01
1.917,0.552 2.396,0.552 false 6.531,0.208 6.802,0.208 false 6.542,0.573 6.844,0.573 false 1.719,0.396 2.271,0.75 0.552,0.354 18 false 3 6.354,0.052 6.906,0.406 0.552,0.354 18 false 5 6.365,0.417 6.917,0.771 0.552,0.354 18 false 4

Procedure Part Name Code
Z101186

Z101188

Z101187

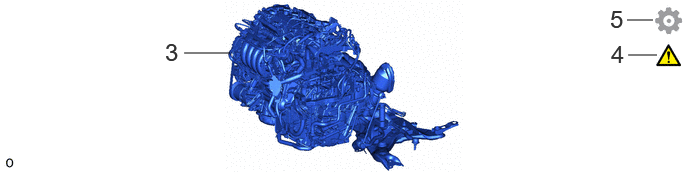

3 ENGINE ASSEMBLY WITH TRANSAXLE - - - -
4 INSPECT FOR ENGINE OIL LEAK - (Click here) - -
5 PERFORM INITIALIZATION - - - (Click here)

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 13090E 1.INSTALL CAM TIMING CONTROL MOTOR O-RING

a.
A466747C02
4.021,0.594 4.417,0.865 true 3.292,1.031 3.688,1.302 true 3.729,1.24 4.042,1.396 0.313,0.156 10 true *a 4.458,0.792 4.771,0.948 0.313,0.156 10 true *b 0.448,0.104 0.729,0.458 0.281,0.354 18 false i
*a Protrusion *b Cutout


i.

Install a new cam timing control motor O-ring to the No. 2 timing chain cover assembly with the protrusion of the cam timing control motor O-ring oriented as shown in the illustration.



Hide 13090D 2.INSTALL CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

Z101186

HINT:

Perform "Inspection After Repair" after removing and installing, or replacing the cam timing control motor with EDU assembly.

Click here(Click here)



a.
A466748C02
2.052,0.813 1.51,1.438 1.51,1.438 2.302,1.094 true 4.896,1.115 4.188,0.75 4.188,0.75 5.104,1.01 true 6.344,1.083 6.594,0.604 6.594,0.604 6.188,0.896 true 4.5,1.229 5,1.74 5,1.74 5.333,0.833 true 5.74,0.792 5.646,2.021 5.646,2.021 6.604,1.333 true 1.281,1.385 1.51,1.573 0.229,0.188 10 true *a 4.01,0.667 4.323,0.823 0.313,0.156 10 false *b 6.625,0.542 6.938,0.698 0.313,0.156 10 true *a 4.948,1.76 5.26,1.917 0.313,0.156 10 false *d 5.583,2.052 5.896,2.208 0.313,0.156 10 false *c 0.521,0.115 0.802,0.469 0.281,0.354 18 false i 4.302,0.115 4.583,0.469 0.281,0.354 18 false ii 0.417,2.167 1.042,2.573 0.625,0.406 18 false iii, iv
*a Cutout *b Joint
*c Knock Pin *d Pin Hole


i.

Turn the cutout of the camshaft timing gear assembly eccentric shaft counterclockwise by hand, and set it to the maximum retard angle position.

HINT:
·

If a camshaft lobe is opening a valve, the eccentric shaft will be difficult to turn.

·

When the cutout of the camshaft timing gear assembly eccentric shaft cannot be turned any farther, it is set to the maximum retard angle.




ii.

Install the cam timing control motor with EDU assembly to the No. 2 timing chain cover assembly.

NOTICE:
·

When installing, align the joints of the cam timing control motor with EDU assembly with the cutouts of the camshaft timing gear assembly eccentric shaft.

·

Align the pin holes of the cam timing control motor with EDU assembly with the knock pins of the No. 2 timing chain cover assembly when installing the cam timing control motor with EDU assembly.

·

Make sure the contact surface of the cam timing control motor with EDU assembly (the surface that contacts the No. 2 timing chain cover assembly) is free of foreign matter.

·

When installing the cam timing control motor with EDU assembly, do not use excessive force.

·

If the cam timing control motor with EDU assembly has been struck or dropped, replace it.

·

Do not disassemble the cam timing control motor with EDU assembly. If disassembled, replace it.




iii.

Install the 3 bolts.

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)


iv.

Connect the cam timing control motor with EDU assembly connector.



Hide 4.INSPECT FOR ENGINE OIL LEAK

Z101186

Click here(Click here)

Hide 5.PERFORM INITIALIZATION

a.

Perform "Inspection After Repair" after removing and installing, or replacing the cam timing control motor with EDU assembly.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION
