RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604216 CAMSHAFT OIL CONTROL VALVE A

M20F-FXS, M20G-FXS ENGINE CONTROL  CAMSHAFT OIL CONTROL VALVE  INSTALLATION


CAUTION / NOTICE / HINT

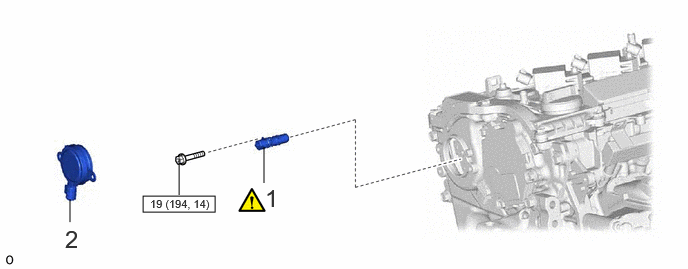

COMPONENTS (INSTALLATION)
A524642N03
1.49,2.042 2.24,2.208 0.75,0.167 0.729,2.313 0.729,2.073 false 2.75,1.906 2.75,1.531 false 1.865,2.031 1.865,1.656 false 2.76,1.917 3.042,2.271 0.281,0.354 18 false 1 0.677,2.344 1,2.698 0.323,0.354 18 false 2 1.563,2.052 2.323,2.281 0.76,0.229 8 false 19 (194, 14)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) 135A0B (Click here) - -
2 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY 15370 - - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 135A0B 1.INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

a.

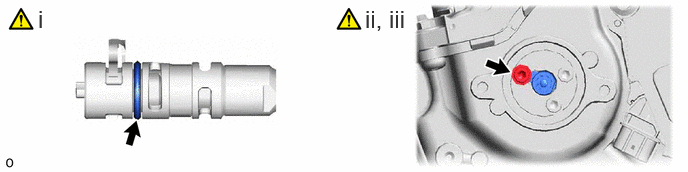

A524644N01
0.396,0.052 0.719,0.469 0.323,0.417 18 false i 3.802,0.052 4.438,0.531 0.635,0.479 18 false ii, iii

i.

Apply a light coat of engine oil to the O-ring of the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly).

NOTICE:

If reusing the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly), be sure to inspect the O-ring.



ii.

Temporarily install the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) to the camshaft timing exhaust gear assembly.

NOTICE:

If the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) has been struck or dropped, replace it.



iii.

Using a 5 mm hexagon socket wrench, install the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) with the bolt.

Torque:
19 N*m (194 kgf*cm, 14 ft.*lbf)
