M20F-FXS, M20G-FXS COOLING THERMOSTAT INSTALLATION
CAUTION / NOTICE / HINT

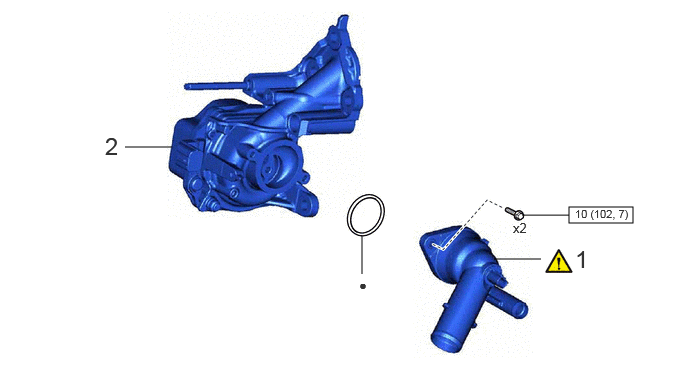

COMPONENTS (INSTALLATION)
5.927,2.156 6.594,2.323
0.667,0.167
3.771,2.458 3.771,2.854
false
1.302,1.531 1.792,1.531
false
5.146,2.698 5.635,2.698
false
5.438,2.24 5.927,2.24
false
3.74,2.885 3.896,3.083
0.156,0.198
10
false
●
5.99,2.552 6.271,2.906
0.281,0.354
18
false
1
1.094,1.375 1.375,1.729
0.281,0.354
18
false
2
5.99,2.156 6.969,2.313
0.979,0.156
8
false
10 (102, 7)
5.344,2.292 5.635,2.542
0.292,0.25
10
false
x2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY | 16031 | ( 202307,999999,_51,_144716,_0603002,RM100000002BNMJ_01_0004,)
|
- | - |
| 2 | ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) | 16032 | - | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
CAUTION / NOTICE / HINT
- NOTICE:
-
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
16031

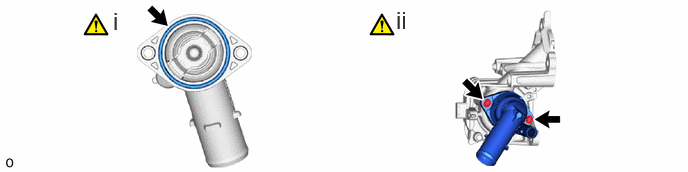

1.INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
a.
1.177,0.073 1.458,0.427
0.281,0.354
18
false
i
4.125,0.063 4.406,0.417
0.281,0.354
18
false
ii
i.
Install a new gasket to the water inlet with thermostat sub-assembly.
- HINT:
-
Be sure to clean the contact surfaces.
ii.
Using an 8 mm socket wrench, install the water inlet with thermostat sub-assembly with the 2 bolts.
- Torque:
- 10 N*m (102 kgf*cm, 7 ft.*lbf)
16032
2.INSTALL ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)
