NAVIGATION / MULTI INFO DISPLAY NAVIGATION SYSTEM(Production Date from 2023/04) Even though Headlights are Turned on Head-unit does not Dim the Display

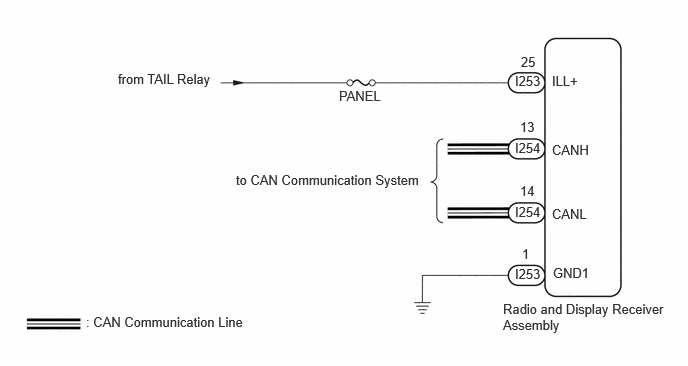

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
-
Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.
PROCEDURE
Select settings icon from the screen.
Select "Display" from the "Settings" menu screen.
Select "Screen" to display the settings screen.
Check that the "Automatic" setting on the display adjustment screen is set to on.
- Result:
Result Proceed to "Automatic" setting is set to off. A "Automatic" setting is set to on. B
A
B
Check the rheostat setting.
- Result:
Result Proceed to Set to maximum brightness A Set to other than maximum brightness B
A
B
Select "Function Check/Setting" from the "Service Menu" screen.
Select "Vehicle Signal" from the "Function Check/Setting I" screen.
Operate the light control switch and check that the display changes between ON and OFF accordingly.
- OK:
TAIL Condition Display Light control switch OFF OFF Light control switch TAIL or HEAD ON
ADIM/TCAN Condition Display Ignition switch ON, Light control switch TAIL or HEAD, Automatic light control sensor is covered by hand Dimmed Ignition switch ON, Light control switch TAIL or HEAD, Automatic light control sensor is not covered by hand Not dimmed
- HINT:
-
This display is updated once per second.
- Result:
Result Proceed to Normal A TAIL signal malfunction B ADIM/TCAN signal malfunction C
A
B
C
for HEV Model: Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING202307,999999,_57,_104409,_0606038,RM100000002C0LC,
for Gasoline Model: Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING202307,202405,_57,_104409,_0605911,RM100000002C07Y,202405,999999,_57,_104409,_0605911,RM100000002NU3H,
Disconnect the I253 radio and display receiver assembly connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition I253-25 (ILL+) - Body ground Ignition switch ON, Light control switch TAIL or HEAD 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Disconnect the I253 radio and display receiver assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition I253-1 (GND1) - Body ground Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
