RM38T0EC _58 Vehicle Interior _104612 HEATING / AIR CONDITIONING _0500016 FRONT EVAPORATOR TEMPERATURE SENSOR A

HEATING / AIR CONDITIONING  FRONT EVAPORATOR TEMPERATURE SENSOR  REMOVAL


CAUTION / NOTICE / HINT

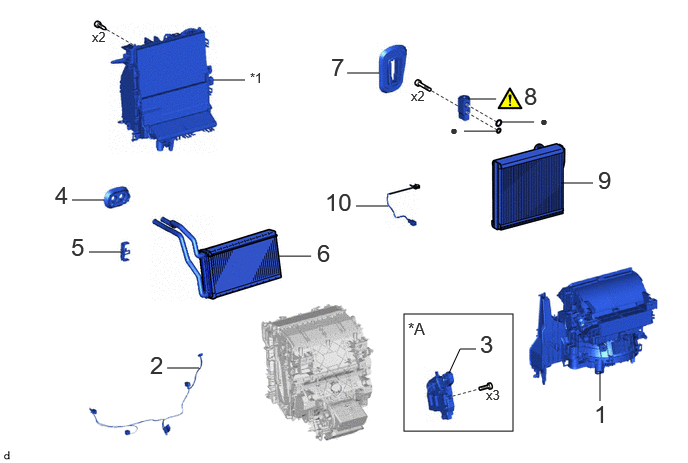

COMPONENTS (REMOVAL)
I117819N01
4.208,3.271 5.344,4.49 1.135,1.219 2.219,0.833 2.552,0.833 false 0.75,2.083 1.083,2.083 false 0.927,2.625 1.26,2.625 false 2.906,2.667 3.24,2.667 false 3.708,2.146 4.042,2.146 false 3.615,0.76 3.948,0.76 false 5.844,1.906 6.177,1.906 false 1.74,3.833 2.073,3.833 false 4.677,3.885 4.792,3.635 4.792,3.635 4.958,3.635 false 6.25,3.865 6.25,4.177 false 4.875,1.031 5.167,1.031 false 5.229,1.271 5.563,1.271 false 4.833,1.365 5.167,1.365 false 5.625,1.177 5.781,1.375 0.156,0.198 10 false ● 4.688,1.271 4.844,1.469 0.156,0.198 10 false ● 2.604,0.729 2.917,0.927 0.313,0.198 10 false *1 6.188,4.167 6.469,4.521 0.281,0.354 18 false 1 1.563,3.656 1.844,4.01 0.281,0.354 18 false 2 5,3.438 5.281,3.792 0.281,0.354 18 false 3 0.573,1.885 0.854,2.24 0.281,0.354 18 false 4 0.74,2.427 1.021,2.781 0.281,0.354 18 false 5 3.302,2.49 3.583,2.844 0.281,0.354 18 false 6 3.448,0.552 3.729,0.906 0.281,0.354 18 false 7 5.458,0.854 5.74,1.208 0.281,0.354 18 false 8 6.229,1.729 6.51,2.083 0.281,0.354 18 false 9 3.385,1.958 3.833,2.323 0.448,0.365 18 false 10 5.063,4.031 5.375,4.229 0.313,0.198 10 false x3 0.958,0.302 1.271,0.5 0.313,0.198 10 false x2 4.281,0.917 4.594,1.115 0.313,0.198 10 false x2 4.25,3.323 4.625,3.563 0.375,0.24 12 false *A

Procedure Part Name Code
Z101186

Z101188

Z101187

1 BLOWER ASSEMBLY 87130D - - -
2 AIR CONDITIONING HARNESS ASSEMBLY 82210K - - -
3 NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY 87050C - - -
4 HEATER GROMMET 87128 - - -
5 HEATER CLAMP 87124B - - -
6 HEATER RADIATOR UNIT SUB-ASSEMBLY 87107A - - -
7 COOLER PIPE GROMMET 88897K - - -
8 COOLER EXPANSION VALVE 88515 (Click here) - -
9 NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY 88501 - - -
10 NO. 1 COOLER THERMISTOR 88625 - - -

*A for Automatic Air Conditioning System - -
*1 UPPER HEATER CASE - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

CAUTION:
B475753

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION


HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*1: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 87050C 3.REMOVE NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (for Automatic Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT>DISASSEMBLY

Hide 88515 8.REMOVE COOLER EXPANSION VALVE

Z101186

Click here(Click here)

Hide 88625 10.REMOVE NO. 1 COOLER THERMISTOR

a.
I116550
