RM38T0EC _57 Power Source / Network _104409 NETWORKING _0500004 NETWORK GATEWAY ECU A

NETWORKING NETWORK GATEWAY ECU INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

2.656,0.917 2.323,0.917 false 4.667,1.948 4.333,1.948 false 2.135,0.771 2.688,1.125 0.552,0.354 18 false 2 4.708,1.802 5.26,2.156 0.552,0.354 18 false 1 3.573,1.146 3.885,1.344 0.313,0.198 10 false x2

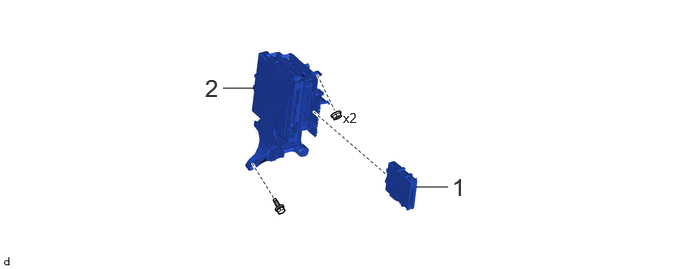

Procedure		Part Name Code
1	CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)	89111	-	-	-
2	NO. 2 CONNECTOR HOLDER	82666H	-	-	-

0.25,1 3.25,1.917 3,0.917 2.26,1.615 2.521,1.615 false 5.979,4.479 6.313,4.479 false 5.719,3.76 6.052,3.76 false 6.271,1.917 6.604,1.917 false 5.521,2.052 5.854,2.052 false 4.802,5.229 5.135,5.229 false 4.563,3.115 4.896,3.115 false 4.594,4.365 4.927,4.365 false 1.458,3.667 1.792,3.667 false 2.448,3.573 2.781,3.573 false 4.302,2.021 4.635,2.021 false 2.208,5.052 2.208,4.719 false 0.906,2.865 1.24,2.865 false 1.188,4.74 1.188,4.406 false 1.75,1 1.75,1.917 false 6.417,0.26 6.75,0.26 false 6.385,0.75 6.719,0.75 false 0.677,1.625 0.938,1.625 false 2.979,0.438 3.313,0.438 false 0.719,2.75 1.115,3.135 0.396,0.385 18 false 4 5.667,4.302 6.063,4.677 0.396,0.375 18 false 18 6.115,3.583 6.5,3.958 0.385,0.375 18 false 17 6.656,1.719 7.063,2.094 0.406,0.375 18 false 16 5.875,1.875 6.208,2.26 0.333,0.385 18 false 15 1.938,1.438 2.302,1.823 0.365,0.385 18 false 13 3.365,0.25 3.75,0.625 0.385,0.375 18 false 14 0.365,1.458 0.823,1.854 0.458,0.396 18 false 12 5.198,5.042 5.604,5.417 0.406,0.375 18 false 11 5.177,4.229 5.563,4.594 0.385,0.365 18 false 10 1.271,3.49 1.646,3.896 0.375,0.406 18 false 8 2.833,3.396 3.208,3.802 0.375,0.406 18 false 9 4.688,1.885 5.063,2.292 0.375,0.406 18 false 7 2.167,5.083 2.615,5.479 0.448,0.396 18 false 5 1.146,4.75 1.594,5.146 0.448,0.396 18 false 6 4.958,2.979 5.354,3.365 0.396,0.385 18 false 3 0.781,4.75 1.094,4.948 0.313,0.198 10 false x2 4.719,3.385 5.031,3.583 0.313,0.198 10 false x5 0.333,1.042 0.708,1.281 0.375,0.24 12 false *A 1.802,1.052 2.177,1.292 0.375,0.24 12 false *B 6.104,0.073 6.5,0.448 0.396,0.375 18 false 19 5.656,0.573 6.531,0.99 0.875,0.417 18 false 20, 21

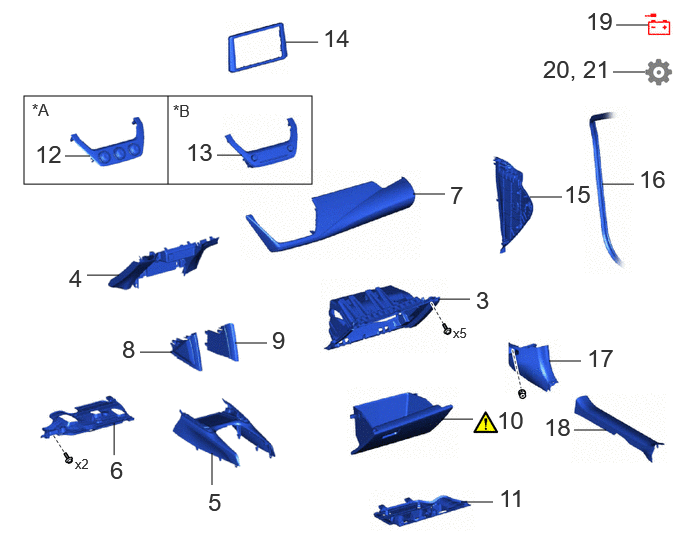

Procedure		Part Name Code
3	LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL	55433B	-	-	-
4	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434F	-	-	-
5	FRONT CONSOLE UPPER PANEL GARNISH	58831A	-	-	-
6	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
7	INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY	55470	-	-	-
8	NO. 2 CONSOLE UPPER PANEL GARNISH	58834B	-	-	-
9	NO. 1 CONSOLE UPPER PANEL GARNISH	58833B	-	-	-
10	GLOVE COMPARTMENT DOOR ASSEMBLY	55550	(202307,999999,_57,_104409,_0500004,RM100000002BK0N_01_0038,)	-	-
11	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-
12	LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55406B	-	-	-
13	AIR CONDITIONING CONTROL ASSEMBLY	55900	-	-	-
14	CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55405B	-	-	-
15	NO. 2 INSTRUMENT SIDE PANEL	55318F	-	-	-
16	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	62311B	-	-	-
17	COWL SIDE TRIM BOARD RH	62111C	-	-	-
18	FRONT DOOR SCUFF PLATE RH	67913B	-	-	-
19	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
20	UPDATE ECU SECURITY KEY	-	-	-	(202307,999999,_57,_104409,_0500004,RM100000002BK0N_01_0071,)
21	INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL	-	-	-	(202307,999999,_57,_104409,_0500004,RM100000002BK0N_01_0066,)

for Mechanical Control Type

for Electrical Control Type

CAUTION / NOTICE / HINT

NOTICE:: ·

After replacing the central gateway ECU (network gateway ECU), make sure to perform update ECU security key.

·

After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.
