AUDIO / VIDEO MICROPHONE REMOVAL
CAUTION / NOTICE / HINT

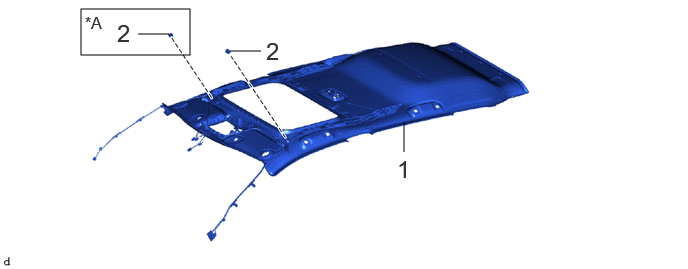

COMPONENTS (REMOVAL)
0.844,0.094 1.979,0.573
1.135,0.479
4.208,1.583 4.208,1.271
false
1.438,0.354 1.76,0.354
false
2.396,0.531 2.719,0.531
false
4.135,1.615 4.417,1.969
0.281,0.354
18
false
1
1.219,0.198 1.5,0.552
0.281,0.354
18
false
2
2.771,0.385 3.052,0.74
0.281,0.354
18
false
2
0.885,0.135 1.26,0.375
0.375,0.24
12
false
*A
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | ROOF HEADLINING ASSEMBLY | - | - | - | - |
| 2 | TELEPHONE MICROPHONE ASSEMBLY | 86730A | - | - | - |
| *A | for Dual Type | - | - |
CAUTION / NOTICE / HINT
- HINT:
-
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link *1: for Gasoline Model
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (
202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) ( 202307,999999,_51,_115233,_0510781,RM100000002CS0B,)
·Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system Fully close the back door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the back door is closed.
( 202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
PROCEDURE
63310
1.REMOVE ROOF HEADLINING ASSEMBLY
86730A
2.REMOVE TELEPHONE MICROPHONE ASSEMBLY

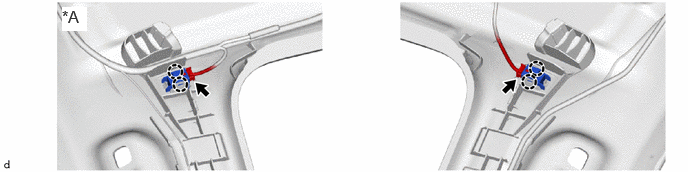

a.
0.646,0.073 0.906,0.323
0.26,0.25
12
true
*A
| *A | for Dual Type | - | - |
