RM38T0EC
_56
Audio / Visual / Telematics
_111966
AUDIO / VIDEO
_0499968
ROOF ANTENNA
A
AUDIO / VIDEO ROOF ANTENNA REMOVAL
CAUTION / NOTICE / HINT
COMPONENTS (REMOVAL)
4.76,1.719 5.167,2.188
5.167,2.188 5.333,2.188
false
5.427,2.021 5.708,2.375
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|

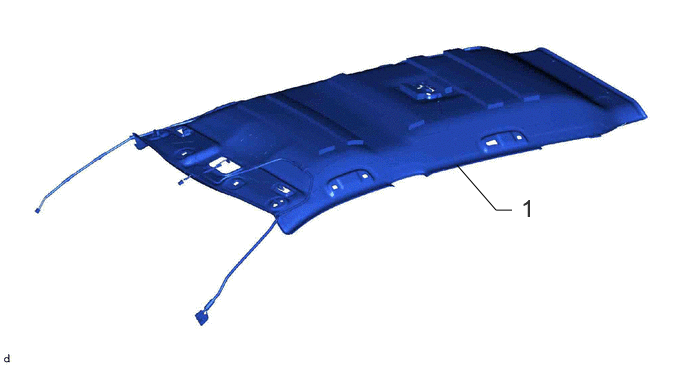

| 1 | ROOF HEADLINING ASSEMBLY | 63310 | - | - | - |
4.698,0.115 7.063,2.375
2.365,2.26
3.604,1.083 3.938,1.083
false
5.99,2.125 6.323,2.125
false
3.354,5 3.688,5
false
6.052,1.25 6.385,1.25
false
6.083,0.5 6.417,0.5
false
6.479,1.083 6.76,1.438
0.281,0.354
18
false
3
6.469,0.375 6.781,0.573
0.313,0.198
10
false
*1
6.396,2 6.896,2.229
0.5,0.229
10
false
●
3.75,4.875 4.25,5.104
0.5,0.229
10
false
●
4.031,0.917 4.313,1.271
0.281,0.354
18
false
2
6.542,1.958 6.823,2.313
0.281,0.354
18
false
4
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|

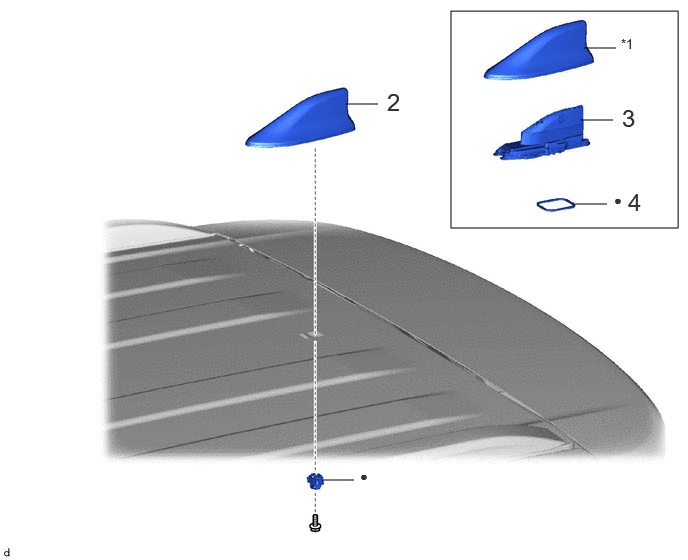

| 2 | ROOF ANTENNA ASSEMBLY WITH COVER | - | - | - | - |
| 3 | ROOF ANTENNA ASSEMBLY | 86300J | - | - | - |
| 4 | SEAL | - | - | - | - |
| *1 | COVER | - | - |
| ● | Non-reusable part | - | - |
CAUTION / NOTICE / HINT
- HINT:
-
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link *1: for Gasoline Model
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (
202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) ( 202307,999999,_51,_115233,_0510781,RM100000002CS0B,)
·Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system Fully close the back door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the back door is closed.
( 202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
PROCEDURE
63310
1.REMOVE ROOF HEADLINING ASSEMBLY

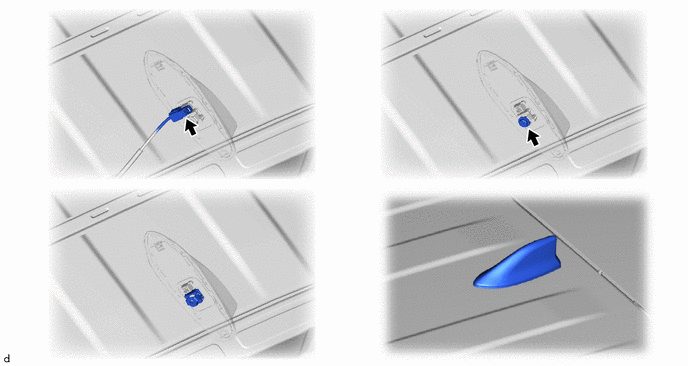

2.REMOVE ROOF ANTENNA ASSEMBLY WITH COVER
a.
86300J

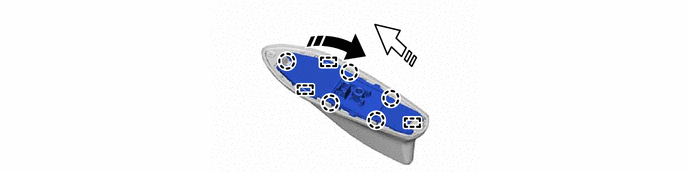

3.REMOVE ROOF ANTENNA ASSEMBLY
a.
0,0 0,0
false
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |

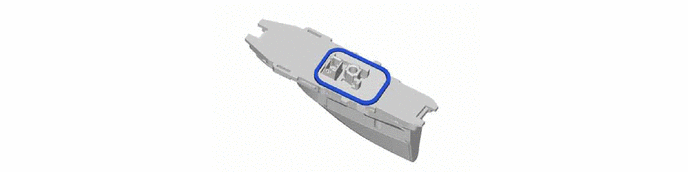

4.REMOVE SEAL
a.
When reusing the roof antenna assembly:
