RM38T0EC _59 Vehicle Exterior _144216 ACOUSTIC VEHICLE ALERTING SYSTEM _0602002 VEHICLE APPROACHING SPEAKER A

ACOUSTIC VEHICLE ALERTING SYSTEM VEHICLE APPROACHING SPEAKER REMOVAL

CAUTION / NOTICE / HINT

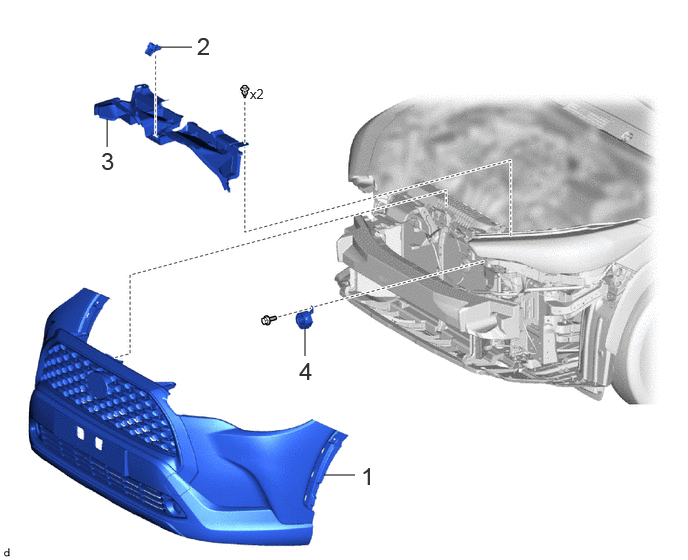

COMPONENTS (REMOVAL)

E444104N01

3.375,4.948 3.698,4.948 false 3.177,3.417 3.177,3.708 false 1.115,1.24 1.115,1.531 false 1.677,0.49 2,0.49 false 3.76,4.813 4.042,5.167 0.281,0.354 18 false 1 3.115,3.719 3.396,4.073 0.281,0.354 18 false 4 1.052,1.531 1.333,1.885 0.281,0.354 18 false 3 2.052,0.333 2.333,0.688 0.281,0.354 18 false 2 2.604,0.896 2.885,1.25 0.281,0.354 10 false x2

Procedure		Part Name Code
1	FRONT BUMPER ASSEMBLY	-	-	-	-
2	LOWER NO. 2 FRONT BUMPER RETAINER	52527C	-	-	-
3	NO. 1 RADIATOR TO SUPPORT SEAL	16561C	-	-	-
4	VEHICLE APPROACHING SPEAKER ASSEMBLY	86570	-	-	-

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

·

for TFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202307,999999,_59,_114126,_0505908,RM100000002CTH8,

·

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202307,999999,_59,_114126,_0505910,RM100000002CTHC,

Hide Display 52527C 2.REMOVE LOWER NO. 2 FRONT BUMPER RETAINER

·

for TFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>DISASSEMBLY202201,999999,_59,_114126,_0505908,RM100000001ZPAB_01_0399,

·

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>DISASSEMBLY202201,999999,_59,_114126,_0505910,RM100000001ZPAJ_01_0399,

Hide Display 16561C 3.REMOVE NO. 1 RADIATOR TO SUPPORT SEAL

·

for TFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>DISASSEMBLY202201,999999,_59,_114126,_0505908,RM100000001ZPAB_01_0400,

·

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>DISASSEMBLY202201,999999,_59,_114126,_0505910,RM100000001ZPAJ_01_0400,

Hide Display 86570 4.REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

a.

E445745
