RM38T0EC _59 Vehicle Exterior _144216 ACOUSTIC VEHICLE ALERTING SYSTEM _0602001 VEHICLE APPROACHING SPEAKER ECU A

ACOUSTIC VEHICLE ALERTING SYSTEM VEHICLE APPROACHING SPEAKER ECU REMOVAL

CAUTION / NOTICE / HINT

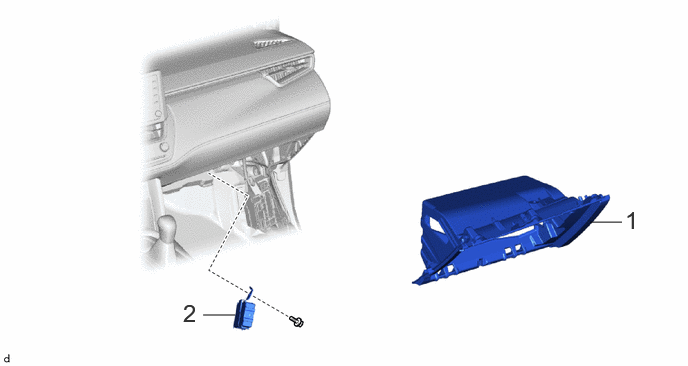

COMPONENTS (REMOVAL)

6.146,2.313 6.479,2.313 false 2.115,3.281 2.448,3.281 false 1.906,3.115 2.188,3.469 0.281,0.354 18 false 2 6.51,2.146 6.792,2.5 0.281,0.354 18 false 1

Procedure		Part Name Code
1	LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL	55433B	-	-	-
2	VEHICLE APPROACHING SPEAKER CONTROLLER	86572	-	-	-

PROCEDURE

Hide Display 55433B 1.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL202307,999999,_57,_104409,_0500004,RM100000002BK0L,

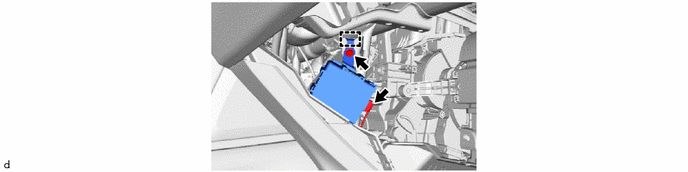

Hide Display 86572 2.REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER
