METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM  Hybrid System Indicator Malfunction


DESCRIPTION

A hybrid system indicator has been included on this vehicle. In this circuit, the combination meter assembly receives the hybrid system indicator signal from the hybrid vehicle control ECU via CAN communication. The combination meter assembly controls the operation of the hybrid system indicator according to the hybrid system indicator signal received from the hybrid vehicle control ECU via CAN communication.

WIRING DIAGRAM

E370855E25
0.677,2.271 3.042,2.521 2.365,0.25 10 false : CAN Communication Line 0.958,1.583 2.802,2.042 1.844,0.458 10 false Hybrid Vehicle Control ECU 4.677,1.563 6.656,1.969 1.979,0.406 10 false Combination Meter Assembly

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

Before replacing the hybrid vehicle control ECU, refer to Service Bulletin.

·

When replacing the combination meter assembly, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY



PROCEDURE

1.CHECK CAN COMMUNICATION SYSTEM
a.

Check if CAN communication DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>DIAGNOSIS SYSTEM


Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

2.CHECK FOR DTC (HYBRID CONTROL SYSTEM)

B

GO TO CAN COMMUNICATION SYSTEM

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING


2.CHECK FOR DTC (HYBRID CONTROL SYSTEM)
a.

Check if hybrid control system DTCs are output.

Powertrain > Hybrid Control > Trouble Codes
50001 397

Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

3.READ VALUE USING GTS

B

GO TO HYBRID CONTROL SYSTEM

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


3.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
HV/EV System Indicator Hybrid system indicator value Min.: -101%, Max.: 511% or Unset Current hybrid system indicator value "Unset" is displayed when the vehicle is stopped and the ignition switch is on (READY).
Body Electrical > Combination Meter > Data List
Tester Display
HV/EV System Indicator
50003 409 66

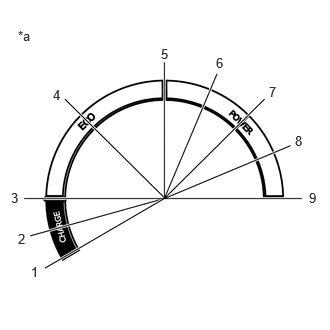

[Display 1]: HV/EV System Indicator
E489519C02
0.188,0.292 0.5,0.448 0.313,0.156 10 false *a 0.323,2.75 0.635,2.906 0.313,0.156 10 false 1 0.188,2.406 0.5,2.563 0.313,0.156 10 false 2 0.115,1.979 0.427,2.135 0.313,0.156 10 false 3 0.552,0.906 0.865,1.063 0.313,0.156 10 false 4 1.677,0.479 1.99,0.635 0.313,0.156 10 false 5 2.802,0.875 3.115,1.031 0.313,0.156 10 false 7 3.073,1.385 3.385,1.542 0.313,0.156 10 false 8 3.219,1.979 3.375,2.198 0.156,0.219 10 false 9 2.25,0.573 2.563,0.729 0.313,0.156 10 false 6
*a Hybrid System Indicator


HINT:

Refer to the following table for the specified hybrid system indicator position for each selected value:

Tester Display Hybrid System Indicator Indication
Unset Not indicated
-100% Approximately 1 is indicated
-50% Approximately 2 is indicated
0% Approximately 3 is indicated
50% Approximately 4 is indicated
100% Approximately 5 is indicated
200% Approximately 6 is indicated
300% Approximately 7 is indicated
400% Approximately 8 is indicated
500% Approximately 9 is indicated



OK:

Hybrid system indicator value displayed on the GTS is almost the same as the hybrid system indicator indication.



Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL
