METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM  DATA LIST / ACTIVE TEST


DATA LIST


NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.


HINT:

Using the GTS to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.


a.

Read the Data List according to the display on the GTS.

NOTICE:

Depending on the vehicle specifications, some of the Data List items in the following table will not be displayed on the GTS.


i.

Combination Meter

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Total Distance Traveled Total distance traveled Min.: 0, Max.: 16777215 - -
Total Distance Traveled - Unit Total distance traveled unit km or mile - -
OTA Communication Event History Wireless communication event history OFF or ON OFF: No communication event history
ON: Has communication event history 		Not applicable to this vehicle
ODO/TRIP Change Switch ODO/TRIP switch (Combination meter assembly) OFF or ON OFF: Switch released
ON: Switch pushed 		-
Trip Reset Switch Trip reset switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Display Select Switch DISP switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Meter Day Mode Switch Tail cancel switch OFF or ON OFF: Tail cancel switch off
ON: Tail cancel switch on 		-
Light Control Switch (UP) Light control rheostat up switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Light Control Switch (DOWN) Light control rheostat down switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Light Control Switch (Single) Light control rheostat switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Timer Switch H on Combination Meter Clock (+) switch (Combination meter assembly) OFF or ON OFF: Switch released
ON: Switch pushed 		-
Timer Switch M on Combination Meter Clock (-) switch (Combination meter assembly) OFF or ON OFF: Switch released
ON: Switch pushed 		-
Timer Switch 00 on Combination Meter Clock (00) switch (Combination meter assembly) OFF or ON OFF: Switch released
ON: Switch pushed 		-
Timer Switch on Combination Meter Clock switch (Combination meter assembly) OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Up) Up switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Down) Down switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Left) Left switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Right) Right switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Enter) OK switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Back) Back switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Menu) Menu switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
+B Voltage Auxiliary battery voltage Min.: 0.0 V, Max.: 25.5 V or Unset 11 to 14 V -
Fuel Input Fuel input Min.: 0.00 L, Max.: 655.35 L or Unset
for Gasoline Model:
·

Fuel receiver gauge indicates F: 41.86 L

·

Fuel receiver gauge indicates 3/4: 35.57 L

·

Fuel receiver gauge indicates 1/2: 23.28 L

·

Fuel receiver gauge indicates 1/4: 13.99 L

·

Fuel receiver gauge indicates E: 4.70 L


for HEV Model:
·

Fuel receiver gauge indicates F: 31.03 L

·

Fuel receiver gauge indicates 3/4: 24.50 L

·

Fuel receiver gauge indicates 1/2: 17.97 L

·

Fuel receiver gauge indicates 1/4: 11.44 L

·

Fuel receiver gauge indicates E: 4.91 L


-
Sub Fuel Input Sub fuel input Min.: 0.00 L, Max.: 655.35 L or Unset Current fuel level displayed -
Rheostat value Light control rheostat switch input Min.: 0.00%, Max.: 100.01% or Unset Increases from 0 to 100 as light control rheostat switch turned from low to high When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Vehicle Speed Meter Vehicle speed Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) or Unset Almost the same as actual vehicle speed -
Engine RPM Engine speed Min.: 0 rpm, Max.: 12701 rpm or Unset Almost the same as actual tachometer -
Washer Level Warning Switch Washer fluid level warning switch OFF or ON OFF: Washer fluid level not low
ON: Washer fluid level low 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Driver Buckle Switch Seat belt buckle switch
(for Driver seat) 		Fastened or Not Fastened Fastened: Driver seat belt buckle switch fastened
Not Fastened: Driver seat belt buckle switch unfastened 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Passenger Buckle Switch Seat belt buckle switch
(for Front passenger seat) 		Fastened or Not Fastened Fastened: Front passenger seat belt buckle switch fastened
Not Fastened: Front passenger seat belt buckle switch unfastened 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
(The occupant detection sensor circuit and buckle switch circuit are separate.)
Passenger Occupant Detection Switch Occupant detection sensor
(for Front passenger seat) 		OFF or ON OFF: Front passenger seat not occupied
ON: Front passenger seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
(The occupant detection sensor circuit and buckle switch circuit are separate.)
Passenger Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Front passenger seat) 		OFF or ON OFF: Front passenger seat belt fastened or front passenger seat not occupied
ON: Front passenger seat belt unfastened and front passenger seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
(The occupant detection sensor circuit and buckle switch circuit are the same.)
Rear Right Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Rear right seat) 		OFF or ON OFF: Rear seat belt RH fastened
ON: Rear seat belt RH unfastened 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Rear Left Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Rear left seat) 		OFF or ON OFF: Rear seat belt LH fastened
ON: Rear seat belt LH unfastened 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Rear Center Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Rear center seat) 		OFF or ON OFF: Rear seat belt center fastened
ON: Rear seat belt center unfastened 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
3rd Right Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Rear No. 2 right seat) 		OFF or ON OFF: Rear No. 2 seat belt RH fastened or rear No. 2 right seat not occupied
ON: Rear No. 2 seat belt RH unfastened and rear No. 2 right seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
3rd Left Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Rear No. 2 left seat) 		OFF or ON OFF: Rear No. 2 seat belt LH fastened or rear No. 2 left seat not occupied
ON: Rear No. 2 seat belt LH unfastened and rear No. 2 left seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
3rd Center Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Rear No. 2 center seat) 		OFF or ON OFF: Rear No. 2 seat belt center fastened or rear No. 2 center seat not occupied
ON: Rear No. 2 seat belt center unfastened and rear No. 2 center seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Turn Signal Switch (Left) LH turn signal switch OFF or ON OFF: LH turn signal switch off
ON: LH turn signal switch on 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Turn Signal Switch (Right) RH turn signal switch OFF or ON OFF: RH turn signal switch off
ON: RH turn signal switch on 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Turn Switch Signal (Full Turn) Turn signal switch signal OFF or ON OFF: LH and RH turn signal switch off
ON: LH or RH turn signal switch on 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Hazard Flasher Switch Hazard warning signal switch OFF or ON OFF: Hazard warning signal switch off
ON: Hazard warning signal switch on 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Ambient Temperature (Celsius) Outside temperature
(Celsius) 		Min.: -40.0°C, Max.: 87.1°C or Unset Almost the same as actual outside temperature -
Ambient Temperature (Fahrenheit) Outside temperature
(Fahrenheit) 		Min.: -40°F, Max.: 215°F or Unset Almost the same as actual outside temperature -
Lighting System Existence of headlight ECU Without or With Without: w/o Headlight ECU
With: w/ Headlight ECU 		-
Back Door System Existence of power back door system Without or With Without: w/o Power Back Door System
With: w/ Power Back Door System 		-
Oil Pressure Switch Engine oil pressure switch OFF or ON OFF: Engine started
ON: Engine not started 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Oil Level Switch Engine oil level sensor OFF or ON OFF: Engine oil level not low
ON: Engine oil level low 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Water Level Switch Fuel sediment switch OFF or ON OFF: Less than a large amount of water in fuel
ON: Large amount of water in fuel 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Fuel Filter Switch Fuel filter warning signal OFF or ON OFF: Fuel filter warning light off
ON: Fuel filter warning light on 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Coolant Temperature Engine coolant temperature Min.: 0.0°C, Max.: 127.1°C or Unset 75 to 100°C: After warming up engine -
Integrated value for Maintenance Maintenance required reminder value Min.: 0 miles, Max.: 25401 miles or Unset Driving distance after performing maintenance required reminder reset procedure displayed -
Parking Brake Switch Parking brake switch OFF or ON OFF: Parking brake released
ON: Parking brake applied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Brake Fluid Amount Brake fluid level OK or Low OK: Brake fluid level normal
Low: Brake fluid level abnormal 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Brake Negative Pressure Brake vacuum pressure OK or NG OK: Brake vacuum pressure normal
NG: Brake vacuum pressure abnormal 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
TPMS System Existence of tire pressure warning system Without or With Without: w/o Tire Pressure Warning System
With: w/ Tire Pressure Warning System 		-
VGRS System Existence of variable gear ratio steering system Without or With Without: w/o Variable Gear Ratio Steering System
With: w/ Variable Gear Ratio Steering System 		-
VSC System Existence of electronically controlled brake system Without or With Without: w/o Electronically Controlled Brake System
With: w/ Electronically Controlled Brake System 		-
DRS System Existence of dynamic rear steering system Without or With Without: w/o Dynamic Rear Steering System
With: w/ Dynamic Rear Steering System 		-
Pop Up Hood System Existence of pop up hood Without or With Without: w/o Pop up Hood
With: w/ Pop up Hood 		-
AVS System Existence of adaptive variable suspension system Without or With Without: w/o Adaptive Variable Suspension System
With: w/ Adaptive Variable Suspension System 		-
LDA System Existence of lane control system Without or With Without: w/o Lane Control System
With: w/ Lane Control System 		-
PCS System Existence of pre-collision system Without or With Without: w/o Pre-collision System
With: w/ Pre-collision System 		-
ICS System Existence of parking support brake system Without or With Without: w/o Parking Support Brake System
With: w/ Parking Support Brake System 		-
Radar Cruise System Existence of dynamic radar cruise control system Without or With Without: w/o Dynamic Radar Cruise Control System
With: w/ Dynamic Radar Cruise Control System 		-
Road Sign Assist System Existence of road sign assist system Without or With Without: w/o Road Sign Assist System
With: w/ Road Sign Assist System 		-

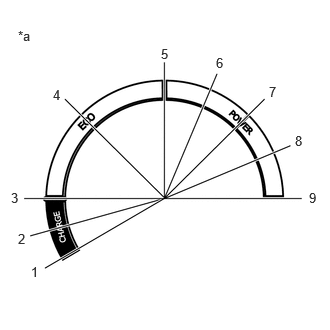

HV/EV System Indicator Hybrid system indicator value Min.: -101%, Max.: 511% or Unset Refer to [Display 1] "Unset" is displayed when the vehicle is stopped and the ignition switch is on (READY).
ODO Display Time After IG OFF Adjust Setting of the trip result display time after the ignition switch is turned off 30s, 60s, 600s or OFF Customize setting status displayed -
Tail Remind Buzzer Function Condition of the tail remind buzzer OFF or ON Customized setting displayed -
Driver Seatbelt Warning Buzzer Function Condition of the driver seat belt warning buzzer OFF or ON Customized setting displayed -
Passenger Seatbelt Warning Buzzer Function Condition of the front passenger seat belt warning buzzer OFF or ON Customized setting displayed -
Rear Right Seatbelt Warning Buzzer Function Condition of the rear right seat belt warning buzzer OFF or ON Customized setting displayed -
Rear Left Seatbelt Warning Buzzer Function Condition of the rear left seat belt warning buzzer OFF or ON Customized setting displayed -
Rear Center Seatbelt Warning Buzzer Function Condition of the rear center seat belt warning buzzer OFF or ON Customized setting displayed -
3rd Right Seatbelt Warning Buzzer Function Condition of the rear No. 2 right seat belt warning buzzer OFF or ON Customized setting displayed -
3rd Left Seatbelt Warning Buzzer Function Condition of the rear No. 2 center seat belt warning buzzer OFF or ON Customized setting displayed -
3rd Center Seatbelt Warning Buzzer Function Condition of the rear No. 2 left seat belt warning buzzer OFF or ON Customized setting displayed -
Lane Change Flashing Times Adjust Setting of lane change flashing time adjustment OFF, 3, 4, 5, 6 or 7 Customize setting status displayed If it is possible to customize the setting, the current setting is displayed.
Flasher Sound Volume Adjust Setting of the turn signal flasher buzzer sound volume adjustment Large, Medium or Small Customize setting status displayed -
Reverse Buzzer Setting Setting of the reverse buzzer Continual or Single Customize setting status displayed -
Brake Pad Sensor Signal Brake pad wear signal OFF or ON OFF: Brake pad replacement not necessary
ON: Brake pad replacement necessary 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Sub Fuel Sender No. 2 fuel sender gauge assembly Without or With Without: w/o No. 2 Fuel Sender Gauge Assembly
With: w/ No. 2 Fuel Sender Gauge Assembly 		-
4th Right Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Rear No. 3 right seat) 		OFF or ON OFF: Rear No. 3 seat belt RH fastened or rear No. 3 right seat not occupied
ON: Rear No. 3 seat belt RH unfastened and rear No. 3 right seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
4th Left Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Rear No. 3 left seat) 		OFF or ON OFF: Rear No. 3 seat belt LH fastened or rear No. 3 left seat not occupied
ON: Rear No. 3 seat belt LH unfastened and rear No. 3 left seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
4th Center Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Rear No. 3 center seat) 		OFF or ON OFF: Rear No. 3 seat belt center fastened or rear No. 3 center seat not occupied
ON: Rear No. 3 seat belt center unfastened and rear No. 3 center seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
CTR Seat Buckle Switch Seat belt buckle switch
(for Front center seat) 		OFF or ON OFF: Front center seat belt buckle switch fastened
ON: Front center seat belt buckle switch unfastened 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
CTR Seat Occupant Detection Warning Switch Occupant detection sensor
(for Front center seat) 		OFF or ON OFF: Front center seat not occupied
ON: Front center seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
CTR Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor
(for Front center seat) 		OFF or ON OFF: Front center seat belt fastened or front center seat not occupied
ON: Front center seat belt unfastened and front center seat occupied 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
Steering Heater Indicator Heated steering wheel indicator light signal OFF or ON OFF: Heated steering wheel indicator light off
ON: Heated steering wheel indicator light on 		When the switch is not connected to the combination meter assembly via direct line, the value of the Data List item will not change.
[Display 1]: HV/EV System Indicator
E489519C03
0.188,0.292 0.5,0.448 0.313,0.156 10 false *a 0.323,2.75 0.635,2.906 0.313,0.156 10 false 1 0.188,2.406 0.5,2.563 0.313,0.156 10 false 2 0.115,1.979 0.427,2.135 0.313,0.156 10 false 3 0.552,0.906 0.865,1.063 0.313,0.156 10 false 4 1.677,0.479 1.99,0.635 0.313,0.156 10 false 5 2.802,0.875 3.115,1.031 0.313,0.156 10 false 7 3.073,1.385 3.385,1.542 0.313,0.156 10 false 8 3.219,1.979 3.375,2.198 0.156,0.219 10 false 9 2.25,0.573 2.563,0.729 0.313,0.156 10 false 6
*a Hybrid System Indicator


HINT:

Refer to the following table for the specified hybrid system indicator position for each selected value:

Tester Display Hybrid System Indicator Indication
HV/EV System Indicator
(MIN) 		Approximately 1 is indicated
HV/EV System Indicator
(-50%) 		Approximately 2 is indicated
HV/EV System Indicator
(0%) 		Approximately 3 is indicated
HV/EV System Indicator
(100%) 		Approximately 4 is indicated
HV/EV System Indicator
(200%) 		Approximately 5 is indicated
HV/EV System Indicator
(300%) 		Approximately 6 is indicated
HV/EV System Indicator
(400%) 		Approximately 7 is indicated
HV/EV System Indicator
(MAX) 		Approximately 8 is indicated




ii.

Brake/EPB

Chassis > Brake/EPB > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Vehicle Speed Vehicle speed Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations

iii.

Engine

Powertrain > Engine > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Engine Speed Engine speed Min.: 0 rpm, Max.: 16383 rpm
for Gasoline Model:

750 to 850 rpm: Idling (shift lever in P, engine warmed up and A/C off)


for HEV Model:

950 to 1050 rpm: Idling (shift lever in P, engine warmed up, inspection mode [maintenance mode] and not charge control)


When the crankshaft position sensor is malfunctioning, "Engine Speed" is approximately 0 rpm or varies greatly from the actual engine speed.



ACTIVE TEST


HINT:

Using the GTS to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.


a.

Perform the Active Test according the display on the GTS.

NOTICE:

Depending on the vehicle specifications, some of the Active Test items in the following table will not be displayed on the GTS.


Body Electrical > Combination Meter > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Speedometer Operation (0km/h,0MPH) Speedometer
(0 km/h, 0 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.


Speedometer Operation (40km/h,40MPH) Speedometer
(40 km/h, 40 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.

·

The value displayed on the speedometer may deviate.*


Speedometer Operation (80km/h,80MPH) Speedometer
(80 km/h, 80 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.

·

The value displayed on the speedometer may deviate.*


Speedometer Operation (120km/h,120MPH) Speedometer
(120 km/h, 120 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.

·

The value displayed on the speedometer may deviate.*


Speedometer Operation (160km/h,160MPH) Speedometer
(160 km/h, 160 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.

·

The value displayed on the speedometer may deviate.*


Speedometer Operation (200km/h,200MPH) Speedometer
(200 km/h, 200 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.

·

The value displayed on the speedometer may deviate.*


Speedometer Operation (240km/h,240MPH) Speedometer
(240 km/h, 240 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.


Speedometer Operation (280km/h,280MPH) Speedometer
(280 km/h, 280 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.


Speedometer Operation (320km/h,320MPH) Speedometer
(320 km/h, 320 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.


Speedometer Operation (360km/h,360MPH) Speedometer
(360 km/h, 360 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.


Speedometer Operation (400km/h,400MPH) Speedometer
(400 km/h, 400 mph) 		ON
·

For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.

·

When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.


TachoMeter Operation (0rpm) Tachometer
(0 rpm) 		ON -
TachoMeter Operation (1000rpm) Tachometer
(1000 rpm) 		ON -
TachoMeter Operation (2000rpm) Tachometer
(2000 rpm) 		ON -
TachoMeter Operation (3000rpm) Tachometer
(3000 rpm) 		ON -
TachoMeter Operation (4000rpm) Tachometer
(4000 rpm) 		ON -
TachoMeter Operation (5000rpm) Tachometer
(5000 rpm) 		ON -
TachoMeter Operation (6000rpm) Tachometer
(6000 rpm) 		ON -
TachoMeter Operation (7000rpm) Tachometer
(7000 rpm) 		ON -
TachoMeter Operation (8000rpm) Tachometer
(8000 rpm) 		ON -
TachoMeter Operation (9000rpm) Tachometer
(9000 rpm) 		ON -
TachoMeter Operation (10000rpm) Tachometer
(10000 rpm) 		ON -
Fuel Gauge Operation (Sender E) Fuel receiver gauge
(Sender E) 		ON See [Display 1]
Fuel Gauge Operation (Empty) Fuel receiver gauge
(Empty) 		ON See [Display 1]
Fuel Gauge Operation (Warning) Fuel receiver gauge
(Warning) 		ON See [Display 1]
Fuel Gauge Operation (1/4) Fuel receiver gauge
(1/4) 		ON See [Display 1]
Fuel Gauge Operation (1/2) Fuel receiver gauge
(1/2) 		ON See [Display 1]
Fuel Gauge Operation (3/4) Fuel receiver gauge
(3/4) 		ON See [Display 1]
Fuel Gauge Operation (Full) Fuel receiver gauge
(Full) 		ON See [Display 1]
Fuel Gauge Operation (Sender F) Fuel receiver gauge
(Sender F) 		ON See [Display 1]
Sub Fuel Gauge Operation (Sender E) Sub Fuel receiver gauge
(Sender E) 		ON -
Sub Fuel Gauge Operation (Empty) Sub Fuel receiver gauge
(Empty) 		ON -
Sub Fuel Gauge Operation (1/4) Sub Fuel receiver gauge
(1/4) 		ON -
Sub Fuel Gauge Operation (1/2) Sub Fuel receiver gauge
(1/2) 		ON -
Sub Fuel Gauge Operation (3/4) Sub Fuel receiver gauge
(3/4) 		ON -
Sub Fuel Gauge Operation (Full) Sub Fuel receiver gauge
(Full) 		ON -
Sub Fuel Gauge Operation (Sender F) Sub Fuel receiver gauge
(Sender F) 		ON -
Water Temperature Meter Operation (50C,122F) Engine coolant temperature receiver gauge
(50°C, 122°F) 		ON See [Display 2]
Water Temperature Meter Operation (60C,140F) Engine coolant temperature receiver gauge
(60°C, 140°F) 		ON See [Display 2]
Water Temperature Meter Operation (70C,158F) Engine coolant temperature receiver gauge
(70°C, 158°F) 		ON See [Display 2]
Water Temperature Meter Operation (80C,176F) Engine coolant temperature receiver gauge
(80°C, 176°F) 		ON See [Display 2]
Water Temperature Meter Operation (Middle) Engine coolant temperature receiver gauge
(Middle) 		ON See [Display 2]
Water Temperature Meter Operation (110C,230F) Engine coolant temperature receiver gauge
(110°C, 230°F) 		ON See [Display 2]
Water Temperature Meter Operation (120C,248F) Engine coolant temperature receiver gauge
(120°C, 248°F) 		ON See [Display 2]
Water Temperature Meter Operation (127C,260F) Engine coolant temperature receiver gauge
(127°C, 260°F) 		ON See [Display 2]
Volt Meter Operation (0V) Voltmeter
(0 V) 		ON -
Volt Meter Operation (3V) Voltmeter
(3 V) 		ON -
Volt Meter Operation (6V) Voltmeter
(6 V) 		ON -
Volt Meter Operation (9V) Voltmeter
(9 V) 		ON -
Volt Meter Operation (12V) Voltmeter
(12 V) 		ON -
Volt Meter Operation (15V) Voltmeter
(15 V) 		ON -
Volt Meter Operation (18V) Voltmeter
(18 V) 		ON -
Oil Pressure Meter Operation (LOW) Engine oil pressure receiver gauge
(Low) 		ON -
Oil Pressure Meter Operation (1/4) Engine oil pressure receiver gauge
(1/4) 		ON -
Oil Pressure Meter Operation (1/2) Engine oil pressure receiver gauge
(1/2) 		ON -
Oil Pressure Meter Operation (3/4) Engine oil pressure receiver gauge
(3/4) 		ON -
Oil Pressure Meter Operation (HIGH) Engine oil pressure receiver gauge
(High) 		ON -
HV/EV System Indicator (MIN) Hybrid system indicator value
(Charge area) 		ON -
HV/EV System Indicator (-50%) Hybrid system indicator value
(Charge area) 		ON -
HV/EV System Indicator (0%) Hybrid system indicator value
(Eco area) 		ON -
HV/EV System Indicator (100%) Hybrid system indicator value
(Eco area) 		ON -
HV/EV System Indicator (200%) Hybrid system indicator value
(Power area) 		ON -
HV/EV System Indicator (300%) Hybrid system indicator value
(Power area) 		ON -
HV/EV System Indicator (400%) Hybrid system indicator value
(Power area) 		ON -
HV/EV System Indicator (MAX) Hybrid system indicator value
(Power area) 		ON -
SOC Gauge (MIN) Hybrid battery status gauge
(Min.) 		ON -
SOC Gauge (1/4) Hybrid battery status gauge
(1/4) 		ON -
SOC Gauge (1/2) Hybrid battery status gauge
(1/2) 		ON -
SOC Gauge (3/4) Hybrid battery status gauge
(3/4) 		ON -
SOC Gauge (MAX) Hybrid battery status gauge
(Max.) 		ON -
Fuel Gauge Operation for CNG (Sender E) Fuel receiver gauge (for CNG)
(Sender E) 		ON -
Fuel Gauge Operation for CNG (Empty) Fuel receiver gauge (for CNG)
(Empty) 		ON -
Fuel Gauge Operation for CNG (Warning) Fuel receiver gauge (for CNG)
(Warning) 		ON -
Fuel Gauge Operation for CNG (1/4) Fuel receiver gauge (for CNG)
(1/4) 		ON -
Fuel Gauge Operation for CNG (1/2) Fuel receiver gauge (for CNG)
(1/2) 		ON -
Fuel Gauge Operation for CNG (3/4) Fuel receiver gauge (for CNG)
(3/4) 		ON -
Fuel Gauge Operation for CNG (Full) Fuel receiver gauge (for CNG)
(Full) 		ON -
Fuel Gauge Operation for CNG (Sender F) Fuel receiver gauge (for CNG)
(Sender F) 		ON -
Buzzer Operation (800Hz, Vol L, W/ Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Large

·

Fading tone


ON -
Buzzer Operation (800Hz, Vol L, W/O Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Large

·

Continuous tone


ON -
Buzzer Operation (800Hz, Vol S, W/ Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Small

·

Fading tone


ON -
Buzzer Operation (800Hz, Vol S, W/O Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Small

·

Continuous tone


ON -
Buzzer Operation (1.6kHz, Vol S, W/O Damping) Combination meter buzzer
·

Frequency: 1.6kHz

·

Volume: Small

·

Continuous tone


ON -
Buzzer Operation (2.0kHz, Vol S, W/O Damping) Combination meter buzzer
·

Frequency: 2.0kHz

·

Volume: Small

·

Continuous tone


ON -
Buzzer Operation (2.4kHz, Vol L, W/O Damping) Combination meter buzzer
·

Frequency: 2.4kHz

·

Volume: Large

·

Continuous tone


ON -
Multi Display All (White) Multi-information display
(White display) 		ON -
Multi Display Default Screen Multi-information display
(Default screen) 		ON -
Meter Display (All) Segment display
(All display) 		ON -
Meter Display (0) Segment display
(0 display) 		ON -
Meter Display (1) Segment display
(1 display) 		ON -
Meter Display (2) Segment display
(2 display) 		ON -
Meter Display (3) Segment display
(3 display) 		ON -
Meter Display (4) Segment display
(4 display) 		ON -
Meter Display (5) Segment display
(5 display) 		ON -
Meter Display (6) Segment display
(6 display) 		ON -
Meter Display (7) Segment display
(7 display) 		ON -
Meter Display (8) Segment display
(8 display) 		ON -
Meter Display (9) Segment display
(9 display) 		ON -
Fuel Gauge Indicator Fuel level warning light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Over Speed Indicator Speed warning light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
High Beam Indicator High beam indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Taillamp Indicator Tail indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Front Fog Lamp Indicator Front fog indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Rear Fog Lamp Indicator Rear fog indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Automatic High Beam Indicator (Green) Automatic high beam indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Left Turn Signal Indicator LH turn indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Right Turn Signal Indicator RH turn indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Driver Side Seat Belt Warning Driver or front passenger seat belt warning light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Rear Seat Belt Warning Rear seat belt warning light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Airbag Warning SRS warning light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
ECONO Indicator Eco driving indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Check Engine Warning MIL (Check engine warning light) OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
ECT PWR Indicator ECT PWR indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
ECO MODE Indicator ECO MODE indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Brake Warning Brake warning light / red (malfunction) OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Park Warning Parking brake indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
ABS Warning ABS warning light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
ECB Warning Brake warning light / yellow (minor malfunction) OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Slip Warning Slip indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
VSC OFF Indicator VSC OFF indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Brake Hold Indicator Brake hold standby indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Hold Indicator Brake hold operated indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Tire Pressure Warning System Indicator Tire pressure warning light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
EPS Warning EPS warning light
(Red) 		OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
PPS Warning EPS warning light
(Amber) 		OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
PCS OFF Warning PCS warning light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Cruise Indicator Cruise control indicator light
(Constant speed control)
(Green) 		OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Cruise Indicator (Yellow) Cruise control indicator light
(Constant speed control)
(Amber) 		OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Stop and Start ON Indicator Stop and start indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Stop and Start OFF Indicator Stop and start off indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Clearance Sonar LCD OFF Indicator Clearance sonar OFF indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Ready Indicator Ready indicator light OFF or ON For models that display the measurement item on the multi-information display, the Active Test may not operate or may provide an invalid result.
Speed Signal Input (0) Vehicle speed test signal input
(0 km/h, 0 mph) 		ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
Speed Signal Input (40) Vehicle speed test signal input
(40 km/h, 40 mph) 		ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (80) Vehicle speed test signal input
(80 km/h, 80 mph) 		ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (120) Vehicle speed test signal input
(120 km/h, 120 mph) 		ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (160) Vehicle speed test signal input
(160 km/h, 160 mph) 		ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (200) Vehicle speed test signal input
(200 km/h, 200 mph) 		ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (240) Vehicle speed test signal input
(240 km/h, 240 mph) 		ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
Speed Signal Input (280) Vehicle speed test signal input
(280 km/h, 280 mph) 		ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
Speed Signal Input (320) Vehicle speed test signal input
(320 km/h, 320 mph) 		ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
Speed Signal Input (360) Vehicle speed test signal input
(360 km/h, 360 mph) 		ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
Speed Signal Input (400) Vehicle speed test signal input
(400 km/h, 400 mph) 		ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
ODO/TRIP Change Switch ODO/TRIP switch (Combination meter assembly) OFF or ON -
Trip Reset Switch Trip reset switch OFF or ON -
Multi Display Select Switch DISP switch on steering pad switch OFF or ON -
Meter Day Mode Switch Tail cancel switch OFF or ON -
Light Control Switch (UP) Light control rheostat up switch OFF or ON -
Light Control Switch (DOWN) Light control rheostat down switch OFF or ON -
Light Control Switch (Single) Light control rheostat switch OFF or ON -
Timer Switch (H) Clock (+) switch (Combination meter assembly) OFF or ON -
Timer Switch (M) Clock (-) switch (Combination meter assembly) OFF or ON -
Timer Switch (00) Clock (00) switch (Combination meter assembly) OFF or ON -
Timer Switch (Single) Clock switch (Combination meter assembly) OFF or ON -
Multi Switch (Up) Up switch on steering pad switch OFF or ON -
Multi Switch (Down) Down switch on steering pad switch OFF or ON -
Multi Switch (Left) Left switch on steering pad switch OFF or ON -
Multi Switch (Right) Right switch on steering pad switch OFF or ON -
Multi Switch (Enter) OK switch on steering pad switch OFF or ON -
Multi Switch (Back) Back switch on steering pad switch OFF or ON -
Multi Switch (Top) Top switch on steering pad switch OFF or ON -

*: For the tolerance of each Speed Signal Input Active Test, refer to On-vehicle Inspection.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>ON-VEHICLE INSPECTION


i.

[Display 1]: Fuel Gauge Operation (for 7 Inch Type Multi-information Display)

E497656C01
1.167,1.667 0.917,1.667 false 1.167,0.5 1.167,2.917 false 1.167,0.5 1.333,0.5 false 1.167,2.917 1.333,2.917 false 0.135,0.135 0.448,0.333 0.313,0.198 10 false *a 0.75,1.583 1.979,1.781 1.229,0.198 10 false *b
*a Fuel Receiver Gauge
*b Segments


Refer to the following table for the specified fuel receiver gauge position for each selected value:

Tester Display Fuel Receiver Gauge Indication
Fuel Gauge Operation
(Sender E) 		Segments illuminate 0/8
Fuel Gauge Operation
(Empty) 		Segments illuminate 1/8
Fuel Gauge Operation
(Warning) 		Segments illuminate 1/8
Fuel Gauge Operation
(1/4) 		Segments illuminate 2/8
Fuel Gauge Operation
(1/2) 		Segments illuminate 4/8
Fuel Gauge Operation
(3/4) 		Segments illuminate 6/8
Fuel Gauge Operation
(Full) 		Segments illuminate 8/8
Fuel Gauge Operation
(Sender F) 		Segments illuminate 8/8



ii.

[Display 2]: Water Temperature Meter Operation (for 7 Inch Type Multi-information Display)

E497649C01
2.417,2.833 2.417,0.5 false 2.167,0.5 2.417,0.5 false 2.427,1.667 2.677,1.667 false 2.167,2.833 2.417,2.833 false 0.135,0.115 0.448,0.313 0.313,0.198 10 false *a 2.729,1.604 3.042,1.802 0.313,0.198 10 false *b
*a Engine Coolant Temperature Receiver Gauge
*b Segments


HINT:

Refer to the following table for the specified engine coolant temperature receiver gauge position for each selected value:

Tester Display engine coolant temperature receiver gauge indication
Water Temperature Meter Operation
(50C, 122F) 		3rd segment illuminated*1
2nd segment illuminated*2
Water Temperature Meter Operation
(60C, 140F) 		4th segment illuminated*1
2nd segment illuminated*2
Water Temperature Meter Operation
(70C, 158F) 		4th segment illuminated*1
3rd segment illuminated*2
Water Temperature Meter Operation
(80C, 176F) 		4th segment illuminated
Water Temperature Meter Operation
(Middle) 		4th segment illuminated
Water Temperature Meter Operation
(110C, 230F) 		5th segment illuminated
Water Temperature Meter Operation
(120C, 248F) 		8th segment illuminated
Water Temperature Meter Operation
(127C, 260F) 		8th segment illuminated

*1: for HEV Model

*2: for Gasoline Model
