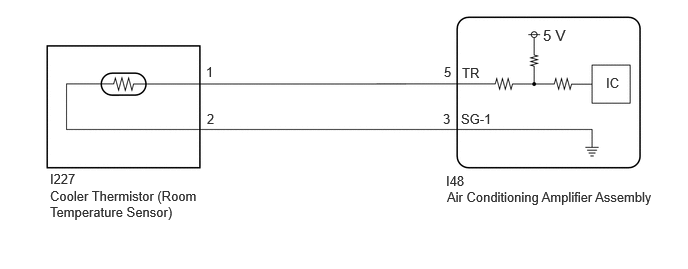

The cooler thermistor (room temperature sensor) is installed in the instrument panel to detect the cabin temperature, which is used to control the air conditioning system. The resistance of the cooler thermistor (room temperature sensor) changes in accordance with the cabin temperature. As the temperature decreases, the resistance increases. As the temperature increases, the resistance decreases.
The air conditioning amplifier assembly applies voltage to the cooler thermistor (room temperature sensor) and reads voltage changes due to changes in the resistance of the cooler thermistor (room temperature sensor).
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Memory |
|---|---|---|---|---|
| B141A11 | Room Temperature Sensor Circuit Short to Ground | Diagnosis Condition:
Ignition switch ON Malfunction Status: Short in room temperature sensor circuit Detection Time: Continuously for 4 seconds or more |
·
Cooler thermistor (room temperature sensor) ·
Harness or connector ·
Air conditioning amplifier assembly |
Memorized |
Clear the DTCs.
| Proceed to |
|---|
| NEXT |
NEXT
Turn the ignition switch off.
| *1 | Cooler (Room Temp. Sensor) Thermistor |
| *2 | Air Conditioning Amplifier Assembly |
Disconnect the I227 cooler (room temp. sensor) thermistor connector.
Turn the ignition switch to ON and wait for 4 seconds or more.
Check for DTCs.
| Result | Proceed to |
|---|---|
| B141A15 is output | A |
| B141A11 is output | B |
A
B
Disconnect the I48 air conditioning amplifier assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| I227-1 or I48-5 (TR) - Other terminals and body ground | Always | 10 kΩ or higher |
| I227-2 or I48-3 (SG-1) - Other terminals and body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
