Vehicle Interior
_104612
HEATING / AIR CONDITIONING
_0500014
ROOM TEMPERATURE SENSOR
A
HEATING / AIR CONDITIONING ROOM TEMPERATURE SENSOR REMOVAL
CAUTION / NOTICE / HINT

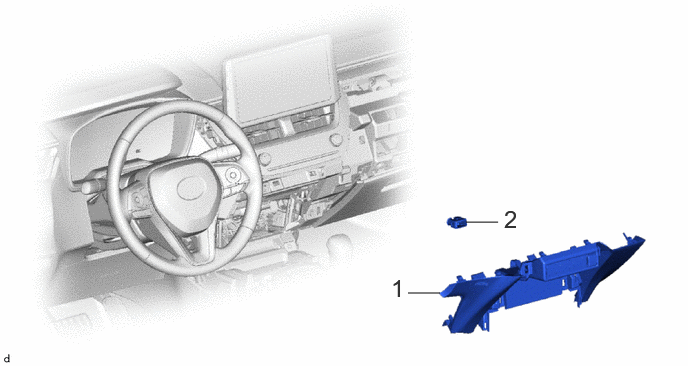

COMPONENTS (REMOVAL)
4.854,2.313 5.188,2.313
false
4.25,3.052 4.583,3.052
false
4.073,2.854 4.354,3.208
0.281,0.354
18
false
1
5.25,2.135 5.531,2.49
0.281,0.354
18
false
2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434F | - | - | - |
| 2 | COOLER THERMISTOR (ROOM TEMPERATURE SENSOR) | 88625Q | - | - | - |
PROCEDURE
55434F
1.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
88625Q
2.REMOVE COOLER THERMISTOR (ROOM TEMPERATURE SENSOR)
a.
