INTERIOR PANELS / TRIM ROOF HEADLINING INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

2.083,0.958 2.25,0.958 2.25,0.958 2.417,1.302 false 1.875,0.781 2.427,1.135 0.552,0.354 18 false 1 5.406,2.396 5.719,2.594 0.313,0.198 10 false x3 0.167,0.094 0.542,0.333 0.375,0.24 12 false *A

Procedure		Part Name Code

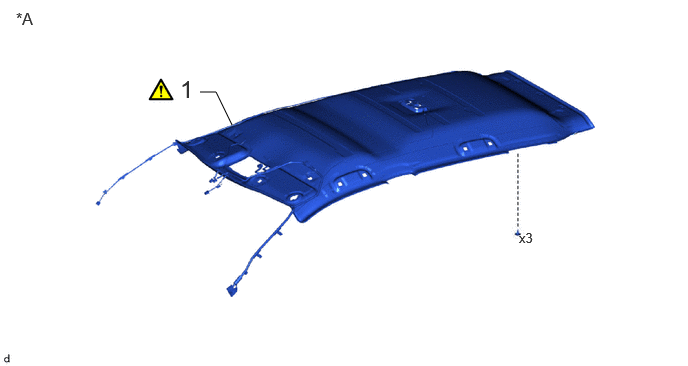

1	ROOF HEADLINING ASSEMBLY	63310	(202307,999999,_58,_112291,_0501087,RM100000002BHCK_02_0304,)	-	-

for Normal Roof

2.083,0.938 2.25,0.938 2.25,0.938 2.417,1.302 false 1.865,0.781 2.417,1.135 0.552,0.354 18 false 2 5.406,2.396 5.719,2.594 0.313,0.198 10 false x3 0.167,0.094 0.542,0.333 0.375,0.24 12 false *A

Procedure		Part Name Code

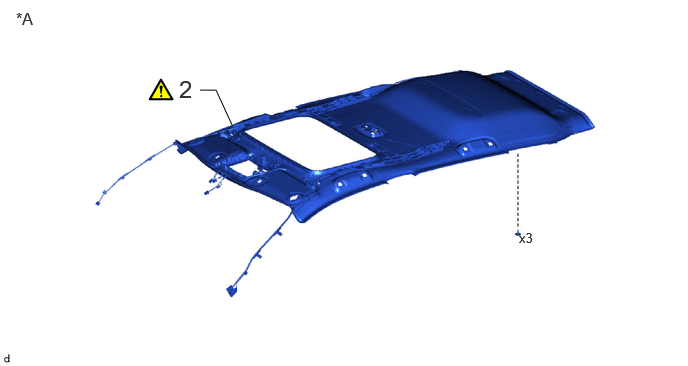

2	ROOF HEADLINING ASSEMBLY	63310	(202307,999999,_58,_112291,_0501087,RM100000002BHCK_02_0288,)	-	-

for Moon Roof

2.083,0.938 2.25,0.938 2.25,0.938 2.427,1.292 false 1.854,0.781 2.406,1.135 0.552,0.354 18 false 3 5.406,2.396 5.719,2.594 0.313,0.198 10 false x3 0.167,0.094 0.542,0.333 0.375,0.24 12 false *A

Procedure		Part Name Code

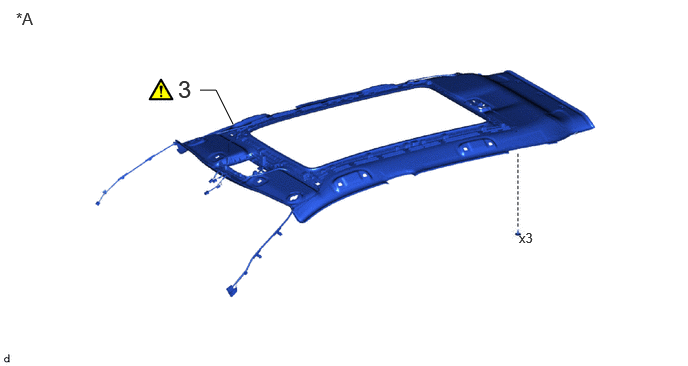

3	ROOF HEADLINING ASSEMBLY	63310	(202307,999999,_58,_112291,_0501087,RM100000002BHCK_02_0306,)	-	-

for Panoramic Moon Roof

0.167,3.75 1.083,4.667 0.917,0.917 2.083,5.083 3.5,5.5 1.417,0.417 3.219,0.615 3.552,0.615 false 0.958,1.281 1.292,1.281 false 0.677,3.917 0.677,4.25 false 1.323,3.01 1.656,3.01 false 5.844,2.167 6.177,2.167 false 2.021,4.021 2.021,4.354 false 6.198,2.604 6.198,3.104 false 4.281,1.01 4.281,1.51 false 1.99,1.667 1.99,2.208 false 1.563,1.771 1.563,2 1.563,2 1.979,2 false 3.865,1.094 3.865,1.323 3.865,1.323 4.281,1.323 false 5.802,2.688 5.802,2.917 5.802,2.917 6.188,2.917 false 2.729,5.24 3.063,5.24 false 2.156,3.313 2.49,3.313 false 0.646,2.344 0.979,2.344 false 1.938,2.24 2.49,2.594 0.552,0.354 18 false 8 4.219,1.552 4.771,1.906 0.552,0.354 18 false 8 6.177,3.125 6.729,3.479 0.552,0.354 18 false 8 3,0.458 3.552,0.813 0.552,0.354 18 false 9 0.781,1.125 1.333,1.479 0.552,0.354 18 false 9 1.708,2.854 2.26,3.208 0.552,0.354 18 false 6 0.583,4.271 1.135,4.625 0.552,0.354 18 false 7 1.948,4.396 2.5,4.75 0.552,0.354 18 false 5 5.615,2.021 6.167,2.375 0.552,0.354 18 false 9 2.625,4.906 2.99,5.146 0.365,0.24 10 false x2 0.688,3.542 1.052,3.781 0.365,0.24 10 false x2 3.135,5.094 3.688,5.448 0.552,0.354 18 false 7 0.469,2.208 1.021,2.563 0.552,0.354 18 false 4 2.563,3.156 3.115,3.51 0.552,0.354 18 false 4 0.25,3.802 0.625,4.042 0.375,0.24 12 false *A 2.167,5.135 2.542,5.375 0.375,0.24 12 false *A

Procedure		Part Name Code

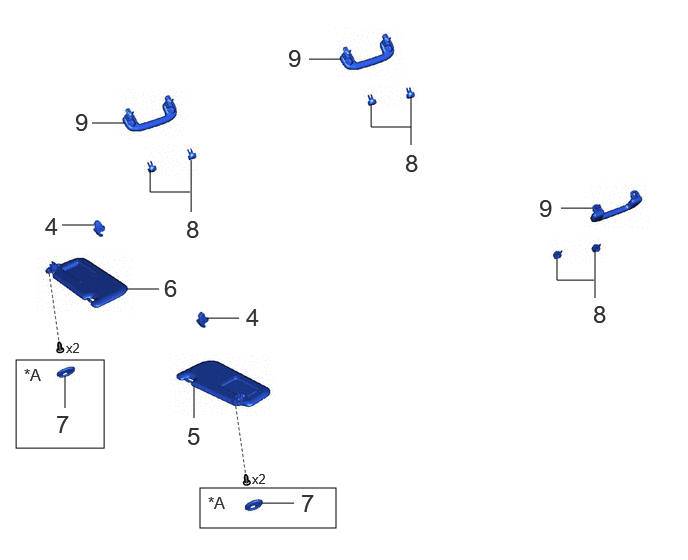

4	VISER HOLDER	74348	-	-	-
5	VISOR ASSEMBLY LH	74320	-	-	-
6	VISOR ASSEMBLY RH	74310	-	-	-
7	VISOR BRACKET COVER	74325	-	-	-
8	ASSIST GRIP COVER	74612	-	-	-
9	ASSIST GRIP SUB-ASSEMBLY	74610A	-	-	-

w/ Cover

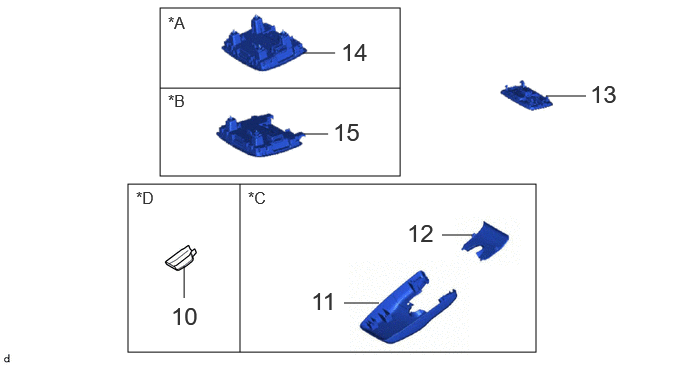

1.667,0.083 4.167,1.833 2.5,1.75 1.333,1.917 5.583,3.667 4.25,1.75 3.156,0.552 3.49,0.552 false 3.167,1.396 3.417,1.396 false 5.688,1 6.104,1 false 4.604,2.448 4.917,2.448 false 3.583,3.156 3.948,3.156 false 1.667,0.917 4.167,0.917 false 2.5,3.667 2.5,1.917 false 1.917,3.104 1.917,2.771 false 1.75,0.135 2.125,0.375 0.375,0.24 12 false *A 1.75,0.948 2.302,1.302 0.552,0.354 12 false *B 2.583,1.958 2.958,2.198 0.375,0.24 12 false *C 3.552,0.396 4.104,0.75 0.552,0.354 18 false 14 3.469,1.229 4.021,1.583 0.552,0.354 18 false 15 6.146,0.833 6.698,1.188 0.552,0.354 18 false 13 4.24,2.281 4.792,2.635 0.552,0.354 18 false 12 3.24,2.99 3.792,3.344 0.552,0.354 18 false 11 1.417,1.958 1.792,2.198 0.375,0.24 12 false *D 1.781,3.146 2.333,3.5 0.552,0.354 18 false 10

Procedure		Part Name Code
10	TOLL COLLECTION COVER	86981	-	-	-
11	NO. 1 FORWARD RECOGNITION COVER	86466D	-	-	-
12	NO. 2 FORWARD RECOGNITION COVER	86466E	-	-	-
13	NO. 1 ROOM LIGHT ASSEMBLY	81240	-	-	-
14	MAP LIGHT ASSEMBLY	81260A	-	-	-
15	MAP LIGHT ASSEMBLY	81260A	-	-	-

*A	w/o Sliding Roof	*B	w/ Sliding Roof
*C	w/ Pre-collision System	*D	w/ Electronic Toll Collection System

2.167,0.438 2.5,0.438 false 4.854,0.479 5.188,0.479 false 5.615,1.656 5.615,1.323 false 5.573,2.083 5.906,2.083 false 2.844,1.583 3.177,1.583 false 2.344,2.917 2.677,2.917 false 4.094,3.281 4.427,3.281 false 3.667,4.688 4,4.688 false 3.667,5.25 4.083,5.25 false 5.24,1.385 5.552,1.583 0.313,0.198 10 false x2 5.667,1.26 5.979,1.458 0.313,0.198 10 false x2 2.563,0.292 3.115,0.646 0.552,0.354 18 false 17 4.552,0.344 5.104,0.698 0.552,0.354 18 false 21 3.229,1.448 3.781,1.802 0.552,0.354 18 false 19 2.719,2.792 3.271,3.146 0.552,0.354 18 false 22 5.5,1.646 6.052,2 0.552,0.354 18 false 22 5.958,1.958 6.51,2.313 0.552,0.354 18 false 16 3.802,3.115 4.354,3.469 0.552,0.354 18 false 20 3.375,4.563 3.927,4.917 0.552,0.354 18 false 22 3.354,5.094 3.906,5.448 0.552,0.354 18 false 18

Procedure		Part Name Code

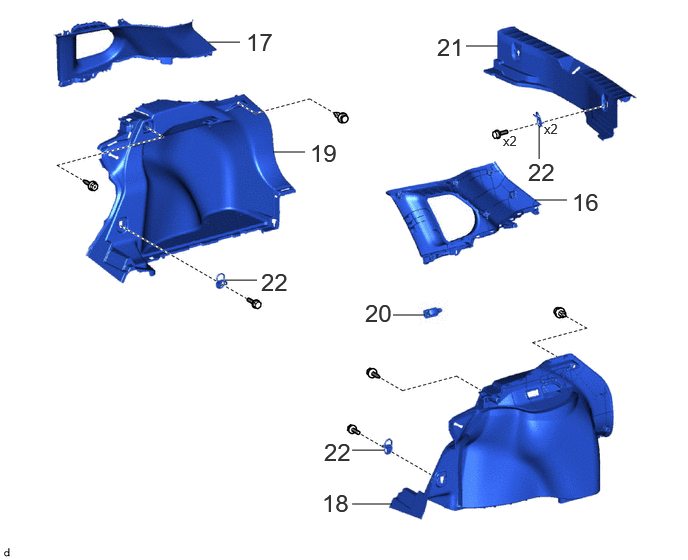

16	ROOF SIDE INNER GARNISH ASSEMBLY LH	62480A	-	-	-
17	ROOF SIDE INNER GARNISH ASSEMBLY RH	62470A	-	-	-
18	DECK TRIM SIDE PANEL ASSEMBLY LH	64740C	-	-	-
19	DECK TRIM SIDE PANEL ASSEMBLY RH	64730B	-	-	-
20	LUGGAGE COMPARTMENT LIGHT ASSEMBLY	81330	-	-	-
21	REAR DECK TRIM COVER	64716D	-	-	-
22	LUGGAGE HOLD BELT STRIKER ASSEMBLY	58460D	-	-	-

0.417,2.333 4.5,4.667 4.083,2.333 3.563,1.385 4.396,1.552 0.833,0.167 3.521,1.344 4.438,1.594 0.917,0.25 3.542,1.958 4.458,2.208 0.917,0.25 3.583,2 4.417,2.167 0.833,0.167 2.833,1.083 3.167,1.083 false 5.781,2.083 6.115,2.083 false 3.406,1.833 3.74,1.833 false 2.792,4 3.125,4 false 1.406,3.583 1.74,3.583 false 4.771,2.75 4.771,2.417 false 3.229,1.802 3.396,1.469 3.396,1.469 3.563,1.469 true 4.417,2.083 4.583,2.083 4.583,2.083 4.75,2.417 true 1.438,2.51 1.75,2.708 0.313,0.198 10 false x2 3.396,3.125 3.708,3.323 0.313,0.198 10 false x2 0.5,2.427 0.875,2.667 0.375,0.24 12 false *A 3.229,0.938 3.781,1.292 0.552,0.354 18 false 24 3.813,1.667 4.365,2.021 0.552,0.354 18 false 26 4.667,2.771 5.219,3.125 0.552,0.354 18 false 25 6.177,1.938 6.729,2.292 0.552,0.354 18 false 23 1.792,3.448 2.344,3.802 0.552,0.354 18 false 28 2.49,3.875 3.042,4.229 0.552,0.354 18 false 27 3.646,1.385 5.365,1.542 1.719,0.156 8 false 18.1 (185, 13) 3.667,2.01 5.385,2.167 1.719,0.156 8 false 18.1 (185, 13)

Procedure		Part Name Code

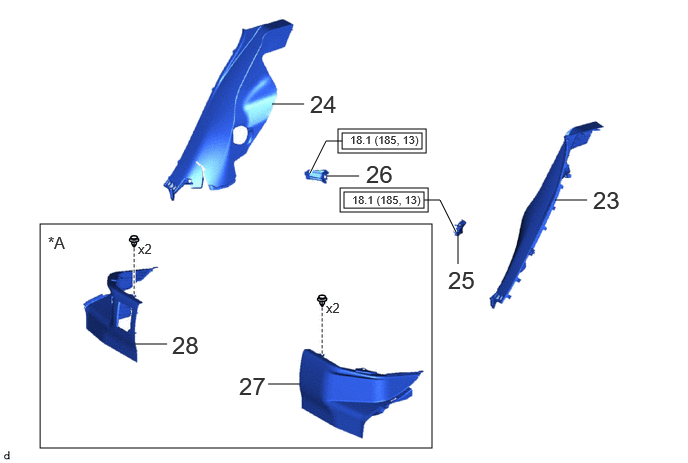

23	REAR SEAT SIDE GARNISH LH	62552F	-	-	-
24	REAR SEAT SIDE GARNISH RH	62551F	-	-	-
25	REAR SEATBACK HINGE SUB-ASSEMBLY LH	71304C	-	-	-
26	REAR SEATBACK HINGE SUB-ASSEMBLY RH	71303C	-	-	-
27	REAR UNDER SIDE COVER LH	76974E	-	-	-
28	REAR UNDER SIDE COVER RH	76973E	-	-	-

*A	for HEV Model	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

0.25,3.667 2.167,5.667 1.917,2 5,3.667 7,5.667 2,2 0.75,3.417 1.5,3.583 0.75,0.167 0.708,3.375 1.542,3.625 0.833,0.25 2.865,4.667 3.615,4.833 0.75,0.167 2.823,4.625 3.656,4.875 0.833,0.25 1.188,0.5 1.521,0.5 false 0.667,3 0.667,2.667 false 1.49,2.833 1.823,2.833 false 3.594,1.438 3.927,1.438 false 6.219,2.833 6.469,2.833 false 4.104,2.083 4.438,2.083 false 2.115,3.375 2.448,3.375 false 2.708,4.188 3.042,4.188 false 3.354,3.75 3.688,3.75 false 4.5,5.104 4.5,4.771 false 1.396,4.177 1.729,4.177 false 1.427,5.083 1.76,5.083 false 5.417,4.417 5.75,4.417 false 5.469,5.385 5.802,5.385 false 0.25,4.75 2.167,4.75 false 5,4.75 7,4.75 false 3.229,4.667 3.229,4.333 false 1.5,3.5 1.667,3.5 1.667,3.5 1.833,3.333 false 1.354,1.104 1.667,1.302 0.313,0.198 10 false x2 4.063,2.531 4.375,2.729 0.313,0.198 10 false x2 0.292,3.708 0.667,3.948 0.375,0.24 12 false *A 0.292,4.792 0.667,5.031 0.375,0.24 12 false *B 5.042,3.708 5.417,3.948 0.375,0.24 12 false *A 5.042,4.792 5.417,5.031 0.375,0.24 12 false *B 1.594,0.354 2.146,0.708 0.552,0.354 18 false 30 0.552,3.021 1.104,3.375 0.552,0.354 18 false 32 4.208,1.313 4.76,1.667 0.552,0.354 18 false 37 1.885,2.688 2.438,3.042 0.552,0.354 18 false 34 2.49,3.24 3.042,3.594 0.552,0.354 18 false 35 2.427,4.063 2.979,4.417 0.552,0.354 18 false 35 3.073,3.615 3.625,3.969 0.552,0.354 18 false 33 3.823,1.948 4.375,2.302 0.552,0.354 18 false 29 6.76,2.698 7.083,3.052 0.323,0.354 18 false 36 1.781,4.052 2.333,4.406 0.552,0.354 18 false 39 1.813,4.958 2.365,5.313 0.552,0.354 18 false 39 5.115,4.281 5.667,4.635 0.552,0.354 18 false 38 4.385,5.125 4.938,5.479 0.552,0.354 18 false 31 5.188,5.24 5.74,5.594 0.552,0.354 18 false 38 2.938,4.667 3.917,4.823 0.979,0.156 8 false 42 (428, 31) 0.833,3.417 1.813,3.573 0.979,0.156 8 false 42 (428, 31)

Procedure		Part Name Code

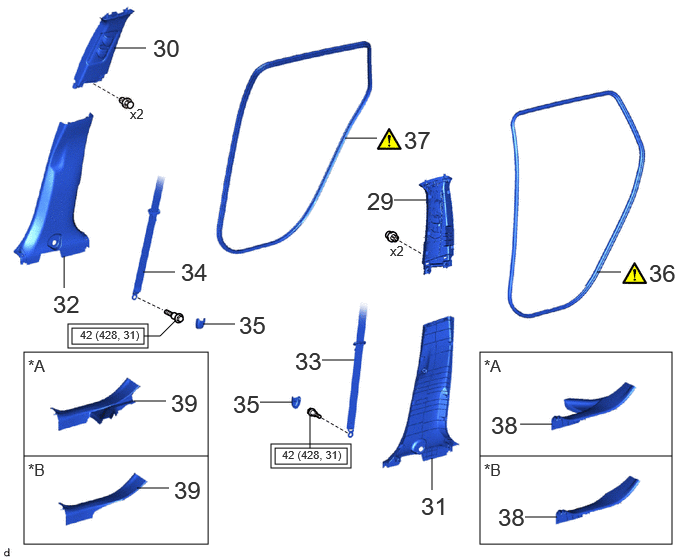

29	CENTER PILLER UPPER GARNISH LH	62420A	-	-	-
30	CENTER PILLAR UPPER GARNISH RH	62410A	-	-	-
31	CENTER PILLAR LOWER GARNISH LH	62414A	-	-	-
32	CENTER PILLAR LOWER GARNISH RH	62413A	-	-	-
33	FRONT SEAT OUTER BELT ASSEMBLY LH	73220	-	-	-
34	FRONT SEAT OUTER BELT ASSEMBLY RH	73210	-	-	-
35	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
36	REAR DOOR OPENING TRIM WEATHERSTRIP LH	62332A	(202307,999999,_58,_112291,_0501087,RM100000002BHCK_02_0266,)	-	-
37	REAR DOOR OPENING TRIM WEATHERSTRIP RH	62331A	(202307,999999,_58,_112291,_0501087,RM100000002BHCK_02_0267,)	-	-
38	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
39	REAR DOOR SCUFF PLATE RH	67917A	-	-	-

*A	for Gasoline Model	*B	for HEV Model
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

1.521,0.198 1.854,0.198 false 6,0.521 6.333,0.521 false 0.958,1.031 1.292,1.031 false 5.042,0.927 5.458,0.927 false 2.385,2.958 2.802,2.958 false 5.948,2.917 6.365,2.917 false 0.917,5.469 1.25,5.469 false 2.75,5.302 2.75,4.969 false 3.927,5.323 4.26,5.323 false 6.333,5.208 6.333,4.875 false 1.365,0.094 1.521,0.292 0.156,0.198 10 false ● 6.385,0.406 6.542,0.604 0.156,0.198 10 false ● 1.958,0.146 2.271,0.344 0.313,0.198 10 false x2 5.99,0.531 6.302,0.729 0.313,0.198 10 false x2 0.615,0.844 1.01,1.167 0.396,0.323 18 false 41 5.781,0.781 6.333,1.135 0.552,0.354 18 false 40 3.115,2.813 3.667,3.167 0.552,0.354 18 false 43 6.698,2.76 7.115,3.063 0.417,0.302 18 false 42 1.302,5.313 1.656,5.667 0.354,0.354 18 false 45 2.646,5.333 3.021,5.698 0.375,0.365 18 false 47 3.625,5.177 4.01,5.521 0.385,0.344 18 false 44 6.229,5.229 6.563,5.583 0.333,0.354 18 false 46

Procedure		Part Name Code

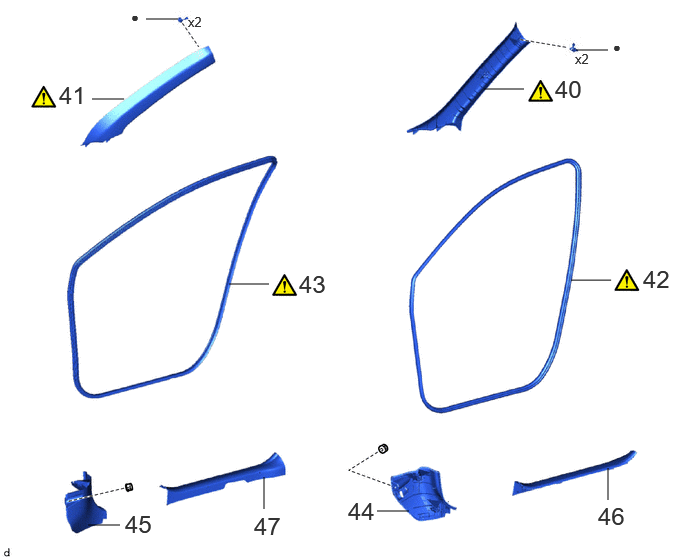

40	FRONT PILLAR GARNISH ASSEMBLY LH	62212B	(202307,999999,_58,_112291,_0501087,RM100000002BHCK_02_0104,)	-	-
41	FRONT PILLAR GARNISH ASSEMBLY RH	62211U	(202307,999999,_58,_112291,_0501087,RM100000002BHCK_02_0104,)	-	-
42	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	62312B	(202307,999999,_58,_112291,_0501087,RM100000002BHCK_02_0267,)	-	-
43	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	62311B	(202307,999999,_58,_112291,_0501087,RM100000002BHCK_02_0267,)	-	-
44	COWL SIDE TRIM SUB-ASSEMBLY LH	62112A	-	-	-
45	COWL SIDE TRIM SUB-ASSEMBLY RH	62111C	-	-	-
46	FRONT DOOR SCUFF PLATE LH	67914B	-	-	-
47	FRONT DOOR SCUFF PLATE RH	67913B	-	-	-

●

Non-reusable part

3,2.417 3,2.083 false 0.792,3.083 0.792,2.667 false 0.781,2.896 0.583,2.896 0.583,2.896 0.583,2.146 false 5.313,0.875 4.979,0.875 false 5.917,2.51 5.917,2.177 false 0.625,3.177 0.781,3.375 0.156,0.198 10 false ● 2.885,2.479 3.438,2.833 0.552,0.354 18 false 51 5.802,2.552 6.354,2.906 0.552,0.354 18 false 49 5.385,0.729 5.938,1.083 0.552,0.354 18 false 50 0.771,3.146 1.323,3.5 0.552,0.354 18 false 48

Procedure		Part Name Code

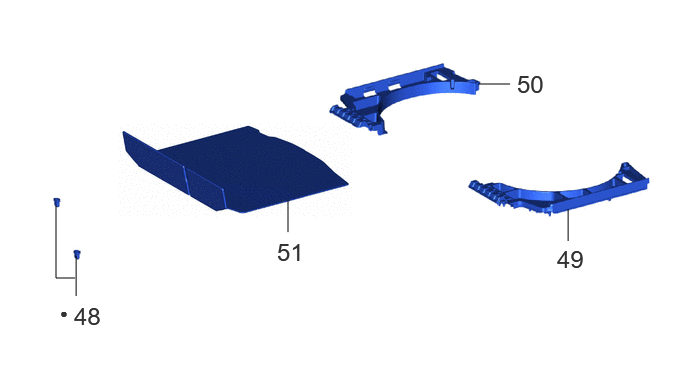

48	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
49	DECK FLOOR BOX LH	64997	-	-	-
50	DECK FLOOR BOX RH	64995	-	-	-
51	DECK BOARD ASSEMBLY	58410B	-	-	-

●

Non-reusable part

PROCEDURE

Hide Display 63310 1.INSTALL ROOF HEADLINING ASSEMBLY (for Normal Roof)

HINT:: The illustrations are representative examples, and details may differ.

0.365,0.031 0.646,0.385 0.281,0.354 18 false i 3.542,0.031 4.146,0.396 0.604,0.365 18 false ii, iii

Install in this Direction

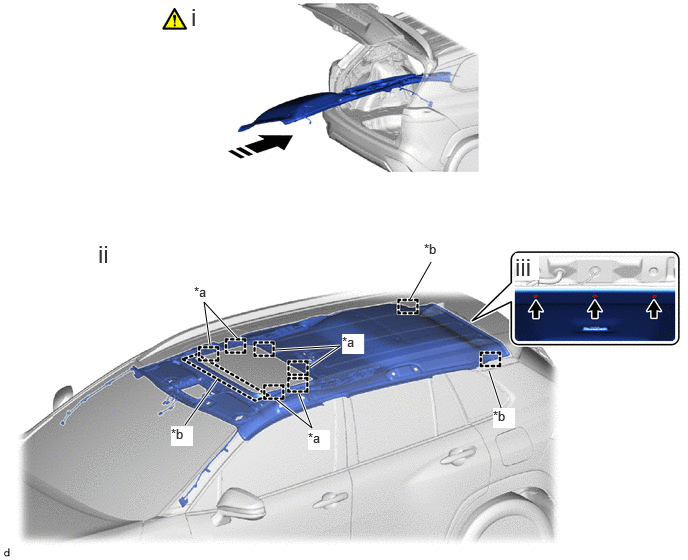

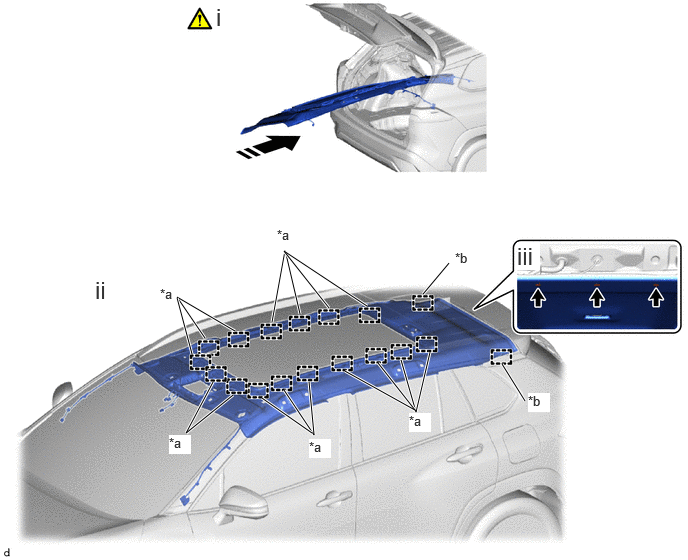

Put the roof headlining assembly back into the vehicle through the back door as shown in the illustration.

NOTICE:: Do not damage the roof headlining assembly or vehicle interior.

ii.

Engage the guides to install the roof headlining assembly.

iii.

Install the 3 clips.

3.865,0.052 4.146,0.406 0.281,0.354 18 false ii 0.271,0.063 0.552,0.417 0.281,0.354 18 false i 0.271,2.052 0.552,2.406 0.281,0.354 18 false iii 3.854,2.052 4.135,2.406 0.281,0.354 18 false iv

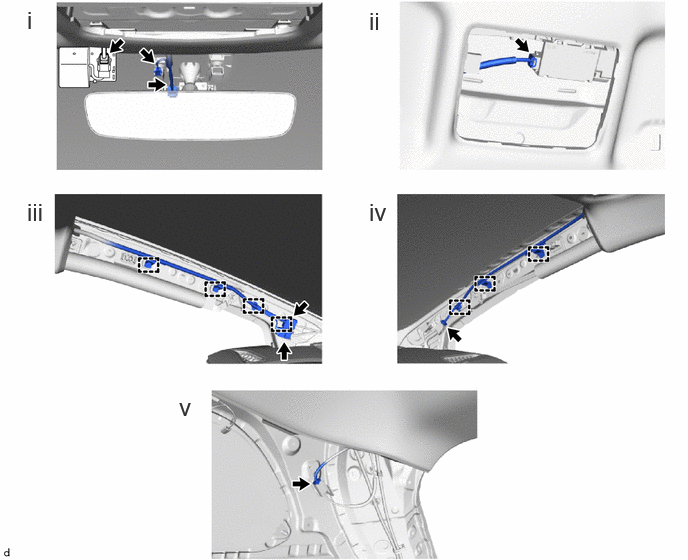

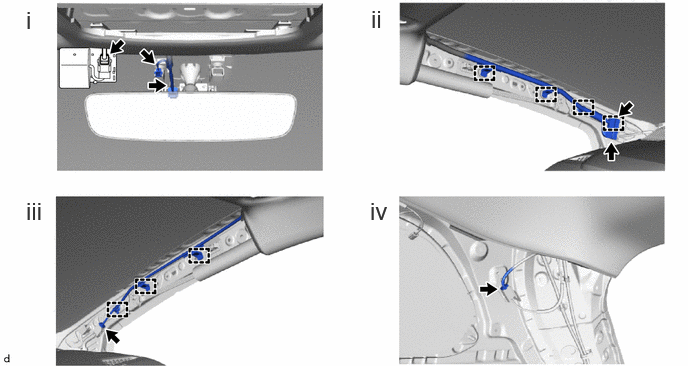

for Windshield Glass Side:

1. Connect each connector.

ii.

for Front Pillar LH Side:

1. Remove the protective cover.

2. Connect the 2 connectors.

3. Engage the clamps.

4. Install the protective cover.

iii.

for Front Pillar RH Side:

1. Remove the protective cover.

2. Connect the connector.

3. Engage the clamps.

4. Install the protective cover.

iv.

for Rear Pillar RH Side:

1. Connect the connector.

Hide Display 63310 2.INSTALL ROOF HEADLINING ASSEMBLY (for Moon Roof)

HINT:: The illustrations are representative examples, and details may differ.

1.927,4.427 2.26,3.958 true 3.115,4.104 3.25,4.458 3.25,4.458 2.885,4.167 true 2.865,3.646 3.542,3.604 3.542,3.604 3.229,3.823 true 2.188,3.594 2.125,3.146 2.125,3.146 2.469,3.521 true 5.219,4.25 5.094,3.865 true 4.271,3.115 4.49,2.729 true 1.99,0.031 2.271,0.385 0.281,0.354 18 false i 1.021,2.5 1.302,2.854 0.281,0.354 18 false ii 5.365,2.635 5.615,2.917 0.25,0.281 18 true iii 2.021,2.958 2.25,3.167 0.229,0.208 10 false *a 3.208,4.479 3.438,4.688 0.229,0.208 10 true *a 3.563,3.479 3.792,3.688 0.229,0.208 10 true *a 1.781,4.438 2.01,4.646 0.229,0.208 10 true *b 4.417,2.51 4.646,2.719 0.229,0.208 10 true *b 5.135,4.25 5.365,4.458 0.229,0.208 10 true *b

*a	Fastener	*b	Guide
	Install in this Direction	-	-

Put the roof headlining assembly back into the vehicle through the back door as shown in the illustration.

NOTICE:: Do not damage the roof headlining assembly or vehicle interior.

ii.

Engage the fasteners and guides to install the roof headlining assembly.

iii.

Install the 3 clips.

0.281,0.063 0.563,0.417 0.281,0.354 18 false i 3.844,0.073 4.125,0.427 0.281,0.354 18 false ii 0.281,2.063 0.563,2.417 0.281,0.354 18 false iii 3.844,2.063 4.125,2.417 0.281,0.354 18 false iv 1.865,4.094 2.146,4.448 0.281,0.354 18 false v

for Windshield Glass Side:

1. Connect each connector.

ii.

for Map Light Side:

1. Connect the connector.

iii.

for Front Pillar LH Side:

1. Remove the protective cover.

2. Connect the 2 connectors.

3. Engage the clamps.

4. Install the protective cover.

iv.

for Front Pillar RH Side:

1. Remove the protective cover.

2. Connect the connector.

3. Engage the clamps.

4. Install the protective cover.

for Rear Pillar RH Side:

1. Connect the connector.

Hide Display 63310 3.INSTALL ROOF HEADLINING ASSEMBLY (for Panoramic Moon Roof)

HINT:: The illustrations are representative examples, and details may differ.

2.958,4.063 3.271,4.531 3.271,4.531 3.219,3.979 true 4.177,3.75 4.333,4.292 4.333,4.292 4.479,3.667 true 2.135,3.521 1.844,3.094 1.844,3.094 2.448,3.448 true 5.469,4.177 5.229,3.792 true 4.406,3.063 4.677,2.74 true 3.594,3.865 4.323,4.271 4.323,4.271 3.938,3.781 true 3.25,4.51 2.729,4.146 true 2.219,3.979 1.938,4.51 1.938,4.51 2.427,4.115 true 2,3.688 1.844,3.104 true 2.833,3.354 2.969,2.604 2.969,2.604 3.125,3.271 true 3.427,3.208 2.958,2.615 2.958,2.615 3.823,3.188 true 2.25,0.031 2.417,0.323 0.167,0.292 18 false i 0.99,2.875 1.229,3.167 0.24,0.292 18 true ii 5.385,2.521 5.625,2.813 0.24,0.292 18 true iii 1.667,2.979 1.979,3.177 0.313,0.198 10 false *a 2.885,2.365 3.115,2.563 0.229,0.198 10 true *a 3.219,4.573 3.448,4.771 0.229,0.198 10 true *a 5.5,4.094 5.729,4.292 0.229,0.198 10 true *b 4.74,2.604 4.969,2.802 0.229,0.198 10 false *b 4.26,4.302 4.49,4.5 0.229,0.198 10 true *a 1.76,4.531 1.99,4.729 0.229,0.198 10 true *a

*a	Fastener	*b	Guide
	Install in this Direction	-	-

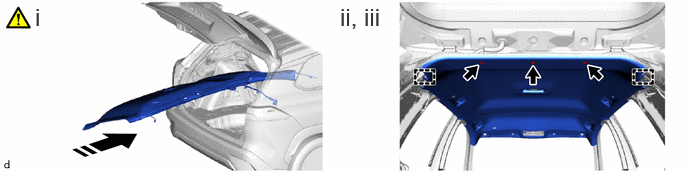

Put the roof headlining assembly back into the vehicle through the back door as shown in the illustration.

NOTICE:: Do not damage the roof headlining assembly or vehicle interior.

ii.

Engage the fasteners and guides to install the roof headlining assembly.

iii.

Install the 3 clips.

for Windshield Glass Side:

1. Connect each connector.

ii.

for Map Light Side:

1. Connect the connector.

iii.

for Front Pillar LH Side:

1. Remove the protective cover.

2. Connect the 2 connectors.

3. Engage the clamps.

4. Install the protective cover.

iv.

for Front Pillar RH Side:

1. Remove the protective cover.

2. Connect the connector.

3. Engage the clamps.

4. Install the protective cover.

for Rear Pillar RH Side:

1. Connect the connector.

Hide Display 74348 4.INSTALL VISOR HOLDER

Hide Display 74320 5.INSTALL VISOR ASSEMBLY LH

Hide Display 74310 6.INSTALL VISOR ASSEMBLY RH

Hide Display 74325 7.INSTALL VISOR BRACKET COVER (w/ Cover)

Hide Display 74612 8.INSTALL ASSIST GRIP COVER

Use the same procedure for all of the assist grip cover.

Hide Display 74610A 9.INSTALL ASSIST GRIP SUB-ASSEMBLY

Hide Display 86981 10.INSTALL TOLL COLLECTION COVER (w/ Electronic Toll Collection System)

Hide Display 86466D 11.INSTALL NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Hide Display 86466E 12.INSTALL NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Hide Display 81240 13.INSTALL NO. 1 ROOM LIGHT ASSEMBLY

Hide Display 81260A 14.INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)

Hide Display 81260A 15.INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)

Hide Display 62480A 16.INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH

Hide Display 62470A 17.INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH

Hide Display 64740C 18.INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

Hide Display 64730B 19.INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

Hide Display 81330 20.INSTALL LUGGAGE COMPARTMENT LIGHT ASSEMBLY

Hide Display 64716D 21.INSTALL REAR DECK TRIM COVER

Hide Display 58460D 22.INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

Hide Display 62552F 23.INSTALL REAR SEAT SIDE GARNISH LH

Hide Display 62551F 24.INSTALL REAR SEAT SIDE GARNISH RH

Hide Display 71304C 25.INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY LH

Torque:: 18.1 N*m (185 kgf*cm, 13 ft.*lbf)

Hide Display 71303C 26.INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY RH

Hide Display 76974E 27.INSTALL REAR UNDER SIDE COVER LH (for HEV Model)

Hide Display 76973E 28.INSTALL REAR UNDER SIDE COVER RH (for HEV Model)

Hide Display 62420A 29.INSTALL CENTER PILLER UPPER GARNISH LH

Hide Display 62410A 30.INSTALL CENTER PILLAR UPPER GARNISH RH

Hide Display 62414A 31.INSTALL CENTER PILLAR LOWER GARNISH LH

Hide Display 62413A 32.INSTALL CENTER PILLAR LOWER GARNISH RH

Hide Display 73220 33.CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>INSTALLATION202307,999999,_58,_114202,_0509300,RM100000002BZY8_01_0069,

Hide Display 73210 34.CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

Hide Display 73233 35.INSTALL LAP BELT OUTER ANCHOR COVER

Hide Display 62332A 36.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click here(

202307,999999,_59,_113746,_0510836,RM100000002CODK_01_0023,)

Hide Display 62331A 37.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

Hide Display 67918A 38.INSTALL REAR DOOR SCUFF PLATE LH

Hide Display 67917A 39.INSTALL REAR DOOR SCUFF PLATE RH

Hide Display 62212B 40.INSTALL FRONT PILLAR GARNISH ASSEMBLY LH

1.865,1.615 2.427,1.354 true 1.688,1.542 2,1.74 0.313,0.198 10 false *a 0.323,0.094 0.604,0.448 0.281,0.354 18 false i 3.927,0.031 4.208,0.385 0.281,0.354 18 false ii 0.26,2 0.542,2.354 0.281,0.354 18 false iii 3.885,1.958 4.167,2.313 0.281,0.354 18 false iv

*a	Protective Cover	-	-
	Install in this Direction (1)		Install in this Direction (2)

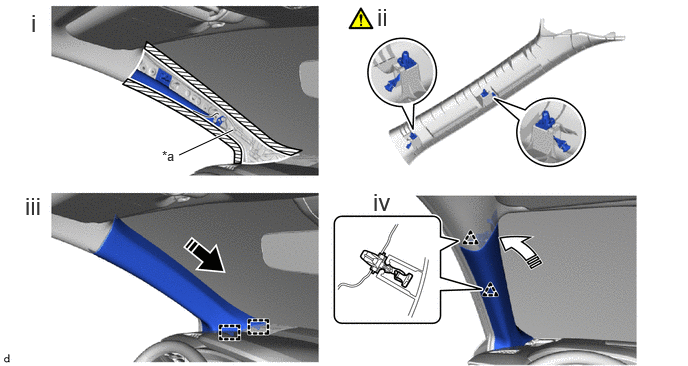

Remove the protective cover.

ii.

Install 2 new front pillar garnish clips to the front pillar garnish assembly LH.

NOTICE:: When installing the front pillar garnish clip, make sure to install it in the correct position and facing in the correct direction.

iii.

Engage the guides as shown in the illustration.

iv.

Engage the front pillar garnish clips to install the front pillar garnish assembly LH as shown in the illustration.

Hide Display 62211U 41.INSTALL FRONT PILLAR GARNISH ASSEMBLY RH

Hide Display 62312B 42.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here(

202201,999999,_59,_113746,_0510834,RM1000000020B7H_02_0008,)

Hide Display 62311B 43.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

Hide Display 62112A 44.INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

Hide Display 62111C 45.INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

Hide Display 67914B 46.INSTALL FRONT DOOR SCUFF PLATE LH

Hide Display 67913B 47.INSTALL FRONT DOOR SCUFF PLATE RH

Hide Display 72693 48.INSTALL REAR SEAT CUSHION LOCK HOOK

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>INSTALLATION202307,999999,_58,_114203,_0509293,RM100000002BZY2,

Hide Display 64997 49.INSTALL DECK FLOOR BOX LH

Hide Display 64995 50.INSTALL DECK FLOOR BOX RH

Hide Display 58410B 51.INSTALL DECK BOARD ASSEMBLY
