Vehicle Interior
_112289
METER / GAUGE / DISPLAY
_0601632
TRIP SWITCH
A
METER / GAUGE / DISPLAY TRIP SWITCH REMOVAL
CAUTION / NOTICE / HINT

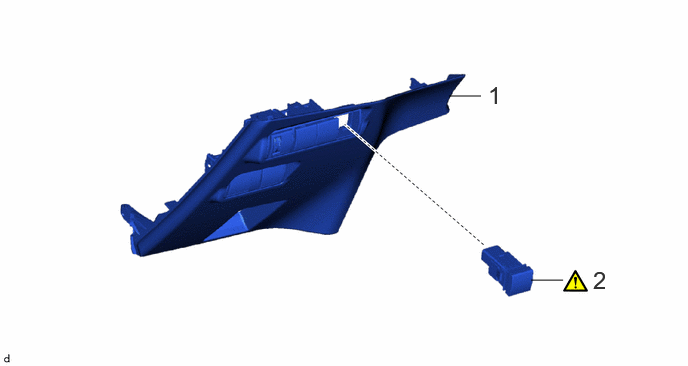

COMPONENTS (REMOVAL)
4.677,1 5.01,1
false
5.531,2.917 5.865,2.917
false
5.083,0.844 5.365,1.198
0.281,0.354
18
false
1
6.177,2.771 6.458,3.125
0.281,0.354
18
false
2
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | LOWER INSTRUMENT PANEL FINISH PANEL | 55432B | - | - | - |
| 2 | TRIP SWITCH | 84975 | ( 202307,999999,_58,_112289,_0601632,RM100000002BH9Q_01_0003,)
|
- | - |
PROCEDURE
55432B
1.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL
84975
2.REMOVE TRIP SWITCH
a.
0.375,0.031 0.656,0.385
0.281,0.354
18
false
i
i.

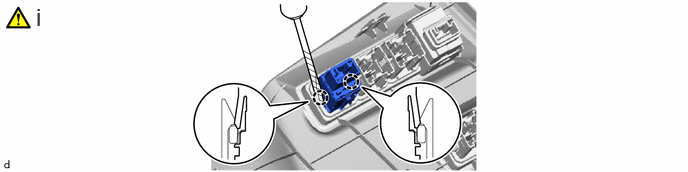

Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the trip switch.
