RM38T0EC _59 Vehicle Exterior _112294 LIGHTING (EXT) _0501119 HEADLIGHT LEVELING SWITCH A

LIGHTING (EXT) HEADLIGHT LEVELING SWITCH REMOVAL

CAUTION / NOTICE / HINT

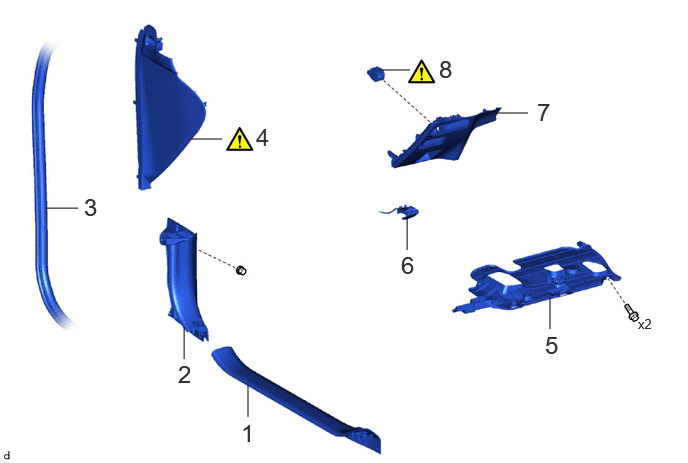

COMPONENTS (REMOVAL)

E472773N01

0.479,2.167 0.813,2.167 false 1.917,3.74 1.917,3.406 false 2.583,4.344 2.583,4.01 false 4.24,2.604 4.24,2.271 false 5.729,3.427 5.729,3.094 false 3.979,0.729 4.271,0.729 false 1.979,1.448 2.313,1.448 false 5.167,1.177 5.5,1.177 false 2.51,4.365 2.792,4.719 0.281,0.354 18 false 1 1.854,3.75 2.135,4.104 0.281,0.354 18 false 2 0.875,2.01 1.156,2.365 0.281,0.354 18 false 3 2.667,1.281 2.948,1.635 0.281,0.354 18 false 4 5.677,3.448 5.958,3.802 0.281,0.354 18 false 5 4.177,2.615 4.458,2.969 0.281,0.354 18 false 6 5.594,1.021 5.875,1.375 0.281,0.354 18 false 7 4.573,0.573 4.854,0.927 0.281,0.354 18 false 8 6.646,3.292 6.958,3.49 0.313,0.198 10 false x2

Procedure		Part Name Code
1	FRONT DOOR SCUFF PLATE LH	67914B	-	-	-
2	COWL SIDE TRIM SUB-ASSEMBLY LH	62112A	-	-	-
3	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	62312B	-	-	-
4	NO. 1 INSTRUMENT SIDE PANEL	55317E	(202201,999999,_59,_112294,_0501119,RM100000001Z4ZP_01_0063,)	-	-
5	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
6	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
7	LOWER INSTRUMENT PANEL FINISH PANEL	55432B	-	-	-
8	HEADLIGHT LEVELING SWITCH	84152	(202201,999999,_59,_112294,_0501119,RM100000001Z4ZP_01_0067,)	-	-

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202201,202307,_58,_112291,_0501087,RM100000001Z4VN_02_0001,202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0001,

Hide Display 62112A 2.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202201,202307,_58,_112291,_0501087,RM100000001Z4VN_02_0268,202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0268,

Hide Display 62312B 3.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202201,202307,_58,_112291,_0501085,RM100000001Z4VH_01_0114,202307,999999,_58,_112291,_0501085,RM100000002BHCD_01_0114,

Hide Display 55317E 4.REMOVE NO. 1 INSTRUMENT SIDE PANEL

Z101186

Click here(

Click here

202201,202307,_58,_112291,_0501085,RM100000001Z4VH_01_0010,202307,999999,_58,_112291,_0501085,RM100000002BHCD_01_0010,)

Hide Display 55606 5.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202201,202307,_58,_112291,_0501086,RM100000001Z4VL_01_0060,202307,999999,_58,_112291,_0501086,RM100000002BHCH_01_0060,

Hide Display 53601 6.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202201,202307,_58,_112291,_0501085,RM100000001Z4VH_01_0011,202307,999999,_58,_112291,_0501085,RM100000002BHCD_01_0011,

Hide Display 55432B 7.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202201,202307,_58,_112291,_0501085,RM100000001Z4VH_01_0044,202307,999999,_58,_112291,_0501085,RM100000002BHCD_01_0044,

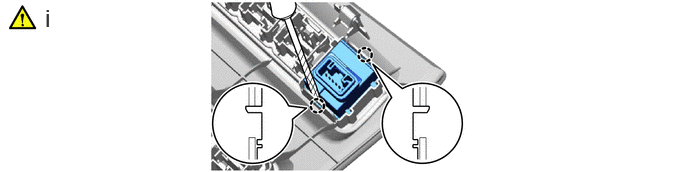

Hide Display 84152 8.REMOVE HEADLIGHT LEVELING SWITCH

a.

E445577N01

0.469,0.042 0.708,0.344 0.24,0.302 18 false i

i.

Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the headlight leveling switch.
