NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM(Production Date from 2023/04)  Sound cannot be Heard Sound Quality is Poor only when Replaying USB Storage Device

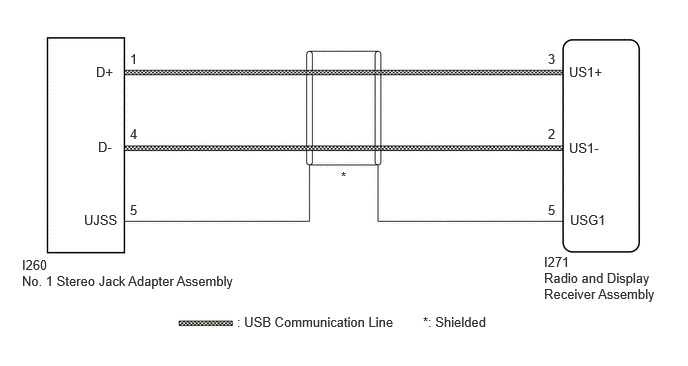

WIRING DIAGRAM

E427274E92
1.354,0.531 1.531,0.708 0.177,0.177 10 false 1 1.021,1.448 1.635,1.646 0.615,0.198 10 false D- 0.875,2.208 1.49,2.406 0.615,0.198 10 false UJSS 5.938,2.208 6.552,2.406 0.615,0.198 10 false USG1 5.927,1.458 6.542,1.656 0.615,0.198 10 false US1- 5.927,0.667 6.542,0.865 0.615,0.198 10 false US1+ 0.229,2.677 0.844,2.875 0.615,0.198 10 false I260 0.229,2.844 2.708,3.135 2.479,0.292 10 false No. 1 Stereo Jack Adapter Assembly 2.469,3.271 5.073,3.5 2.604,0.229 10 false : USB Communication Line 3.552,1.76 4.188,1.979 0.635,0.219 10 false * 5.667,2.646 6.281,2.844 0.615,0.198 10 false I271 5.667,2.813 6.865,3.333 1.198,0.521 10 false Radio and Display Receiver Assembly 5.708,0.531 5.885,0.708 0.177,0.177 10 false 3 1.354,1.313 1.531,1.49 0.177,0.177 10 false 4 1.354,2.104 1.729,2.385 0.375,0.281 10 false 5 5.708,2.104 5.885,2.281 0.177,0.177 10 false 5 5.708,1.313 5.885,1.49 0.177,0.177 10 false 2 1,0.667 1.615,0.865 0.615,0.198 10 false D+ 4.406,3.271 5.448,3.583 1.042,0.313 10 false *: Shielded

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (Production Date from 2023/04)>PRECAUTION


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - NO. 1 STEREO JACK ADAPTER ASSEMBLY)
a.

Disconnect the I271 radio and display receiver assembly connector.


b.

Disconnect the I260 No. 1 stereo jack adapter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I271-2 (US1-) - I260-4 (D-) Always Below 1 Ω
I271-3 (US1+) - I260-1 (D+) Always Below 1 Ω
I271-5 (USG1) - I260-5 (UJSS) Always Below 1 Ω
I271-2 (US1-) - Body ground Always 10 kΩ or higher
I271-3 (US1+) - Body ground Always 10 kΩ or higher
I271-5 (USG1) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.CHECK NO. 1 STEREO JACK ADAPTER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK NO. 1 STEREO JACK ADAPTER ASSEMBLY
a.

Replace the No. 1 stereo jack adapter assembly with a new or known good one.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>STEREO JACK ADAPTER ASSEMBLY>REMOVAL


b.

Check if the problem symptom recurs.


Result:
Result Proceed to
Malfunction disappears A
Malfunction occurs B



A

END (NO. 1 STEREO JACK ADAPTER ASSEMBLY MALFUNCTION)

B

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL
