ADVANCED DRIVER ASSISTANCE SYSTEM MILLIMETER WAVE RADAR SENSOR(Production Date from 2023/04) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during millimeter wave radar sensor assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Millimeter wave radar sensor assembly | Adjust millimeter wave radar sensor assembly | ·
Front Camera System ·
Front Radar Sensor System ·
Automatic High Beam System |
Triangle Target:( 202201,999999,_95,_112293,_0580212,RM1000000028VJ9,)
Flat Surface Target:( 202201,999999,_95,_112293,_0580212,RM1000000028VJA,)
Driving Adjustment:( 202201,999999,_95,_112293,_0580212,RM1000000028VJ8,)
|
CAUTION / NOTICE / HINT

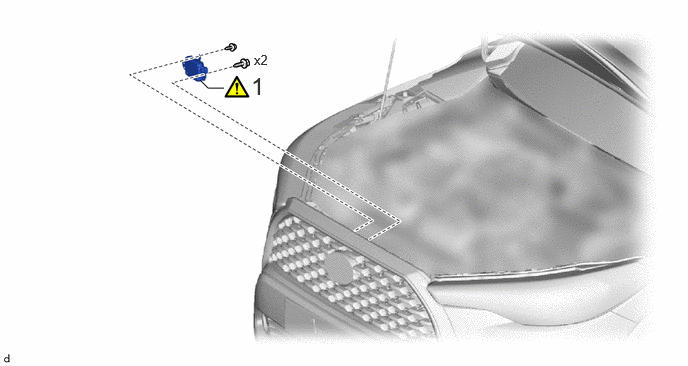

COMPONENTS (REMOVAL)
2.083,0.833 2.167,0.917
2.167,0.917 2.333,0.917
false
2.646,0.542 2.958,0.74
0.313,0.198
10
false
x2
2.615,0.75 2.927,1.073
0.313,0.323
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | 88211B | (202201,999999,_95,_112293,_0580212,RM1000000028VJ5_01_0021,)
|
- | - |
PROCEDURE
88211B

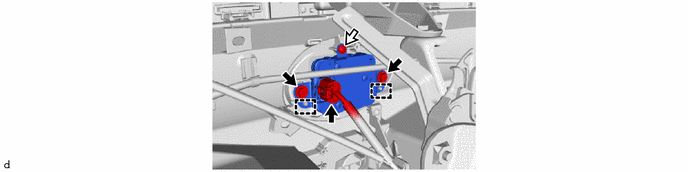

1.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
|
|
|
a.
0,0 0,0
false
|
Bolt |
|
Screw |
