RM38T0EC _51 Engine / Hybrid System _115233 STOP AND START _0514516 ENGINE STOP AND START ECU A

STOP AND START  ENGINE STOP AND START ECU  INSTALLATION


CAUTION / NOTICE / HINT

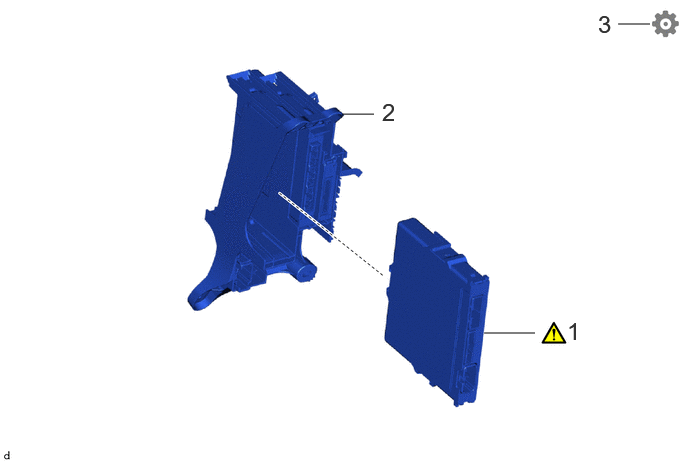

COMPONENTS (INSTALLATION)
A498429N02
3.563,1.188 3.896,1.188 false 5.042,3.469 5.573,3.469 false 6.438,0.25 6.771,0.25 false 5.906,3.302 6.188,3.656 0.281,0.354 18 false 1 3.979,1.021 4.26,1.375 0.281,0.354 18 false 2 6.229,0.104 6.531,0.406 0.302,0.302 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 ENGINE STOP AND START ECU 89261A (Click here) - -
2 NO. 2 CONNECTOR HOLDER 82666H - - -
3 PERFORM REGISTRATION - - - (Click here)

NOTICE:

After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.


PROCEDURE

Hide 89261A 1.INSTALL ENGINE STOP AND START ECU

a.
A498431N01
0.427,0.042 0.708,0.396 0.281,0.354 18 false i

i.

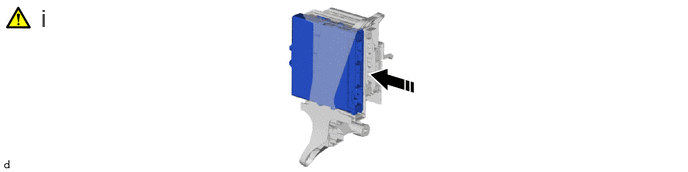

Engage the 2 claws and install the engine stop and start ECU to the ECU integration box RH.

NOTICE:

Make sure that the engine stop and start ECU is securely installed.
