RM38T0EC _56 Audio / Visual / Telematics _115231 TELEMATICS _0512170 TELEMATICS SYSTEM(for TOYOTA Connect) J

TELEMATICS  TELEMATICS SYSTEM(for TOYOTA Connect)  Emergency Call Switch Illumination Circuit

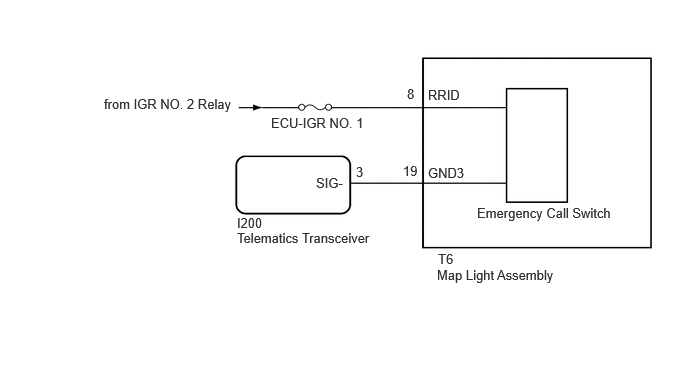

WIRING DIAGRAM

E484671E24
2.469,2.24 2.938,2.406 0.469,0.167 10 false I200 2.469,2.396 4.01,2.635 1.542,0.24 10 false Telematics Transceiver 4.563,2.615 4.938,2.823 0.375,0.208 10 false T6 4.552,2.781 6.542,3.167 1.99,0.385 10 false Map Light Assembly 4.24,0.896 4.5,1.115 0.26,0.219 10 false 8 4.198,1.698 4.51,1.938 0.313,0.24 10 false 19 4.458,0.906 4.844,1.083 0.385,0.177 10 false RRID 1.083,1 2.563,1.25 1.479,0.25 10 false from IGR NO. 2 Relay 4.458,1.719 4.927,1.896 0.469,0.177 10 false GND3 4.969,2.135 6.417,2.313 1.448,0.177 10 false Emergency Call Switch 2.823,1.198 3.938,1.396 1.115,0.198 10 false ECU-IGR NO. 1 3.292,1.823 3.76,2 0.469,0.177 10 false SIG- 3.708,1.708 4.021,1.948 0.313,0.24 10 false 3

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for TOYOTA Connect)>PRECAUTION

·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Before replacing the telematics transceiver, refer to Service Bulletin.



HINT:

Inspect the fuses and relays related to this system before inspecting the suspected areas below.


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (MAP LIGHT ASSEMBLY POWER SOURCE)
a.

Disconnect the I200 telematics transceiver connector.


b.

Disconnect the T6 map light assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I200-3 (SIG-) - T6-19 (GND3) Always Below 1 Ω
I200-3 (SIG-) or T6-19 (GND3) - Body ground Always 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
T6-8 (RRID) - Body Ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

2.INSPECT MAP LIGHT ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.INSPECT MAP LIGHT ASSEMBLY
a.

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Connect 4 1.5 V dry-cell batteries in series.


c.

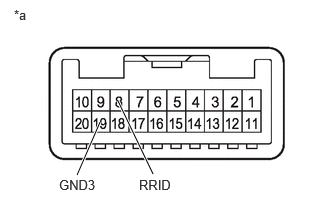

B641819C19
1.594,1.813 1.229,1.052 true 0.802,1.823 1.042,1.271 true 1.448,1.844 2.063,2.042 0.615,0.198 10 false RRID 0.615,1.844 1.229,2.042 0.615,0.198 10 false GND3 0.146,0.073 0.438,0.271 0.292,0.198 10 false *a
*a Component without harness connected
(Map Light Assembly)


Connect a positive (+) lead from the batteries to terminal 8 (RRID), and a negative (-) lead to terminal 19 (GND3) of the map light assembly connector.


d.

Check if the emergency call switch illumination comes on.

OK:

The emergency call switch illumination comes on.



Result:
Proceed to
OK
NG



OK

3.REPLACE TELEMATICS TRANSCEIVER

NG

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL
