RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0512148 ROOF RACK A

EXTERIOR PANELS / TRIM  ROOF RACK  INSTALLATION


CAUTION / NOTICE / HINT

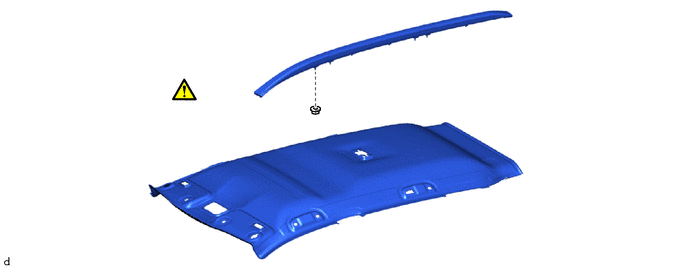

COMPONENTS (INSTALLATION)
B612689
2.177,1.167 2.927,1.333 0.75,0.167 2.344,0.958 2.646,0.958 false 1.271,1.958 1.573,1.958 false 2.927,1.26 3.094,1.26 3.094,1.26 3.24,1.167 false 3.375,1.042 3.688,1.24 0.313,0.198 10 false x4 1.094,1.792 1.396,2.135 0.302,0.344 18 false 2 2.104,0.781 2.406,1.125 0.302,0.344 18 false 1 2.26,1.177 2.927,1.375 0.667,0.198 8 false 26 (265, 19)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 ROOF RACK ASSEMBLY 63470B (Click here) - -
2 ROOF HEADLINING ASSEMBLY 63310 - - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

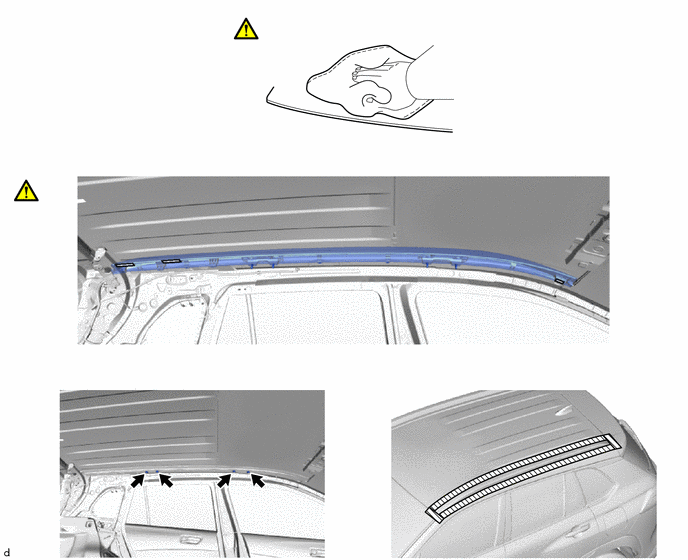

Hide 63470B 1.INSTALL ROOF RACK ASSEMBLY

a.
B612698
1.302,2.781 1.573,3.021 1.573,3.021 1.771,2.74 true 5.594,3.135 5.802,2.948 true 2.719,0.135 3,0.49 0.281,0.354 18 false i 0.448,1.844 0.729,2.198 0.281,0.354 18 false ii 0.719,4.104 0.969,4.427 0.25,0.323 18 true iii 4.146,4.063 4.396,4.385 0.25,0.323 18 true iv 1.479,3.052 1.667,3.26 0.188,0.208 10 true *a 5.427,3.135 5.615,3.344 0.188,0.208 10 true *a
*a Double-sided Tape - -


i.

Clean the vehicle body.

1. Using a heat light, heat the vehicle body.

Standard:
Item Temperature Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F) - -


CAUTION:
·
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body excessively.


2. Remove any remaining double-sided tape from the vehicle body.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the roof rack assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install the roof rack assembly.

1. Using a heat light, heat the vehicle body.

Standard:
Item Temperature Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body excessively.


2. Remove the release papers from the roof rack assembly.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.


3. Install the roof rack assembly.

HINT:

Press the roof rack assembly firmly to install it.



iii.

Install the 4 nuts.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)


iv.

Remove the protective tape.
