TELEMATICS MAYDAY BATTERY REMOVAL

CAUTION / NOTICE / HINT

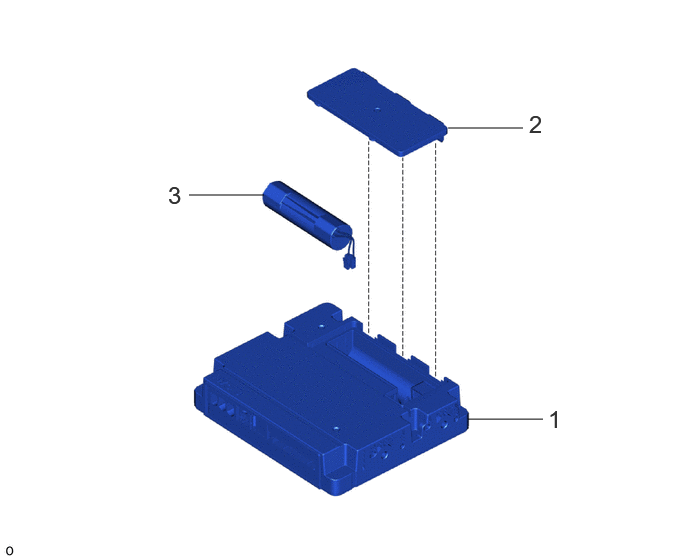

COMPONENTS (REMOVAL)

4.875,4.365 5.656,4.365 false 1.969,2.031 2.75,2.031 false 4.667,1.333 5.448,1.333 false 5.708,4.219 6,4.573 0.292,0.354 18 false 1 1.75,1.885 1.979,2.188 0.229,0.302 18 false 3 5.51,1.146 5.854,1.521 0.344,0.375 18 false 2

Procedure		Part Name Code
1	TELEMATICS TRANSCEIVER	86741A	-	-	-
2	TRANSCEIVER COVER	-	-	-	-
3	MOBILEPHONE BATTERY	-	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during mobile phone battery removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Mobilephone battery	Reset mobilephone battery condition	Emergency call service	(202201,999999,_56,_115231,_0512170,RM10000000215AF,)

PROCEDURE

Hide Display 86741A 1.REMOVE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL202201,999999,_56,_115231,_0510825,RM1000000020B6F,

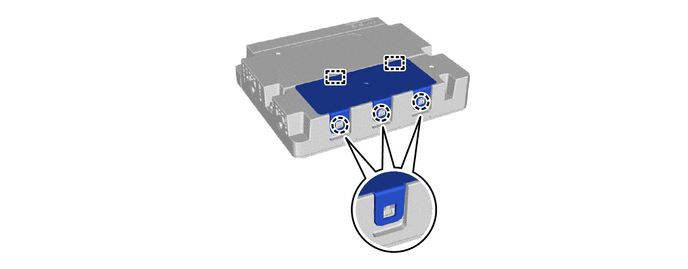

Hide Display 2.REMOVE TRANSCEIVER COVER

Hide Display 3.REMOVE MOBILEPHONE BATTERY

NOTICE:: Do not reuse dropped or damaged parts.

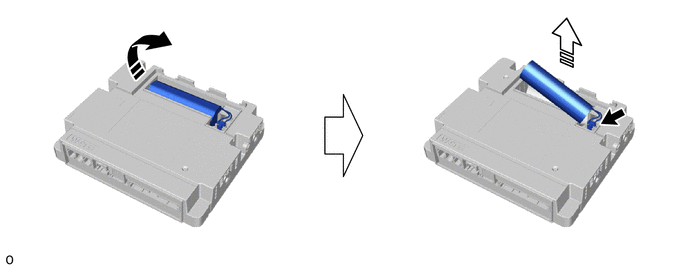

Remove the mobilephone battery as shown in the illustration.

0,0 0,0 false

Remove in this Direction (1)

Remove in this Direction (2)

Disconnect the connector.
