RM38T0EC _54 Brake _112607 PARKING BRAKE _0510713 FORCED RELEASE A

PARKING BRAKE FORCED RELEASE OPERATION METHOD

CAUTION / NOTICE / HINT

CAUTION:: If work is performed without first securing the vehicle, the vehicle may start moving and cause a serious accident or other disaster. Therefore, be sure to use wheel chocks to secure the vehicle before performing work.

PROCEDURE

Hide Display 1. PRECAUTION

Click hereBrake>PARKING BRAKE>PARKING BRAKE SYSTEM>PRECAUTION202307,999999,_54,_112607,_0510712,RM100000002BZ04,

Hide Display 2.REMOVE REAR SEAT CUSHION ASSEMBLY (for HEV Model)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0032,

Hide Display 3.REMOVE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0022,

Hide Display 72693 4.REMOVE REAR SEAT CUSHION LOCK HOOK

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0001,

Hide Display 67918A 5.REMOVE REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0002,

Hide Display 67917A 6.REMOVE REAR DOOR SCUFF PLATE RH

Use the same procedure as for the LH side.

Hide Display 62332A 7.SEPARATE REAR DOOR OPENING TRIM WEATHERSTRIP LH

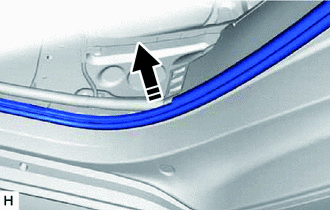

Separate the rear door opening trim weatherstrip LH.

NOTICE:: Be careful not to damage the rear door opening trim weatherstrip LH.

Hide Display 62331A 8.SEPARATE REAR DOOR OPENING TRIM WEATHERSTRIP RH

Use the same procedure as for the LH side.

Hide Display 62552F 9.SEPARATE REAR SEAT SIDE GARNISH LH

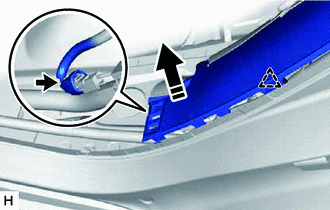

Disengage the clip and separate the rear seat side garnish LH until the No. 2 parking brake wire assembly connectors can be seen.

NOTICE:: Be careful not to damage the rear seat side garnish LH.

Hide Display 62551F 10.SEPARATE REAR SEAT SIDE GARNISH RH

Use the same procedure as for the LH side.

Hide Display 11. PARKING BRAKE FORCED RELEASE

CAUTION:: Work on a level surface to ensure safety.

NOTICE:: ·

To release the parking brake, follow the procedure for when using SST.

·

If the parking brake cannot be released, follow the procedure for when not using SST.

·

When moving the vehicle after releasing the parking brake, install all parts and do not connect the 2 connectors shown in the illustration.

·

If the ignition switch is ON or the hybrid system or engine is started with the 2 connectors disconnected, a DTC may be stored. Clear any DTCs after performing work.

When using SST:

Park the vehicle on a level surface and move the shift lever to P.

ii.

Turn the ignition switch off and use wheel chocks to secure the vehicle.

iii.

Disconnect the 2 connectors shown in the illustration.

iv.

Connect SST (09756-48020) to SST (09756-48060).

SST: 09756-48020
09756-48060

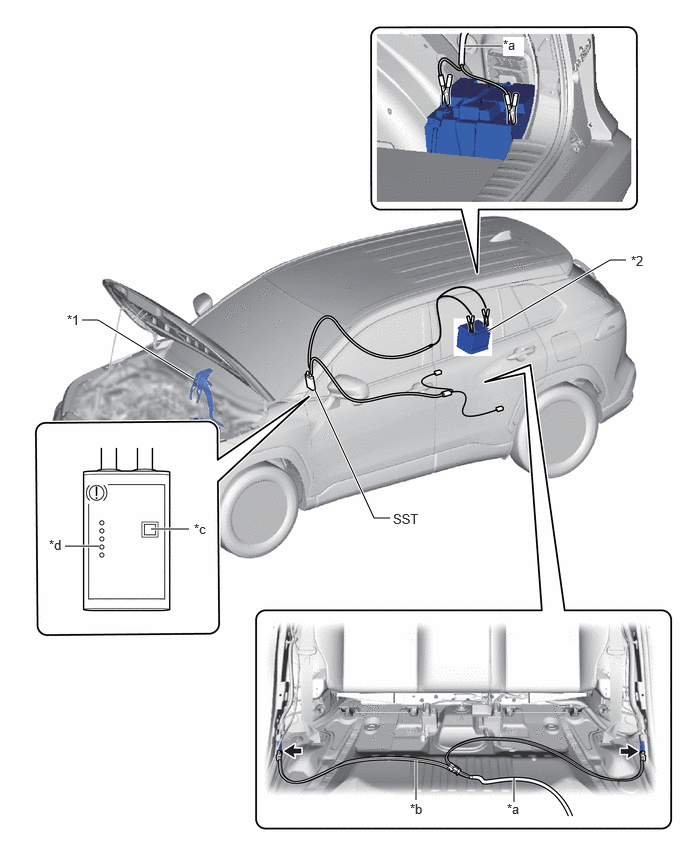

for HEV Model:

5.354,8.354 5.354,8.104 true 4.063,5.396 3.896,5.396 3.896,5.396 3.281,4.063 true 0.677,5.688 1.031,5.688 true 1.573,5.51 1.969,5.51 true 2.021,3.948 1.021,3.333 1.021,3.333 0.854,3.333 true 6.521,2.708 6.354,2.708 6.354,2.708 5.083,3.448 true 4.333,8.333 4.333,7.917 true 4.833,0.479 5.229,0.479 true 5.281,8.344 5.594,8.542 0.313,0.198 10 false *a 4.271,8.344 4.583,8.542 0.313,0.198 10 false *b 6.573,2.635 6.813,2.844 0.24,0.208 10 false *2 4.094,5.323 4.552,5.521 0.458,0.198 10 false SST 0.51,5.594 0.823,5.792 0.313,0.198 10 false *d 2.021,5.427 2.333,5.625 0.313,0.198 10 false *c 0.698,3.25 1.01,3.448 0.313,0.198 10 false *1 5.24,0.385 5.458,0.583 0.219,0.198 10 true *a

*1	Brake Pedal	*2	Auxiliary Battery
*a	SST (09756-48020)	*b	SST (09756-48060)
*c	Release Button	*d	Finished Light
	Connector	-	-

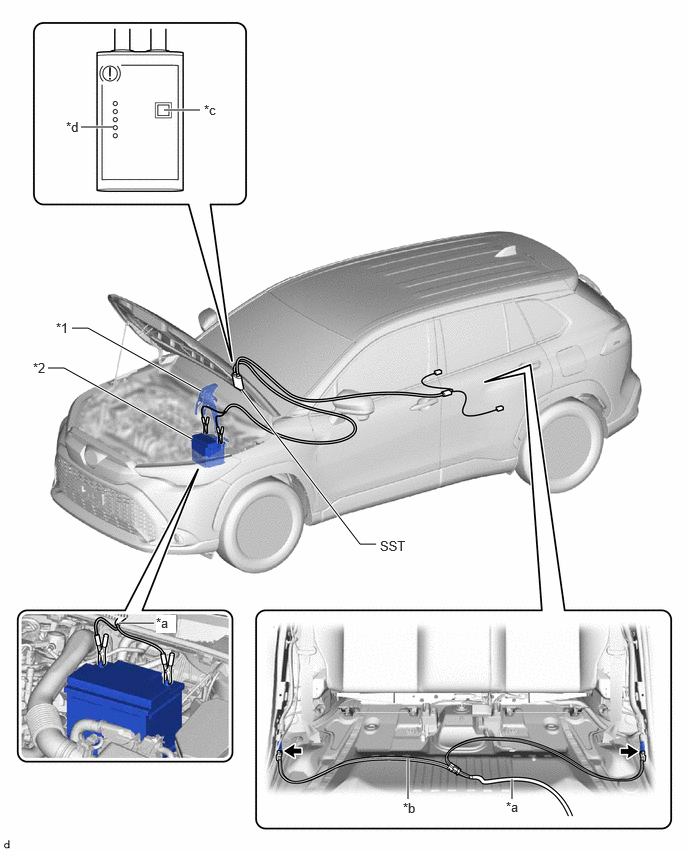

for Gasoline Model:

0.75,3.417 0.917,3.417 0.917,3.417 2.094,4.073 true 1.708,1.146 2.083,1.146 true 0.844,1.323 1.177,1.323 true 0.5,3.833 0.667,3.833 0.667,3.833 2,4.573 true 3.917,5.667 3.75,5.667 3.75,5.667 2.521,4.063 true 5.333,8.323 5.333,8.115 true 4.25,8.323 4.25,7.906 true 1.24,6.49 1.604,6.49 true 0.583,3.333 0.896,3.49 0.313,0.156 10 false *1 0.344,3.75 0.656,3.906 0.313,0.156 10 false *2 5.271,8.323 5.583,8.479 0.313,0.156 10 false *a 4.198,8.333 4.521,8.521 0.323,0.188 10 false *b 2.125,1.063 2.438,1.219 0.313,0.156 10 false *c 0.688,1.24 1,1.396 0.313,0.156 10 false *d 3.958,5.604 4.333,5.792 0.375,0.188 10 false SST 1.625,6.406 1.833,6.594 0.208,0.188 10 true *a

*1	Brake Pedal	*2	Auxiliary Battery
*a	SST (09756-48020)	*b	SST (09756-48060)
*c	Release Button	*d	Finished Light
	Connector	-	-

Connect SST (09756-48060) to the 2 connectors.

vi.

Connect SST (09756-48020) to the auxiliary battery.

vii.

Push the release button on SST (09756-48020) with the brake pedal depressed.

CAUTION:: The vehicle may suddenly move when the parking brake is released. Make sure to perform the release operation with the brake pedal depressed.

HINT:: ·

Confirm that the parking brake is operating by listening for operation sounds.

·

If no operation sounds are heard, push the release button on SST (09756-48020) with the brake pedal depressed.

·

The parking brake may not release if the auxiliary battery voltage is too low. In this case, perform the release operation again using a fully charged or new auxiliary battery.

viii.

When the finished light of SST (09756-48020) illuminates, release the brake pedal.

ix.

Move the vehicle forward and rearward to check that the parking brake is released.

CAUTION:: Be careful when performing this operation. The vehicle may suddenly move.

NOTICE:: When moving the vehicle after releasing the parking brake, check that the 2 connectors are disconnected.

When not using SST:

NOTICE:: Perform the following procedure only when the parking brake cannot be released using SST.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Park the vehicle on a level surface and check that the shift lever is in P.

ii.

Turn the ignition switch off and use wheel chocks to secure the vehicle.

iii.

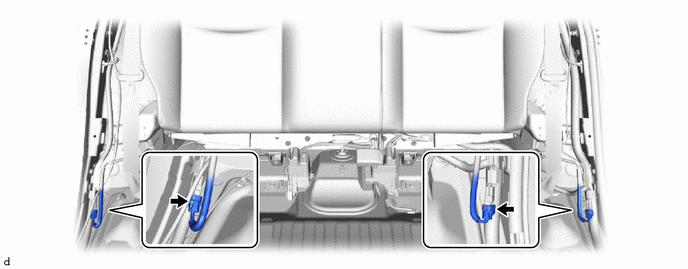

Check that the 2 connectors shown in the illustration have been disconnected.

iv.

Remove the rear wheel.

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202201,999999,_V1,_104397,_0503374,RM100000001ZE9H,

CAUTION:: When using a jack to lift the vehicle, make sure to support the vehicle using safety stands. Do not work on the vehicle with it supported only by a jack.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>VEHICLE LIFT AND SUPPORT LOCATIONS202201,999999,_V1,_107171,_0486700,RM100000001XIMV,

Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE ACTUATOR>REMOVAL202201,999999,_54,_112607,_0510714,RM1000000020AHV_04_0007,

vi.

Remove the parking brake actuator assembly from the rear disc brake cylinder assembly.

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE ACTUATOR>REMOVAL202201,999999,_54,_112607,_0510714,RM1000000020AHV_04_0006,

vii.

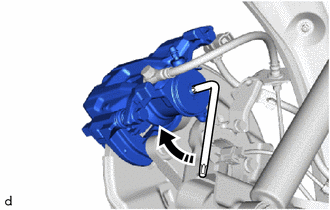

Insert an L-shaped T45 "TORX" wrench into the rear disc brake cylinder assembly.

viii.

Turn the L-shaped T45 "TORX" wrench 2 full rotations clockwise to release the parking brake lock.

NOTICE:: When moving the vehicle after releasing the parking brake, install all parts and do not connect the 2 connectors shown in the illustration.
