RM38T0EC _59 Vehicle Exterior _115107 WINDOW / GLASS _0510344 QUARTER WINDOW GLASS A

WINDOW / GLASS QUARTER WINDOW GLASS REMOVAL

CAUTION / NOTICE / HINT

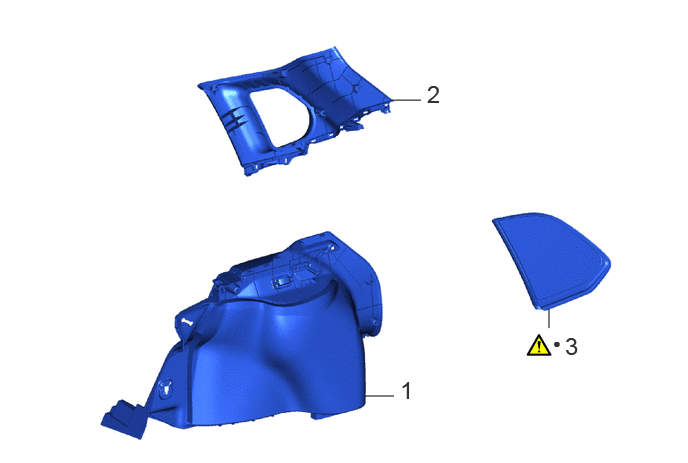

COMPONENTS (REMOVAL)

3.802,4.125 4.104,4.125 false 4.083,1.042 4.385,1.042 false 5.719,3.219 5.719,3.417 false 4.448,0.833 4.729,1.188 0.281,0.354 18 false 2 4.167,3.917 4.448,4.271 0.281,0.354 18 false 1 5.885,3.458 6.167,3.813 0.281,0.354 18 false 3 5.76,3.49 5.917,3.688 0.156,0.198 10 false ●

Procedure		Part Name Code
1	DECK TRIM SIDE PANEL ASSEMBLY	64740C	-	-	-
2	ROOF SIDE INNER GARNISH ASSEMBLY LH	62480A	-	-	-
3	QUARTER WINDOW ASSEMBLY	62720A	(202201,999999,_59,_115107,_0510344,RM1000000020929_01_0337,)	-	-

●

Non-reusable part

CAUTION / NOTICE / HINT

NOTICE:: Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 64740C 1.REMOVE DECK TRIM SIDE PANEL ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202201,202307,_58,_114202,_0509303,RM10000000204JB,202307,999999,_58,_114202,_0509303,RM100000002BZYK,

Hide Display 62480A 2.REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202201,202307,_58,_112291,_0501087,RM100000001Z4VN_02_0039,202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0039,

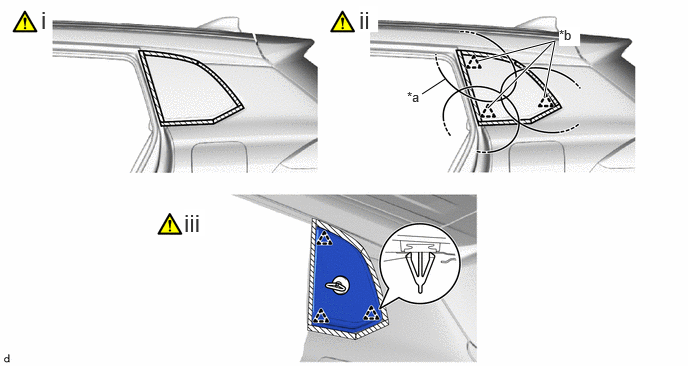

Hide Display 62720A 3.REMOVE QUARTER WINDOW ASSEMBLY

4.396,0.979 4.635,0.823 false 5.083,1.125 5.771,0.427 true 4.979,0.635 5.781,0.427 5.781,0.427 5.667,1.01 true 0.427,0.063 0.74,0.406 0.313,0.344 18 false i 3.74,0.063 3.938,0.333 0.198,0.271 18 true ii 1.917,2.177 2.135,2.458 0.219,0.281 18 true iii 4.24,0.927 4.552,1.125 0.313,0.198 10 false *a 5.823,0.281 6.042,0.479 0.219,0.198 10 true *b

Piano Wire

Clip

Apply protective tape to the area around the installation position of the quarter window assembly on the vehicle body to prevent it from being scratched as shown in the illustration.

ii.

Using piano wire, cut the adhesive by the below procedure.

1. Pass a piano wire between the vehicle body and quarter window assembly from the interior.

2. Tie both wire ends to wooden blocks or similar objects that can serve as handles.

3. Cut the adhesive by pulling the piano wire around the quarter window assembly.

NOTICE:: When separating the quarter window assembly, be careful not to damage the paint or interior and exterior ornaments.

iii.

Using suction cup, disengage the clips to remove the quarter window assembly.

NOTICE:: Be careful not to drop the quarter window assembly.
