RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509298 OCCUPANT DETECTION SENSOR A

SEAT BELT  OCCUPANT DETECTION SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

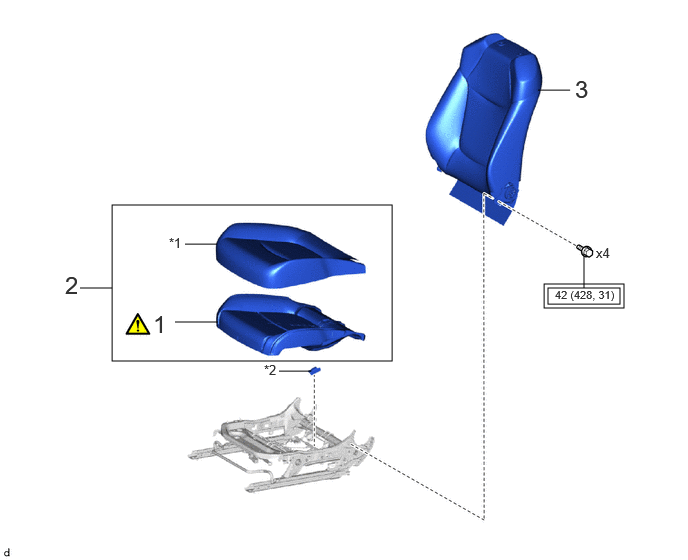

B631828N01
5.708,3 6.458,3.167 0.75,0.167 1.167,2.135 4.083,3.76 2.917,1.625 5.667,2.958 6.5,3.208 0.833,0.25 5.604,0.938 5.938,0.938 false 1.927,2.542 2.26,2.542 false 1.823,3.354 2.271,3.354 false 6.083,3 6.083,2.667 false 2.906,3.865 3.24,3.865 false 0.833,3 1.167,3 false 5.99,0.781 6.542,1.135 0.552,0.354 18 false 3 6.208,2.552 6.521,2.75 0.313,0.198 10 false x4 0.677,2.823 1.229,3.177 0.552,0.354 18 false 2 1.594,3.229 2.146,3.583 0.552,0.354 18 false 1 1.76,2.448 2.073,2.646 0.313,0.198 10 false *1 2.75,3.771 3.063,3.969 0.313,0.198 10 false *2 5.781,3 6.594,3.167 0.813,0.167 8 false 42 (428, 31)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD) 71511S (Click here) - -
2 SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD - - - -
3 SEPARATE TYPE FRONT SEATBACK ASSEMBLY - - - -

*1 SEPARATE TYPE FRONT SEAT CUSHION COVER *2 CONNECTOR HOLDER
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

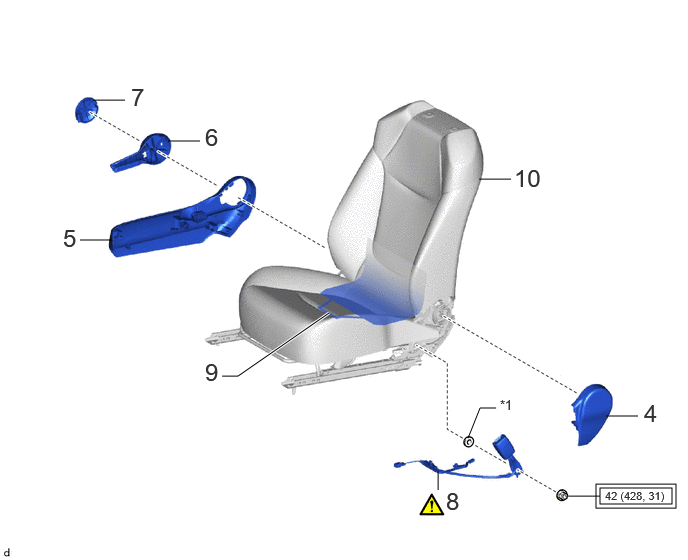

B631831N01
6.25,5.083 7,5.25 0.75,0.167 6.208,5.042 7.042,5.292 0.833,0.25 4.563,5.104 4.563,4.906 false 5.917,5.167 6.25,5.167 false 4.99,1.865 5.323,1.865 false 2.313,3.917 2.479,3.917 2.479,3.917 3.427,3.26 true 6.313,4.333 6.646,4.333 false 0.833,2.5 1.167,2.5 false 1.75,1.469 2.083,1.469 false 0.969,1.042 1.302,1.042 false 4.875,4.563 5,4.25 5,4.25 5.167,4.25 false 5.354,1.708 6.146,2.083 0.792,0.375 18 false 10 2.135,3.729 2.594,4.104 0.458,0.375 18 false 9 6.708,4.156 6.938,4.531 0.229,0.375 18 false 4 0.656,2.333 0.938,2.688 0.281,0.354 18 false 5 2.135,1.281 2.417,1.635 0.281,0.354 18 false 6 1.365,0.865 1.646,1.219 0.281,0.354 18 false 7 6.302,5.094 7.073,5.281 0.771,0.188 8 false 42 (428, 31) 4.646,5.073 4.927,5.427 0.281,0.354 18 false 8 5.208,4.135 5.521,4.333 0.313,0.198 10 false *1

Procedure Part Name Code
Z101186

Z101188

Z101187

4 FRONT SEAT INNER CUSHION SHIELD 71861 - - -
5 FRONT SEAT CUSHION SHIELD 71811D - - -
6 RECLINING ADJUSTER RELEASE HANDLE 72525A - - -
7 RECLINING HINGE COVER 72551B - - -
8 FRONT SEAT INNER BELT ASSEMBLY 73230 (Click here) - -
9 SEPARATE TYPE FRONT SEATBACK COVER 71073S - - -
10 FRONT SEAT ASSEMBLY - - - -

*1 Front Seat Belt Anchor Plate - -
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

CAUTION / NOTICE / HINT

CAUTION:
B394717

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 71501 1.INSTALL OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)

Z101186

NOTICE:
·

When installing a separate type front seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click here(Click here)

·

Be careful not to damage the separate type front seat cushion cover.




Hide 2.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

Hide 3.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

Hide 71861 4.INSTALL FRONT SEAT INNER CUSHION SHIELD

Hide 71811D 5.INSTALL FRONT SEAT CUSHION SHIELD

Hide 72525A 6.INSTALL RECLINING ADJUSTER RELEASE HANDLE

Hide 72552B 7.INSTALL RECLINING ADJUSTER RELEASE HANDLE

Hide 73240 8.INSTALL FRONT SEAT INNER BELT ASSEMBLY

Z101186

Click here(Click here)

Hide 71073S 9.CONNECT SEPARATE TYPE FRONT SEATBACK COVER
