POWER SEAT SWITCH
A
SEAT POWER SEAT SWITCH INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
3.99,1.042 4.323,1.042
false
1.344,3.542 1.677,3.542
false
3.854,3.281 4.188,3.281
false
4.49,3.625 4.823,3.625
false
5.99,3.708 6.323,3.708
false
5.688,4.448 6.021,4.448
false
5.083,4.583 5.25,4.583
5.25,4.583 5.438,4.5
false
4.375,0.844 4.656,1.198
0.281,0.354
18
false
7
1.719,3.375 2,3.729
0.281,0.354
18
false
6
6.052,4.271 6.333,4.625
0.281,0.354
18
false
3
4.906,4.396 5.188,4.75
0.281,0.354
18
false
4
4.25,3.104 4.531,3.458
0.281,0.354
18
false
2
4.885,3.458 5.167,3.813
0.281,0.354
18
false
1
6.375,3.531 6.656,3.885
0.281,0.354
18
false
5

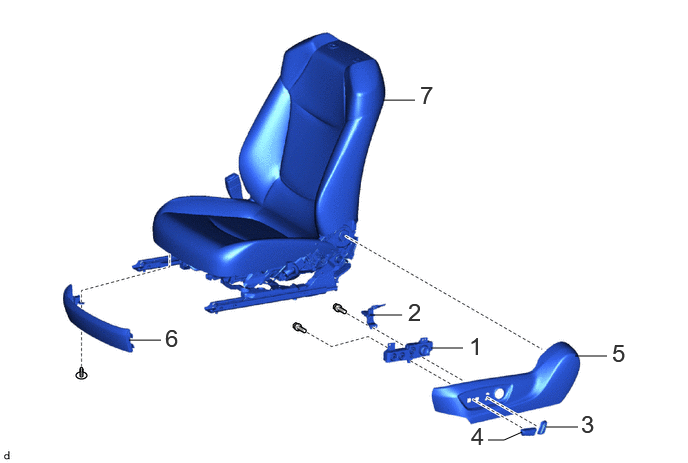

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FRONT POWER SEAT SWITCH | 84922C | - | - | - |
| 2 | SEAT ADJUSTER SHIELD CLAMP BRACKET | 72714 | - | - | - |
| 3 | RECLINING POWER SEAT SWITCH KNOB | 84921Q | - | - | - |
| 4 | SLIDE AND VERTICAL POWER SEAT SWITCH KNOB | 84921R | - | - | - |
| 5 | FRONT SEAT CUSHION SHIELD | 71812D | - | - | - |
| 6 | FRONT SEAT FRONT CUSHION SHIELD | 71868N | - | - | - |
| 7 | FRONT SEAT ASSEMBLY | - | - | - | - |
CAUTION / NOTICE / HINT
- CAUTION:
-
-
Wear protective gloves. Sharp areas on the parts may injure your hands.
- HINT:
-
Power seat is available only on the driver side.
PROCEDURE
84922C
1.INSTALL FRONT POWER SEAT SWITCH
72714
2.INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET
84921Q
3.INSTALL RECLINING POWER SEAT SWITCH KNOB
84921R
4.INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
71812D
5.INSTALL FRONT SEAT CUSHION SHIELD
71868N
6.INSTALL FRONT SEAT FRONT CUSHION SHIELD
