RM38T0EC _59 Vehicle Exterior _114146 WIPER / WASHER _0505961 REAR WIPER MOTOR A

WIPER / WASHER  REAR WIPER MOTOR  INSTALLATION


CAUTION / NOTICE / HINT

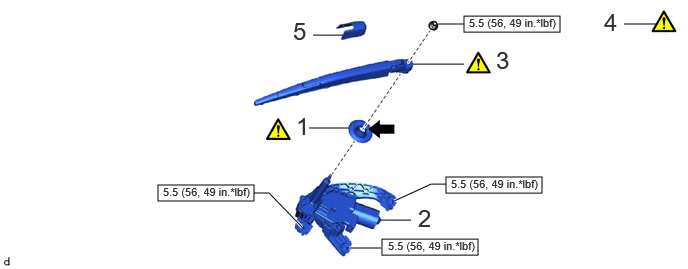

COMPONENTS (INSTALLATION)
B625903N01
4.646,1.844 5.646,2.01 1,0.167 3.979,2.49 4.979,2.656 1,0.167 4.833,0.167 5.833,0.333 1,0.167 1.646,1.927 2.646,2.094 1,0.167 3.26,0.365 3.573,0.365 false 4.302,0.667 4.833,0.667 false 3.958,2.292 4.281,2.292 false 4.563,0.25 4.833,0.25 false 3.635,2.583 3.969,2.583 true 2.646,2.01 2.802,2.01 2.802,2.01 3.146,2.365 true 4.104,2.094 4.49,1.917 4.49,1.917 4.646,1.917 true 3.219,1.333 3.635,1.333 false 6.5,0.25 6.833,0.25 false 6.292,0.083 6.573,0.438 0.281,0.354 18 false 4 4.885,0.167 5.896,0.344 1.01,0.177 8 false 5.5 (56, 49 in.*lbf) 5.167,0.479 5.448,0.833 0.281,0.354 18 false 3 3.052,0.177 3.333,0.531 0.281,0.354 18 false 5 3.083,1.167 3.385,1.458 0.302,0.292 18 false 1 4.698,1.844 5.708,2.021 1.01,0.177 8 false 5.5 (56, 49 in.*lbf) 4.354,2.125 4.656,2.417 0.302,0.292 18 false 2 4.042,2.49 5.052,2.667 1.01,0.177 8 false 5.5 (56, 49 in.*lbf) 1.698,1.927 2.708,2.104 1.01,0.177 8 false 5.5 (56, 49 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR WIPER MOTOR GROMMET 85143R (Click here) - -
2 REAR WIPER MOTOR ASSEMBLY 85110R - - -
3 INSTALL REAR WIPER ARM AND BLADE ASSEMBLY - (Click here) - -
4 INSPECT REAR WIPER ARM AND BLADE ASSEMBLY - (Click here) - -
5 REAR WIPER ARM HEAD CAP 85292A - - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque
V100135

MP grease

B582075N01
5.99,1.031 6.302,1.031 false 5.469,2.26 5.781,2.26 false 1.24,2.135 1.552,2.135 false 3.625,0.885 3.625,1.146 false 3.563,1.146 3.844,1.5 0.281,0.354 18 false 9 6.385,0.854 6.667,1.208 0.281,0.354 18 false 8 5.833,2.073 6.115,2.427 0.281,0.354 18 false 6 1.042,1.979 1.323,2.333 0.281,0.354 18 false 7

Procedure Part Name Code
Z101186

Z101188

Z101187

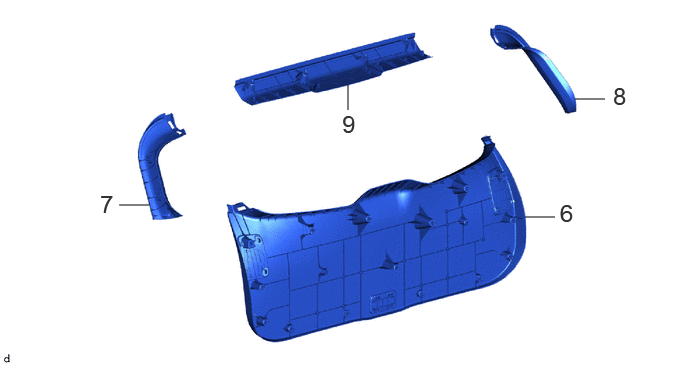

6 BACK DOOR TRIM PANEL ASSEMBLY 64780A - - -
7 BACK DOOR SIDE GARNISH LH 67938A - - -
8 BACK DOOR SIDE GARNISH RH 67937B - - -
9 BACK DOOR TRIM UPPER PANEL ASSEMBLY 64790B - - -

PROCEDURE

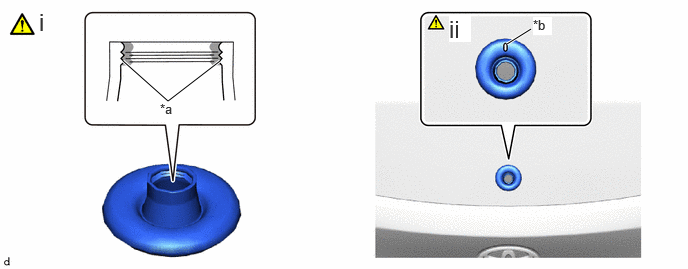

Hide 85143R 1.INSTALL REAR WIPER MOTOR GROMMET

a.
B636744C01
1.281,0.635 1.75,1.052 1.75,1.052 2.292,0.635 true 5.281,0.458 5.531,0.302 true 0.406,0.083 0.688,0.438 0.281,0.354 18 false i 4.677,0.156 4.906,0.438 0.229,0.281 18 true ii 1.667,1.052 1.979,1.25 0.313,0.198 10 false *a 5.552,0.177 5.75,0.365 0.198,0.188 10 true *b
*a Rear Wiper Motor Grommet Lip *b Alignment Mark
V100145

MP grease - -


i.

Apply MP grease to the entire surface of the rear wiper motor grommet lip.

HINT:

Make sure that the hole does not get clogged with grease and the grooves on the lip are filled with grease.



ii.

Install the rear wiper motor grommet.

HINT:

Install the rear wiper motor grommet with its alignment mark facing up.




Hide 85110R 2.INSTALL REAR WIPER MOTOR ASSEMBLY

Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)

Hide 3.INSTALL REAR WIPER ARM AND BLADE ASSEMBLY

a.
B625913C01
2.135,1.063 2.677,0.792 true 1.74,2.156 2.427,2.302 true 5.375,0.74 5.604,0.5 true 5.5,1 5.167,1.083 true 2.281,0.146 2.563,0.5 0.281,0.354 18 false i 0.781,1.438 1.333,1.792 0.552,0.354 18 false ii 3.99,0.042 4.656,0.375 0.667,0.333 18 false iii, iv 2.729,0.677 3.042,0.875 0.313,0.198 10 false *a 2.479,2.208 2.844,2.417 0.365,0.208 10 false *a 5.073,0.76 5.219,0.927 0.146,0.167 10 true A 5.615,0.385 5.802,0.563 0.188,0.177 10 true *b 4.979,0.979 5.292,1.177 0.313,0.198 10 false *c
*a Serration *b Wiper Set Mark
*c Back Door Glass Edge Side - -


i.

When reusing the rear wiper arm and blade assembly.

1. Clean the rear wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.



ii.

When reusing the rear wiper motor assembly.

1. Clean the wiper pivot serrations with a wire brush.


iii.

Set the automatic stop position by the below procedure.

1. Turn the ignition switch ON.

2. Operate the rear wiper motor assembly and stop it at the automatic stop position.

3. Turn the ignition switch off.


iv.

Install the rear wiper arm and blade assembly with the nut to the position shown in the illustration.

HINT:

Hold the wiper arm by hand while tightening the nut.


Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)

Reference Measurement:
Area Measurement Area Measurement
A 23.7 to 43.7 mm (0.933 to 1.72 in.) - -




Hide 85292A 5.INSTALL REAR WIPER ARM HEAD CAP

Hide 64780A 6.INSTALL BACK DOOR TRIM PANEL ASSEMBLY

Hide 67938A 7.INSTALL BACK DOOR SIDE GARNISH LH

Hide 67937B 8.INSTALL BACK DOOR SIDE GARNISH RH

Hide 64790B 9.INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
