WIPER / WASHER  REAR WIPER MOTOR  ON-VEHICLE INSPECTION

1.115,0.938 1.302,0.771 true 0.844,1.354 1.219,1.271 false 1.323,0.635 1.552,0.813 0.229,0.177 10 true *a 0.771,0.99 0.927,1.167 0.156,0.177 10 true A 0.656,1.271 0.969,1.469 0.313,0.198 10 false *b

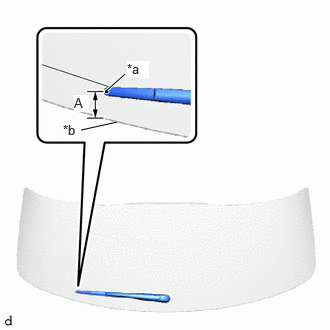

*a	Wiper Set Mark
*b	Back Door Glass Edge Side

Check the automatic stop position.

HINT:

After the rear wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.

Standard Clearance:

Area	Measurement
A	23.7 to 43.7 mm (0.933 to 1.72 in.)

OK:

The wiper blade stops at the position shown in the illustration.
