RM38T0EC
_59
Vehicle Exterior
_114146
WIPER / WASHER
_0505960
FRONT WIPER MOTOR
G
WIPER / WASHER FRONT WIPER MOTOR ON-VEHICLE INSPECTION
PROCEDURE
85110
1.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY
a.

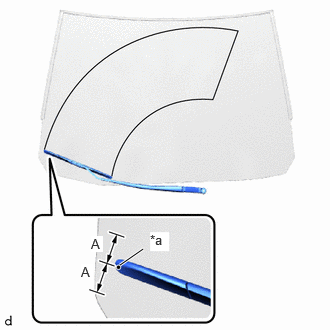

for LH Side:
i.
Operate the windshield wiper motor assembly.
ii.
Stop the windshield wiper motor assembly operation.
iii.
1.698,2.729 1.948,2.51
true
1.313,2.531 1.438,2.698
0.125,0.167
10
true
A
1.302,2.854 1.427,3.021
0.125,0.167
10
true
A
1.99,2.396 2.188,2.573
0.198,0.177
10
true
*a
| *a | Alignment Mark |
Check the automatic stop (park) position.
- HINT:
-
After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.
- Standard Clearance:
Area Measurement A 10 mm (0.394 in.)
- OK:
The wiper blade stops at the position shown in the illustration.
b.

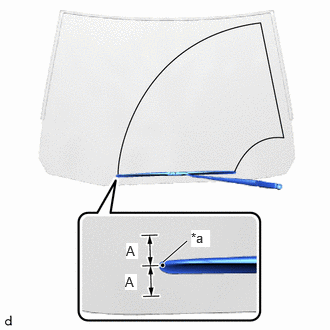

for RH Side:
i.
Operate the windshield wiper motor assembly.
ii.
Stop the windshield wiper motor assembly operation.
iii.
1.25,2.76 1.49,2.594
true
0.948,2.458 1.073,2.625
0.125,0.167
10
true
A
0.844,2.75 0.969,2.917
0.125,0.167
10
true
A
1.563,2.417 1.76,2.615
0.198,0.198
10
true
*a
| *a | Alignment Mark |
Check the automatic stop (park) position.
- HINT:
-
After the windshield wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.
- Standard Clearance:
Area Measurement A 10 mm (0.394 in.)
- OK:
The wiper blade stops at the position shown in the illustration.
