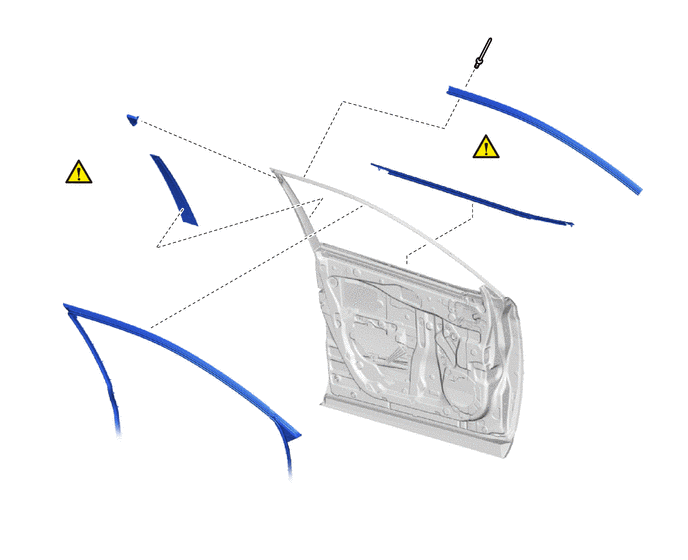

EXTERIOR PANELS / TRIM  FRONT DOOR WINDOW FRAME MOULDING  INSTALLATION

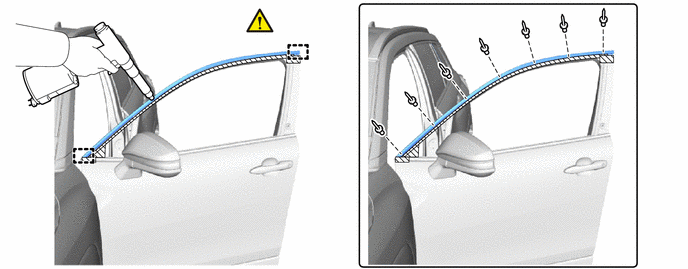

Engage the guides to temporarily install the front door upper window frame moulding to the front door frame.

Using an air riveter or hand riveter with a nose piece, install the front door upper window frame moulding with 7 new rivets.

NOTICE:

·

1.229,1.104 1.083,1.635 1.083,1.635 1.24,2.198 false 1.083,1.635 0.813,1.635 false 1.792,0.896 2.031,1.635 2.031,1.635 1.771,2.531 true 2.031,1.635 2.313,1.635 false 2.26,0.604 2.521,0.802 0.26,0.198 10 false *a 2.26,2.448 2.563,2.677 0.302,0.229 10 false *b 2.344,1.563 2.594,1.781 0.25,0.219 10 false *c 0.563,1.552 0.813,1.729 0.25,0.177 10 false *d

*a	Incorrect
*b	Correct
*c	Mandrel
*d	Riveter

Do not pry the rivet with the riveter as this will cause damage to the riveter and mandrel.

·

0.719,0.104 1.021,0.104 false 0.813,1.146 1.01,1.146 false 0.813,2.438 1.01,2.438 false 2.313,0.563 2.646,0.875 0.333,0.313 10 false *a 2.313,2.76 2.573,3.01 0.26,0.25 10 false *b 1.052,2.365 1.323,2.573 0.271,0.208 10 false *c 2.313,1.573 2.698,1.917 0.385,0.344 10 false *a 1.052,1.073 1.302,1.344 0.25,0.271 10 false *c 1.052,0.021 1.313,0.25 0.26,0.229 10 false *c

*a	Incorrect
*b	Correct
*c	Riveter

Confirm that the rivets are seated properly against the front door upper window frame moulding.

·

Do not tilt the riveter when installing the rivet to the front door upper window frame moulding.

·

Do not leave any space between the rivet head and front door upper window frame moulding.

·

0.74,0.646 0.938,0.646 false 0.729,2.156 0.938,2.156 false 2.292,1.042 2.615,1.323 0.323,0.281 10 false *a 2.292,2.479 2.531,2.677 0.24,0.198 10 false *b 0.979,0.573 1.25,0.781 0.271,0.208 10 false *c 0.969,2.083 1.26,2.281 0.292,0.198 10 false *c

*a	Incorrect
*b	Correct
*c	Riveter

Do not leave any space between the front door upper window frame moulding and front door panel. Firmly hold together the 2 items while installing the rivet.

HINT:

If the mandrel of the rivet does not come off on the first operation of the rivet gun, slide the rivet gun forward on the mandrel and operate it again.

Remove the protective tape.

Clean the front door panel surface.

1. Using a heat light, heat the front door panel surface.

Standard:

Item	Temperature	Item	Temperature
Front Door Panel	40 to 60°C (104 to 140°F)	Front Door Window Frame Moulding (Center Pillar Side)	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the front door panel and front door window frame moulding (center pillar side) excessively.

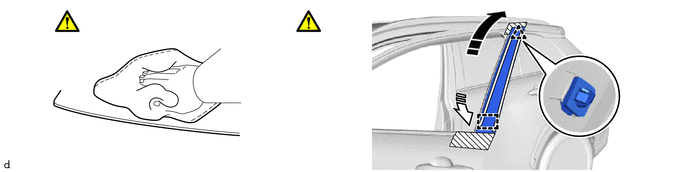

2. Remove any double-sided tape from the front door panel.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:

·

Installing the front door window frame moulding (center pillar side) with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

Install a new front door window frame moulding (center pillar side).

1. Using a heat light, heat the front door panel and front door window frame moulding (center pillar side).

Standard:

Item	Temperature	Item	Temperature
Front Door Panel	40 to 60°C (104 to 140°F)	Front Door Window Frame Moulding (Center Pillar Side)	20 to 30°C (68 to 86°F)

CAUTION:

·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the front door panel and front door window frame moulding (center pillar side) excessively.

2. Remove the release paper from the front door window frame moulding (center pillar side).

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.

3. Engage the guide and clip to install the front door window frame moulding (center pillar side).

HINT:

Press the front door window frame moulding (center pillar side) firmly to install it.

Remove the protective tape.
