RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505930 FRONT DOOR BELT MOULDING A

EXTERIOR PANELS / TRIM  FRONT DOOR BELT MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

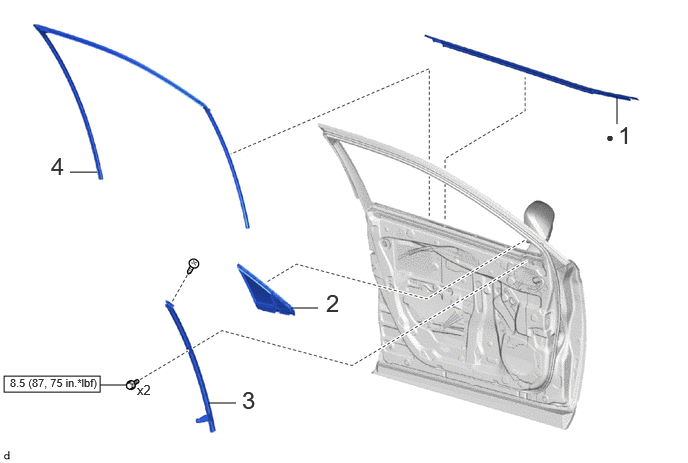

B591511N01
0.042,3.917 1.042,4.083 1,0.167 0.729,1.792 1.01,1.792 false 3.031,3.208 3.313,3.208 false 2.177,4.198 2.458,4.198 false 6.427,1.01 6.427,1.292 false 1.042,4.01 1.323,4.01 false 1.427,3.979 1.615,4.156 0.188,0.177 10 false x2 6.313,1.344 6.438,1.542 0.125,0.198 10 false ● 0.531,1.583 0.729,1.844 0.198,0.26 18 false 4 2.521,4.021 2.719,4.281 0.198,0.26 18 false 3 3.396,3.01 3.594,3.271 0.198,0.26 18 false 2 6.438,1.26 6.635,1.521 0.198,0.26 18 false 1 0.104,3.917 1.104,4.094 1,0.177 8 false 8.5 (87, 75 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT DOOR BELT MOULDING ASSEMBLY 75720 - - -
2 FRONT DOOR FIX WINDOW GLASS 68126 - - -
3 FRONT LOWER FRONT DOOR FRAME SUB-ASSEMBLY 67402F - - -
4 FRONT DOOR GLASS RUN 68151D - - -

V100146

N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

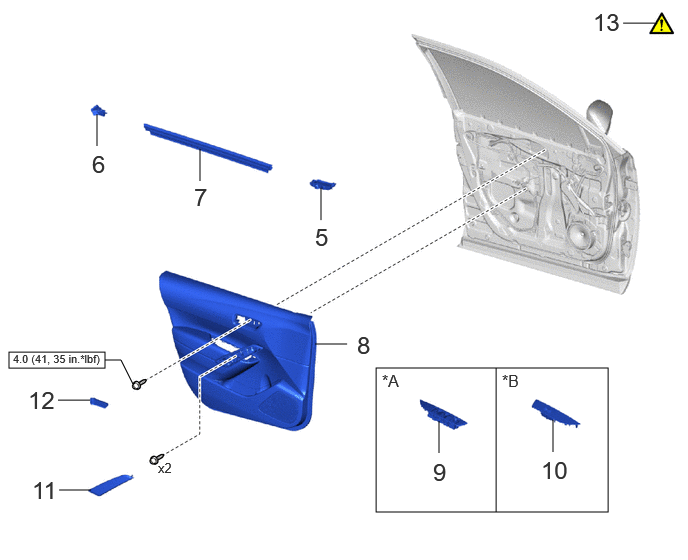

B625560N04
3.917,3.833 6.333,5.333 2.417,1.5 0.094,3.667 1.094,3.833 1,0.167 5.167,5.333 5.167,3.833 false 3.281,3.583 3.615,3.583 false 2.083,1.885 2.083,1.552 false 1.01,1.521 1.01,1.188 false 3.344,2.292 3.344,1.958 false 4.573,4.719 4.573,4.385 false 5.76,4.708 5.76,4.375 false 6.49,0.24 6.823,0.24 false 0.615,5.104 0.948,5.104 false 0.604,4.167 0.938,4.167 false 1.094,3.75 1.26,3.75 1.26,3.75 1.385,4 false 1.646,4.792 1.958,4.99 0.313,0.198 10 false x2 3.979,3.865 4.354,4.104 0.375,0.24 12 false *A 5.229,3.865 5.604,4.104 0.375,0.24 12 false *B 2.021,1.906 2.302,2.26 0.281,0.354 18 false 7 0.292,4.021 0.656,4.375 0.365,0.354 18 false 12 0.333,4.958 0.688,5.281 0.354,0.323 18 false 11 4.51,4.771 4.792,5.125 0.281,0.354 18 false 9 5.635,4.75 5.979,5.104 0.344,0.354 18 false 10 3.719,3.448 4,3.802 0.281,0.354 18 false 8 3.281,2.323 3.563,2.677 0.281,0.354 18 false 5 0.958,1.563 1.24,1.917 0.281,0.354 18 false 6 6.177,0.083 6.542,0.438 0.365,0.354 18 false 13 0.135,3.667 2.583,3.823 2.448,0.156 8 false 4.0 (41, 35 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

5 FRONT DOOR FRONT BELT SEAL 68193C - - -
6 FRONT DOOR REAR BELT SEAL 68195B - - -
7 FRONT DOOR GLASS INNER WEATHERSTRIP 68172A - - -
8 FRONT DOOR TRIM BOARD SUB-ASSEMBLY 67602 - - -
9 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL - - - -
10 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL - - - -
11 DOOR ASSIST GRIP COVER 74646 - - -
12 FRONT DOOR INSIDE HANDLE BEZEL PLUG 69284F - - -
13 INITIALIZE POWER WINDOW CONTROL SYSTEM - (Click here) - -

*A for Driver Side *B for Front Passenger Side
V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75720 1.INSTALL FRONT DOOR BELT MOULDING ASSEMBLY

Hide 68126 2.INSTALL FRONT DOOR FIX WINDOW GLASS

Hide 67402F 3.INSTALL FRONT LOWER FRONT DOOR FRAME SUB-ASSEMBLY

Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)

Hide 68151D 4.INSTALL FRONT DOOR GLASS RUN

Hide 68193C 5.INSTALL FRONT DOOR FRONT BELT SEAL

Hide 68195B 6.INSTALL FRONT DOOR REAR BELT SEAL

Hide 68172A 7.INSTALL FRONT DOOR GLASS INNER WEATHERSTRIP

Hide 67602 8.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Hide 9.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Hide 10.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Hide 74646 11.INSTALL DOOR ASSIST GRIP COVER

Hide 69284F 12.INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
