RM38T0EC _53 Suspension _113127 TIRE PRESSURE MONITORING _0503377 TIRE PRESSURE WARNING RECEIVER A

TIRE PRESSURE MONITORING TIRE PRESSURE WARNING RECEIVER INSTALLATION

CAUTION / NOTICE / HINT

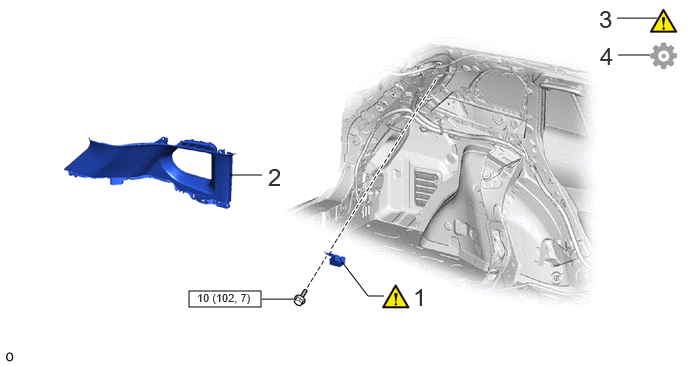

COMPONENTS (INSTALLATION)

1.969,3.031 2.719,3.198 0.75,0.167 6.427,0.188 6.844,0.188 false 6.438,0.573 6.771,0.573 false 3.563,2.729 3.833,3.083 3.833,3.083 4,3.083 false 2.396,1.823 2.729,1.823 false 2.729,3.115 3.063,3.115 false 6.24,0.052 6.51,0.396 0.271,0.344 18 false 3 6.25,0.438 6.531,0.792 0.281,0.354 18 false 4 4.302,2.948 4.583,3.302 0.281,0.354 18 false 1 2.792,1.698 3.073,2.052 0.281,0.354 18 false 2 2.052,3.031 4.5,3.188 2.448,0.156 8 false 10 (102, 7)

Procedure		Part Name Code
1	TIRE PRESSURE WARNING ECU AND RECEIVER	897B0A	(202201,999999,_53,_113127,_0503377,RM100000001ZE9O_01_0238,)	-	-
2	ROOF SIDE INNER GARNISH ASSEMBLY LH	62480A	-	-	-
3	REGISTER TRANSMITTER ID	-	(202201,999999,_53,_113127,_0503377,RM100000001ZE9O_01_0239,)	-	-
4	PERFORM INITIALIZATION	-	-	-	(202201,999999,_53,_113127,_0503377,RM100000001ZE9O_01_0241,)

PROCEDURE

Hide Display 897B0A 1.INSTALL TIRE PRESSURE WARNING ECU AND RECEIVER

NOTICE:: ·

Do not drop the tire pressure warning ECU and receiver, strike it with tools or subject it to impact.

·

If the tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Hide Display 62480A 2.INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH

Click hereVehicle Exterior>WINDOW / GLASS>QUARTER WINDOW GLASS>INSTALLATION202201,999999,_59,_115107,_0510344,RM100000002092A,

Hide Display 3. REGISTER TRANSMITTER ID

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>REGISTRATION202201,999999,_53,_113127,_0503457,RM100000001ZEHD,

Hide Display 4.PERFORM INITIALIZATION

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>INITIALIZATION202201,999999,_53,_113127,_0503457,RM100000001ZEHE,
