TIRE PRESSURE MONITORING TIRE PRESSURE WARNING RECEIVER REMOVAL

CAUTION / NOTICE / HINT

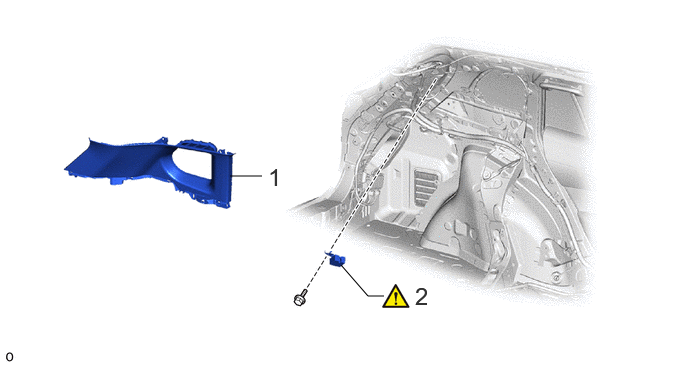

COMPONENTS (REMOVAL)

2.396,1.833 2.729,1.833 false 3.552,2.76 3.833,3.083 3.833,3.083 4,3.083 false 2.792,1.698 3.073,2.052 0.281,0.354 18 false 1 4.323,2.938 4.604,3.292 0.281,0.354 18 false 2

Procedure		Part Name Code
1	ROOF SIDE INNER GARNISH ASSEMBLY LH	62480A	-	-	-
2	TIRE PRESSURE WARNING ECU AND RECEIVER	897B0A	(202201,999999,_53,_113127,_0503377,RM100000001ZE9N_01_0249,)	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during tire pressure warning ECU and receiver removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Tire pressure warning ECU and receiver	· ID Registration · Initialization · Tire Position Identification	Tire Pressure Warning System	(202201,999999,_53,_113127,_0503457,RM100000001ZEHT,)

NOTICE:: When replacing the tire pressure warning ECU and receiver, read the transmitter IDs stored in the old ECU using the GTS and write them down before removal.; Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>DATA LIST / ACTIVE TEST202201,999999,_53,_113127,_0503457,RM100000001ZEHK,

PROCEDURE

Hide Display 62480A 1.REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

Click hereVehicle Exterior>WINDOW / GLASS>QUARTER WINDOW GLASS>REMOVAL202201,999999,_59,_115107,_0510344,RM1000000020929,

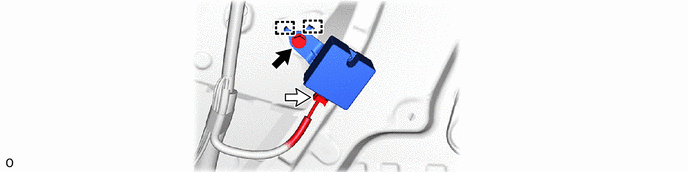

Hide Display 897B0A 2.REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER

NOTICE:: ·

Do not drop the tire pressure warning ECU and receiver, strike it with tools or subject it to impact.

·

If the tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.
