RM38T0EC _59 Vehicle Exterior _112294 LIGHTING (EXT) _0501097 HEADLIGHT ASSEMBLY(for Halogen Headlight) A

LIGHTING (EXT) HEADLIGHT ASSEMBLY(for Halogen Headlight) REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

2.333,0.083 3.5,1.5 1.167,1.417 2.979,4.417 3.313,4.417 false 2.781,1.083 3.115,1.083 false 4.208,0.802 4.542,0.802 false 6.469,0.198 6.781,0.396 0.313,0.198 10 false x3 2.417,0.125 2.792,0.365 0.375,0.24 12 false *A 3.375,4.25 3.656,4.604 0.281,0.354 18 false 1 2.573,0.917 2.854,1.271 0.281,0.354 18 false 2 4.01,0.625 4.292,0.979 0.281,0.354 18 false 3

Procedure		Part Name Code
1	FRONT BUMPER ASSEMBLY	-	-	-	-
2	WASHER INLET	85319E	-	-	-
3	HEADLIGHT ASSEMBLY	81150	(202201,999999,_59,_112294,_0501097,RM100000001Z4WM_02_0036,)	-	-

for RH Side

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

for TFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202201,202307,_59,_114126,_0505908,RM100000001ZPA9,202307,999999,_59,_114126,_0505908,RM100000002CTH8,

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202201,202307,_59,_114126,_0505910,RM100000001ZPAH,202307,999999,_59,_114126,_0505910,RM100000002CTHC,

Hide Display 85319E 2.SEPARATE WASHER INLET (for RH Side)

Hide Display 81150 3.REMOVE HEADLIGHT ASSEMBLY

0.385,0.031 0.552,0.375 0.167,0.344 18 true i 3.813,0.083 4,0.365 0.188,0.281 18 true ii 0.313,3.021 0.531,3.292 0.219,0.271 18 true iii 3.813,3.042 4.031,3.313 0.219,0.271 18 true iv

Remove in this Direction

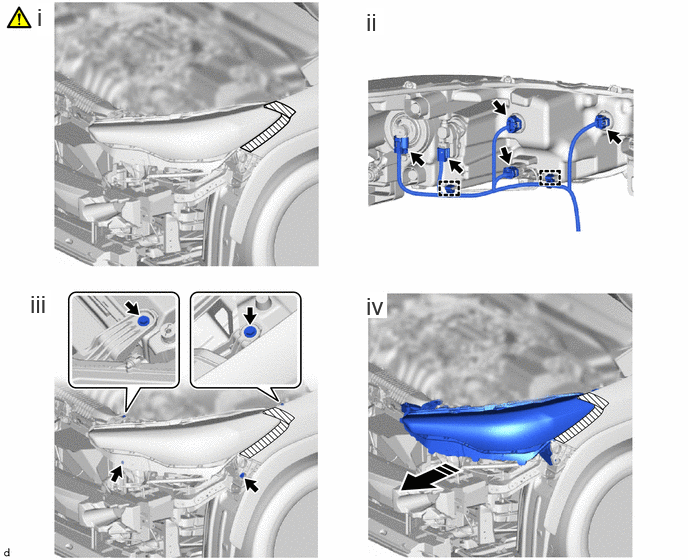

Apply protective tape around the headlight assembly as shown in the illustration.

ii.

Disengage the clamps and disconnect the 5 connectors.

iii.

Remove the bolt and 3 screws.

iv.

Remove the headlight assembly as shown in the illustration.
