ADVANCED DRIVER ASSISTANCE SYSTEM AUTOMATIC HIGH BEAM MAIN SWITCH REMOVAL

CAUTION / NOTICE / HINT

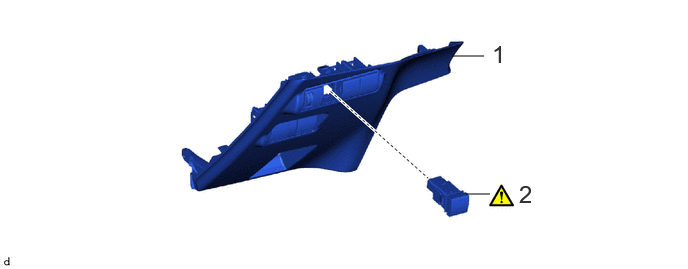

COMPONENTS (REMOVAL)

4.854,2.021 5.104,2.021 false 4.708,0.583 5.042,0.583 false 5.125,0.417 5.406,0.771 0.281,0.354 18 false 1 5.406,1.875 5.688,2.229 0.281,0.354 18 false 2

Procedure		Part Name Code
1	LOWER INSTRUMENT PANEL FINISH PANEL	55432B	-	-	-
2	AUTO HIGH BEAM SWITCH	84153	(202201,999999,_95,_112293,_0501096,RM100000001Z4WG_01_0031,)	-	-

PROCEDURE

Hide Display 55432B 1.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT LEVELING SWITCH>REMOVAL202201,999999,_59,_112294,_0501119,RM100000001Z4ZP,

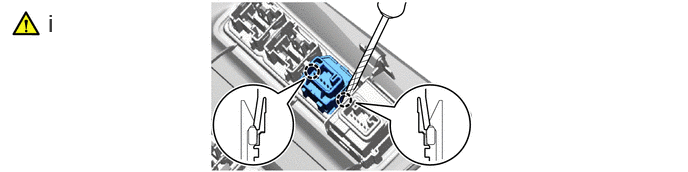

Hide Display 84153 2.REMOVE AUTO HIGH BEAM SWITCH

0.5,0.094 0.656,0.292 0.156,0.198 18 false i

Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the auto high beam switch.
