PARK ASSIST / MONITORING PANORAMIC VIEW MONITOR SWITCH REMOVAL

CAUTION / NOTICE / HINT

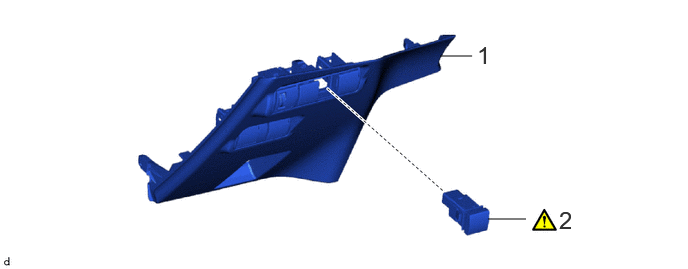

COMPONENTS (REMOVAL)

4.583,0.583 4.917,0.583 false 5.083,2.281 5.479,2.281 false 4.969,0.427 5.25,0.781 0.281,0.354 18 false 1 5.823,2.146 6.104,2.5 0.281,0.354 18 false 2

Procedure		Part Name Code
1	LOWER INSTRUMENT PANEL FINISH PANEL	55432B	-	-	-
2	PANORAMIC VIEW MONITOR SWITCH	84721B	(202201,999999,_56,_111969,_0500001,RM100000001Z13P_01_0051,)	-	-

PROCEDURE

Hide Display 55432B 1.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT LEVELING SWITCH>REMOVAL202201,999999,_59,_112294,_0501119,RM100000001Z4ZP,

Hide Display 84721B 2.REMOVE PANORAMIC VIEW MONITOR SWITCH

1.948,0.031 2.271,0.365 0.323,0.333 18 false i

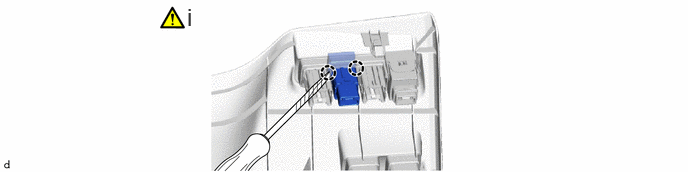

Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the panoramic view monitor switch.
