AUDIO / VIDEO NOISE FILTER REMOVAL

CAUTION / NOTICE / HINT

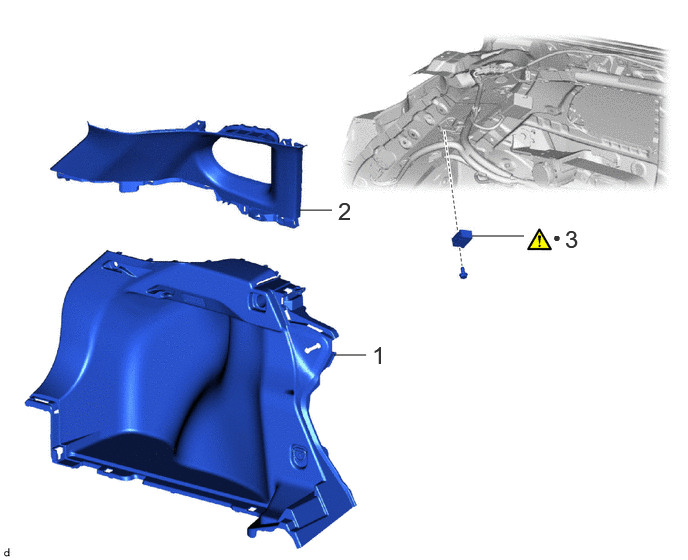

COMPONENTS (REMOVAL)

3.479,3.698 3.813,3.698 false 4.917,2.458 5.458,2.458 false 3.125,2.188 3.458,2.188 false 3.875,3.552 4.156,3.906 0.281,0.354 18 false 1 5.885,2.344 6.167,2.698 0.281,0.354 18 false 3 5.76,2.385 5.917,2.583 0.156,0.198 10 false ● 3.521,2.052 3.802,2.406 0.281,0.354 18 false 2

Procedure		Part Name Code
1	DECK TRIM SIDE PANEL ASSEMBLY LH	64740C	-	-	-
2	ROOF SIDE INNER GARNISH ASSEMBLY LH	62480A	-	-	-
3	RADIO SETTING CONDENSER	86011A	(202201,999999,_56,_111966,_0499971,RM100000001Z108_01_0096,)	-	-

●

Non-reusable part

PROCEDURE

Hide Display 64740C 1.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202201,202307,_58,_114202,_0509303,RM10000000204JB,202307,999999,_58,_114202,_0509303,RM100000002BZYK,

Hide Display 62480A 2.REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202201,202307,_58,_112291,_0501087,RM100000001Z4VN_02_0039,202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0039,

Hide Display 86011A 3.REMOVE RADIO SETTING CONDENSER

NOTICE:: When a terminal cover is removed, the radio setting condenser must be replaced because the terminal covers and condenser are supplied as a set.

2.698,1.385 2.896,1.719 0.198,0.333 18 true i 2.927,0.771 3.125,1.104 0.198,0.333 18 true ii

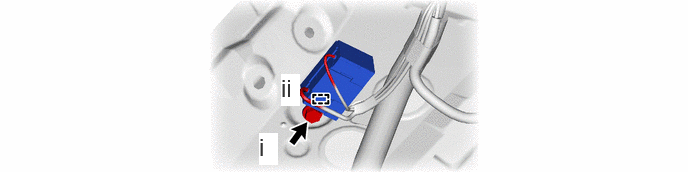

Remove the bolt.

ii.

Disengage the clamp to disconnect the radio setting condenser with wire harness from the vehicle body.

0.74,1.073 1,0.958 false 5.948,1.469 6.208,1.354 false 4.417,2.104 4.75,1.448 true 5.198,3.26 5.417,2.906 false 0.625,0.167 0.906,0.521 0.281,0.354 18 false i 4.281,0.344 4.563,0.698 0.281,0.354 18 false ii 0.708,3.073 0.99,3.427 0.281,0.354 18 false iii 4.313,3.063 4.594,3.417 0.281,0.354 18 false iv 0.542,0.958 0.854,1.115 0.313,0.156 10 false *a 4.302,2.125 4.615,2.281 0.313,0.156 10 false *b 6.26,1.219 6.573,1.375 0.313,0.156 10 false *b 5.469,2.792 5.781,2.948 0.313,0.156 10 false *b

*a	Cover	*b	Terminal Cover
	Pull in this Direction		Remove in this Direction

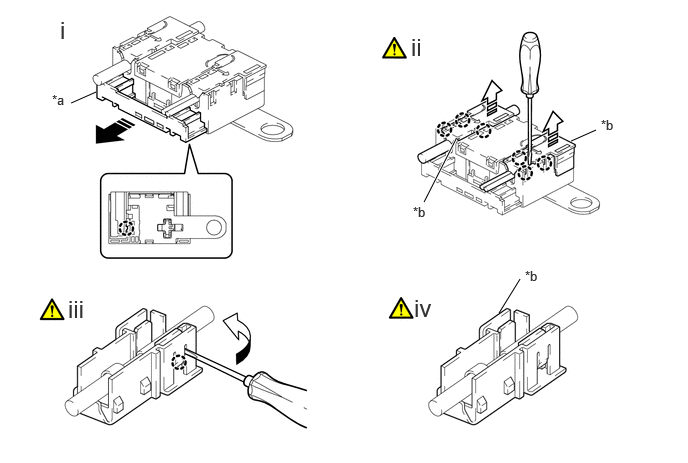

Disengage the claw to pull out the cover as shown in the illustration.

ii.

Using a screwdriver, disengage the claws to remove the 2 terminal covers with wire harness from the radio setting condenser as shown in the illustration.

iii.

Using a screwdriver, bend back and break off the claw as shown in the illustration.

HINT:: Use the same procedure for the other terminal cover.

iv.

Remove the terminal cover from the wire harness.

NOTICE:: ·

Make sure to hold the crimped side of the terminal when disconnecting the wire harness from the terminal cover.

·

Make sure not to bend the exposed wire when disconnecting the wire harness from the terminal cover.

·

Check for deformation of the terminal after the wire harness has been removed from the terminal cover.

HINT:: Use the same procedure for the other terminal cover.
