RM38T0EC _56 Audio / Visual / Telematics _111966 AUDIO / VIDEO _0499968 ROOF ANTENNA A

AUDIO / VIDEO  ROOF ANTENNA  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

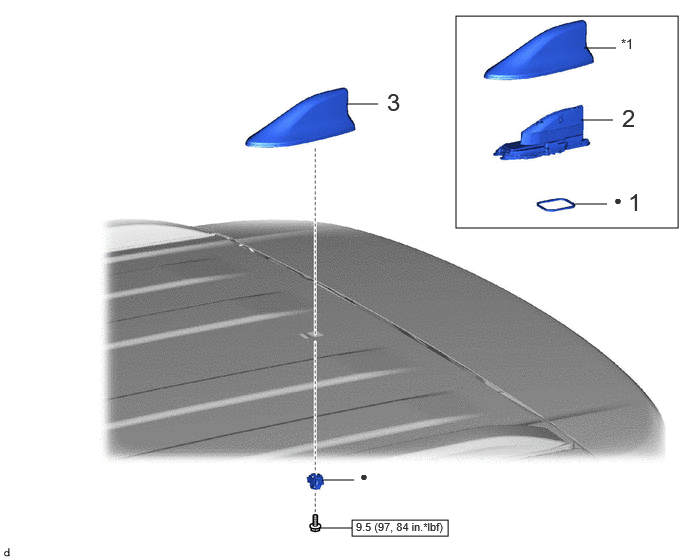

E454913N02
4.75,0.167 7.063,2.375 2.313,2.208 3.667,5.417 4.667,5.583 1,0.167 3.604,1.083 3.938,1.083 false 5.99,2.125 6.323,2.125 false 3.354,5 3.688,5 false 6.052,1.25 6.385,1.25 false 6.083,0.5 6.417,0.5 false 3.333,5.5 3.667,5.5 false 6.479,1.083 6.76,1.438 0.281,0.354 18 false 2 6.469,0.375 6.781,0.573 0.313,0.198 10 false *1 6.396,2 6.896,2.229 0.5,0.229 10 false ● 3.75,4.875 4.25,5.104 0.5,0.229 10 false ● 4.031,0.917 4.313,1.271 0.281,0.354 18 false 3 6.542,1.958 6.823,2.313 0.281,0.354 18 false 1 3.708,5.417 6.156,5.573 2.448,0.156 8 false 9.5 (97, 84 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 SEAL - - - -
2 ROOF ANTENNA ASSEMBLY 86300J - - -
3 ROOF ANTENNA ASSEMBLY WITH COVER - - - -

*1 COVER - -
V100146

N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

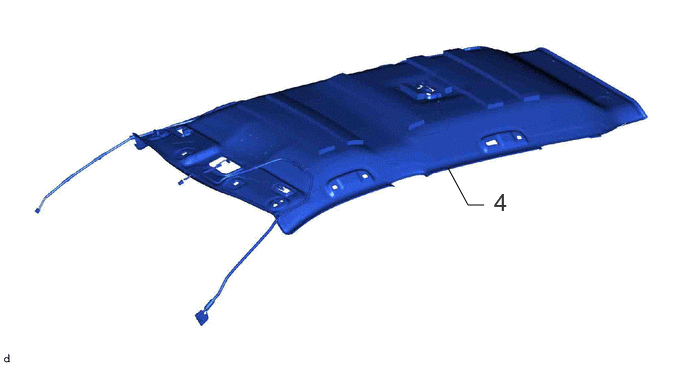

E454912N02
4.667,1.75 4.875,2.135 4.875,2.135 5.042,2.135 false 5.146,1.958 5.427,2.313 0.281,0.354 18 false 4

Procedure Part Name Code
Z101186

Z101188

Z101187

4 ROOF HEADLINING ASSEMBLY 63310 - - -

PROCEDURE

Hide 1.INSTALL SEAL

Hide 86300J 2.INSTALL ROOF ANTENNA ASSEMBLY

Hide 3.INSTALL ROOF ANTENNA ASSEMBLY WITH COVER

Torque:
9.5 N*m (97 kgf*cm, 84 in.*lbf)
