NETWORKING  CAN COMMUNICATION SYSTEM(for SFTM Made HV Model)  Radio Receiver Assembly Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Radio Receiver Assembly Communication Stop Mode Communication stop for "Display and Navigation (AVN)" is indicated on the "Communication Bus Check" screen of the GTS.
(Click here)
·

Navigation receiver assembly branch wire or connector

·

Power source circuit of navigation receiver assembly

·

Navigation receiver assembly ground circuit

·

Navigation receiver assembly

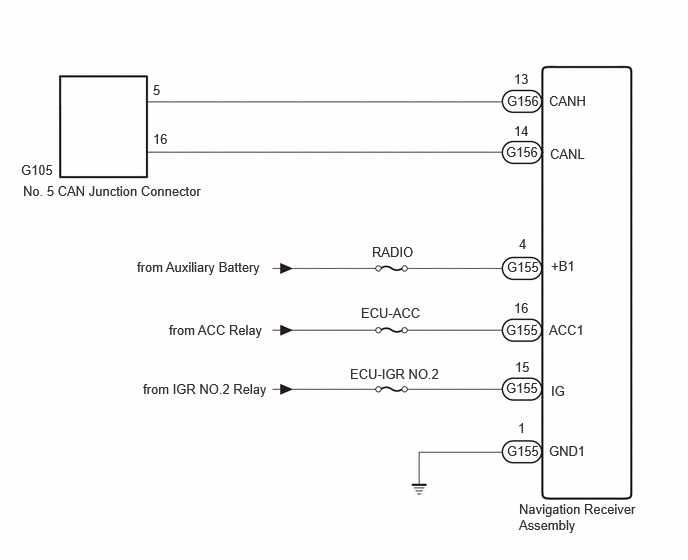

WIRING DIAGRAM

C506132E11
5.406,5.219 6.635,5.646 1.229,0.427 10 false Navigation Receiver Assembly 5.719,0.969 6.333,1.167 0.615,0.198 10 false CANH 5.729,1.521 6.344,1.719 0.615,0.198 10 false CANL 5.74,2.688 6.354,2.885 0.615,0.198 10 false +B1 5.719,4.615 6.333,4.813 0.615,0.198 10 false GND1 5.74,3.99 6.354,4.188 0.615,0.198 10 false IG 5.719,3.354 6.333,3.552 0.615,0.198 10 false ACC1 5.281,0.969 5.896,1.167 0.615,0.198 10 false G156 5.271,1.5 5.885,1.698 0.615,0.198 10 false G156 5.354,0.74 5.625,0.99 0.271,0.25 10 false 13 5.396,4.375 5.552,4.573 0.156,0.198 10 false 1 5.365,3.74 5.667,3.948 0.302,0.208 10 false 15 5.354,3.125 5.646,3.323 0.292,0.198 10 false 16 5.406,2.458 5.563,2.656 0.156,0.198 10 false 4 5.354,1.281 5.594,1.479 0.24,0.198 10 false 14 1.594,0.854 1.896,1.073 0.302,0.219 10 false 5 1.594,1.365 1.906,1.667 0.313,0.302 10 false 16 0.24,1.906 2.573,2.26 2.333,0.354 10 false No. 5 CAN Junction Connector 0.219,1.688 0.833,1.885 0.615,0.198 10 false G105 3.875,2.542 4.76,2.948 0.885,0.406 10 false RADIO 3.76,3.177 4.708,3.51 0.948,0.333 10 false ECU-ACC 3.646,3.813 4.708,4.229 1.063,0.417 10 false ECU-IGR NO.2 1.427,2.698 2.99,3.073 1.563,0.375 10 false from Auxiliary Battery 1.76,3.354 3.052,3.667 1.292,0.313 10 false from ACC Relay 1.49,3.969 3.094,4.292 1.604,0.323 10 false from IGR NO.2 Relay 5.281,4.615 5.896,4.813 0.615,0.198 10 false G155 5.271,3.958 5.885,4.156 0.615,0.198 10 false G155 5.271,3.354 5.885,3.552 0.615,0.198 10 false G155 5.281,2.698 5.896,2.896 0.615,0.198 10 false G155

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the power switch on (IG) and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made HV Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS WIRE (NAVIGATION RECEIVER ASSEMBLY BRANCH WIRE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.
C502900C01
1.469,0.094 1.969,0.375 0.5,0.281 2.031,1.219 2.208,1.917 2.208,1.917 2.458,1.917 true 1.875,1.229 1.75,1.938 1.75,1.938 1.583,1.938 true 0.083,0.083 0.396,0.24 0.313,0.156 10 false *a 2.542,1.854 3.156,2.052 0.615,0.198 10 false CANL 1.167,1.885 1.781,2.083 0.615,0.198 10 false CANH 1.552,0.146 2.01,0.344 0.458,0.198 10 false G156
*a Front view of wire harness connector
(to Navigation Receiver Assembly)


Disconnect the navigation receiver assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G156-13 (CANH) - G156-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C502848C01
1.396,0.167 1.802,0.385 0.406,0.219 0.729,0.938 0.698,0.313 0.698,0.313 0.5,0.313 true 2.5,1.219 2.146,2 2.146,2 2.281,2 true 2.542,0.938 2.656,0.313 2.656,0.313 2.854,0.313 true 2.615,1.188 2.708,1.958 2.708,1.958 2.844,1.958 true 0.115,0.24 0.573,0.438 0.458,0.198 10 false GND1 2.917,0.25 3.375,0.448 0.458,0.198 10 false +B1 2.885,1.844 3.344,2.042 0.458,0.198 10 false ACC1 2.354,1.917 2.813,2.115 0.458,0.198 10 false IG 1.438,0.188 1.896,0.385 0.458,0.198 10 false J155 0.083,0.042 0.542,0.24 0.458,0.198 10 false *a
*a Front view of wire harness connector
(to Navigation Receiver Assembly)


Disconnect the navigation receiver assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
J155-1 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



c.

Reconnect the cable to the negative (-) auxiliary battery terminal.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
J155-4 (+B1) - Body ground Power switch off 11 to 14 V
J155-16 (ACC1) - Body ground Power switch on (ACC) 11 to 14 V
Power switch off Below 1 V
J155-15 (IG) - Body ground Power switch on (IG) 11 to 14 V
Power switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
