General
_083136
MAINTENANCE
_0400711
BATTERY COOLING FILTER
A
MAINTENANCE BATTERY COOLING FILTER INSTALLATION
PROCEDURE
G92DH
1.INSTALL NO. 1 HV BATTERY INTAKE FILTER
a.
Engage the claw to temporarily install the No. 1 HV battery intake filter to the battery service hole cover.
b.
1.75,0.552 1.99,0.74
0.24,0.188
10
true
B
3.156,1.219 3.396,1.406
0.24,0.188
10
true
A
2.448,0.573 2.688,0.76
0.24,0.188
10
true
B
2.406,1.635 2.646,1.823
0.24,0.188
10
true
B
1.677,1.531 1.917,1.719
0.24,0.188
10
true
B

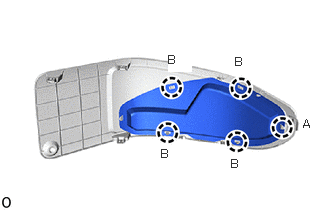

Engage the 5 claws to install the No. 1 HV battery intake filter to the battery service hole cover.
- HINT:
-
Engage the 5 claws in the order of (A), (B).
58441J
2.INSTALL BATTERY SERVICE HOLE COVER
a.
Engage the guide and 8 claws.
b.
Install the battery service hole cover with the clip.
3. CLEAR DTC
- HINT:
-
If the message "Maintenance Required for Traction Battery Cooling Parts See Owner's Manual" is displayed on the multi-information display, clean or replace the No. 1 HV battery intake filter, and clear the DTCs to reset the learning values even if no DTCs are output.
