RM36D0EC _51 Engine / Hybrid System _087041 M20C-FKS COOLING _0417549 FLOW SHUTTING VALVE(for Heater) A

M20C-FKS COOLING FLOW SHUTTING VALVE(for Heater) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during flow shutting valve (water by-pass hose assembly) removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative when not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
Lane tracing assist system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system		(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Power back door system
Power back door function*	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,999999,_V1,_083041,_0402304,RM100000002AYZV,

Hide Display 2.REMOVE BATTERY

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0418197,RM100000002NHPI,

Hide Display 53895B 3.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202405,999999,_51,_087037,_0417212,RM100000002JNRH_01_0303,

Hide Display 53896B 4.REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202405,999999,_51,_087037,_0417212,RM100000002JNRH_01_0304,

Hide Display 51441 5.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202405,999999,_51,_087037,_0417212,RM100000002JNRH_01_0003,

Hide Display 51420 6.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202405,999999,_51,_087037,_0417212,RM100000002JNRH_01_0004,

Hide Display 7.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>M20C-FKS COOLANT>REPLACEMENT202004,999999,_V1,_083136,_0418198,RM100000001MJ2F_02_0001,

Hide Display 16260 8.REMOVE FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

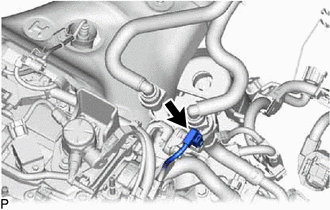

Disconnect the flow shutting valve (water by-pass hose assembly) connector.

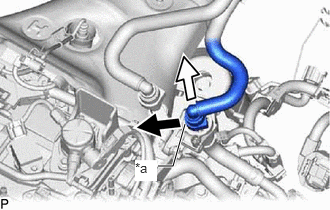

Disconnect the inlet heater water hose connector from the flow shutting valve (water by-pass hose assembly).

NOTICE:: Remove any foreign matter on the flow shutting valve (water by-pass hose assembly) and inlet heater water hose connector before performing this work.

1.646,1.729 1.802,1.729 1.802,1.729 1.927,1.292 true 1.406,1.667 1.635,1.885 0.229,0.219 10 true *a

*a	Retainer
	Pull out
	Pull off

Pull out the retainer to detach the lock claws and pull off the inlet heater water hose connector.

ii.

Check that there is no foreign matter on the sealing surfaces of the disconnected water lines. Clean them if necessary.

iii.

Cover the disconnected inlet heater water hose connector with a plastic bag to prevent damage and contamination.

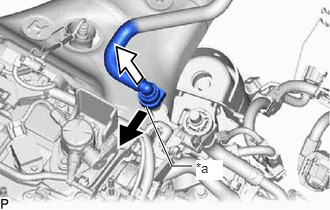

Disconnect the outlet heater water hose connector from the No. 2 water by-pass pipe sub-assembly.

NOTICE:: Remove any foreign matter on the No. 2 water by-pass pipe sub-assembly and outlet heater water hose connector before performing this work.

2,1.729 1.792,1.729 1.792,1.729 1.521,1.115 true 2.042,1.667 2.323,1.875 0.281,0.208 10 true *a

*a	Retainer
	Pull out
	Pull off

Pull out the retainer to detach the lock claws and pull off the outlet heater water hose connector.

ii.

Check that there is no foreign matter on the sealing surfaces of the disconnected water lines. Clean them if necessary.

iii.

Cover the disconnected No. 2 water by-pass pipe sub-assembly and outlet heater water hose connector with plastic bags to prevent damage and contamination.

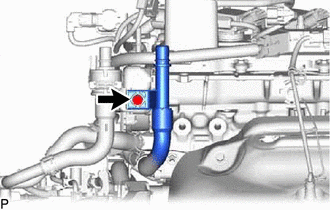

Remove the bolt to disconnect the No. 2 water by-pass pipe sub-assembly.

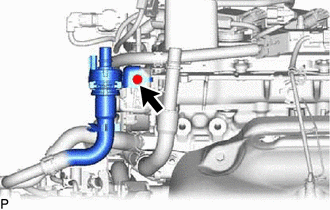

Remove the bolt to disconnect the flow shutting valve (water by-pass hose assembly).

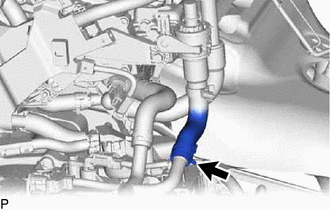

Slide the clip and disconnect the flow shutting valve (water by-pass hose assembly) from the water by-pass outlet sub-assembly.

HINT:: Use a container to catch any engine coolant which flows out of the flow shutting valve (water by-pass hose assembly) and water by-pass outlet sub-assembly.
