NETWORKING  CAN COMMUNICATION SYSTEM(for SFTM Made HV Model)  Check Bus 2 Line


DESCRIPTION

Symptom Trouble Area
There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors that store a communication stop history on the "Detail" screen.
·

CAN bus lines or connector

·

Central gateway ECU (network gateway ECU)

·

ECM

·

Hybrid vehicle control ECU assembly

·

Inverter with Converter Assembly

·

Vehicle approaching speaker controller

·

Battery ECU assembly

·

No. 3 CAN junction connector

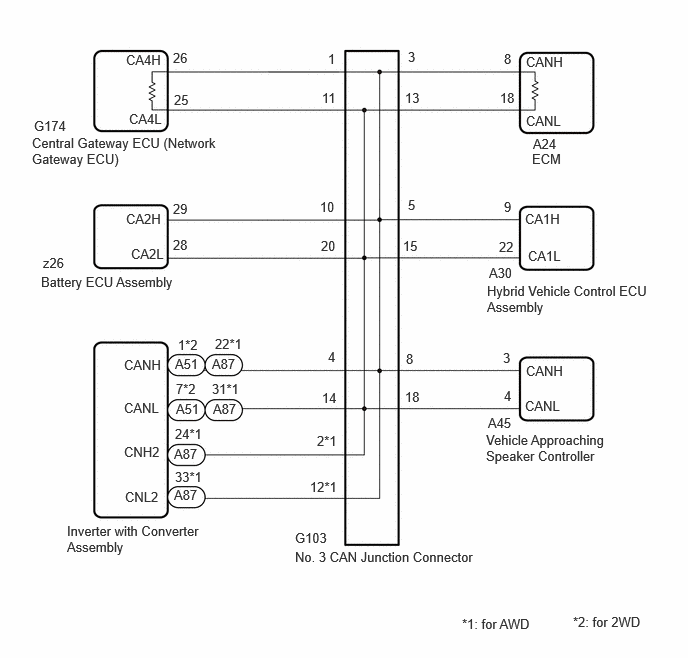

WIRING DIAGRAM

C520684E03
0.354,1.229 0.969,1.427 0.615,0.198 10 false G174 0.333,1.406 2.323,1.802 1.99,0.396 10 false Central Gateway ECU (Network Gateway ECU) 1.313,0.542 1.927,0.74 0.615,0.198 10 false CA4H 1.344,1.156 1.792,1.354 0.448,0.198 10 false CA4L 1.802,0.521 2.417,0.719 0.615,0.198 10 false 26 1.813,0.958 2.427,1.156 0.615,0.198 10 false 25 0.448,2.656 1.063,2.854 0.615,0.198 10 false z26 0.427,2.854 2.385,3.167 1.958,0.313 10 false Battery ECU Assembly 1.313,2.198 1.75,2.375 0.438,0.177 10 false CA2H 1.365,2.563 1.802,2.74 0.438,0.177 10 false CA2L 1.802,2.094 2.417,2.292 0.615,0.198 10 false 29 1.802,2.469 2.417,2.667 0.615,0.198 10 false 28 3.073,5.521 3.688,5.719 0.615,0.198 10 false G103 3.073,5.719 5.167,6.073 2.094,0.354 10 false No. 3 CAN Junction Connector 3.354,0.938 3.656,1.135 0.302,0.198 10 false 11 3.417,0.531 3.646,0.719 0.229,0.188 10 false 1 4.25,0.51 4.865,0.708 0.615,0.198 10 false 3 4.219,0.938 4.833,1.135 0.615,0.198 10 false 13 5.208,0.938 5.823,1.135 0.615,0.198 10 false 18 5.25,0.531 5.865,0.729 0.615,0.198 10 false 8 5.479,0.563 6.094,0.76 0.615,0.198 10 false CANH 5.479,1.177 6.094,1.375 0.615,0.198 10 false CANL 4.198,2.479 4.813,2.677 0.615,0.198 10 false 15 5.552,1.417 6.167,1.615 0.615,0.198 10 false A24 5.542,1.573 6.781,1.875 1.24,0.302 10 false ECM 4.25,2.052 4.865,2.25 0.615,0.198 10 false 5 5.094,2.76 6.188,2.948 1.094,0.188 10 false A30 5.073,2.948 6.802,3.573 1.729,0.625 10 false Hybrid Vehicle Control ECU Assembly 5.198,2.49 5.813,2.688 0.615,0.198 10 false 22 5.25,2.073 5.865,2.271 0.615,0.198 10 false 9 5.5,2.583 6.115,2.781 0.615,0.198 10 false CA1L 5.469,2.198 6.083,2.396 0.615,0.198 10 false CA1H 5.083,4.323 5.698,4.521 0.615,0.198 10 false A45 5.063,4.5 6.365,4.896 1.302,0.396 10 false Vehicle Approaching Speaker Controller 4.219,4.052 4.833,4.25 0.615,0.198 10 false 18 4.229,3.656 4.844,3.854 0.615,0.198 10 false 8 5.469,4.146 6.083,4.344 0.615,0.198 10 false CANL 5.479,3.781 6.094,3.979 0.615,0.198 10 false CANH 5.25,4.042 5.865,4.24 0.615,0.198 10 false 4 5.24,3.646 5.854,3.844 0.615,0.198 10 false 3 3.417,3.635 4.031,3.833 0.615,0.198 10 false 4 2.208,3.708 2.646,3.885 0.438,0.177 10 false A87 1.823,3.708 2.26,3.885 0.438,0.177 10 false A51 2.219,4.177 2.656,4.354 0.438,0.177 10 false A87 1.833,4.177 2.271,4.354 0.438,0.177 10 false A51 1.813,4.646 2.25,4.823 0.438,0.177 10 false A87 1.813,5.073 2.25,5.25 0.438,0.177 10 false A87 3.354,4.063 3.969,4.26 0.615,0.198 10 false 14 3.302,4.51 3.917,4.708 0.615,0.198 10 false 2*1 3.229,4.99 3.844,5.188 0.615,0.198 10 false 12*1 1.854,3.51 2.292,3.688 0.438,0.177 10 false 1*2 2.24,3.5 2.677,3.677 0.438,0.177 10 false 22*1 1.833,3.969 2.271,4.146 0.438,0.177 10 false 7*2 2.208,3.969 2.646,4.146 0.438,0.177 10 false 31*1 1.823,4.438 2.26,4.615 0.438,0.177 10 false 24*1 1.823,4.885 2.26,5.063 0.438,0.177 10 false 33*1 0.698,5.448 2.094,6.104 1.396,0.656 10 false Inverter with Converter Assembly 1.292,3.719 1.729,3.896 0.438,0.177 10 false CANH 1.292,4.167 1.729,4.344 0.438,0.177 10 false CANL 1.292,4.625 1.729,4.802 0.438,0.177 10 false CNH2 1.302,5.094 1.74,5.271 0.438,0.177 10 false CNL2 3.333,2.073 3.563,2.26 0.229,0.188 10 false 10 3.344,2.479 3.646,2.677 0.302,0.198 10 false 20 4.813,6.417 6.073,6.802 1.26,0.385 10 false *1: for AWD 5.969,6.396 6.833,6.719 0.865,0.323 10 false *2: for 2WD

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the power switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the power switch on (IG) and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made HV Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS WIRE
NOTICE:

Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.


HINT:

Operating the power switch, any other switches or door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.


a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.
C502817C09
1.51,0.073 1.927,0.323 0.417,0.25 1.219,2.01 1.427,2.01 1.427,2.01 2.01,0.906 true 2.51,1.99 2.354,1.99 2.354,1.99 2.104,0.885 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.552,0.125 2.01,0.323 0.458,0.198 10 false G174 0.813,1.906 1.281,2.125 0.469,0.219 10 false CA4H 2.615,1.917 3.177,2.167 0.563,0.25 10 false CA4L
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G174-26 (CA4H) - G174-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK FOR SHORT IN CAN BUS WIRES

NG

50.CHECK FOR OPEN IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
2.CHECK FOR SHORT IN CAN BUS WIRES
a.
C502817C09
1.51,0.073 1.927,0.323 0.417,0.25 1.219,2.01 1.427,2.01 1.427,2.01 2.01,0.906 true 2.51,1.99 2.354,1.99 2.354,1.99 2.104,0.885 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.552,0.125 2.01,0.323 0.458,0.198 10 false G174 0.813,1.906 1.281,2.125 0.469,0.219 10 false CA4H 2.615,1.917 3.177,2.167 0.563,0.25 10 false CA4L
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G174-26 (CA4H) - G174-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher



Result:
Proceed to
OK
NG



OK

3.CHECK FOR SHORT TO B+ IN CAN BUS WIRE

NG

35.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
3.CHECK FOR SHORT TO B+ IN CAN BUS WIRE
a.
C502817C09
1.51,0.073 1.927,0.323 0.417,0.25 1.219,2.01 1.427,2.01 1.427,2.01 2.01,0.906 true 2.51,1.99 2.354,1.99 2.354,1.99 2.104,0.885 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.552,0.125 2.01,0.323 0.458,0.198 10 false G174 0.813,1.906 1.281,2.125 0.469,0.219 10 false CA4H 2.615,1.917 3.177,2.167 0.563,0.25 10 false CA4L
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G174-26 (CA4H) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G174-25 (CA4L) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

4.CHECK FOR SHORT TO GND IN CAN BUS WIRE

NG

20.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
4.CHECK FOR SHORT TO GND IN CAN BUS WIRE
a.
C502817C09
1.51,0.073 1.927,0.323 0.417,0.25 1.219,2.01 1.427,2.01 1.427,2.01 2.01,0.906 true 2.51,1.99 2.354,1.99 2.354,1.99 2.104,0.885 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.552,0.125 2.01,0.323 0.458,0.198 10 false G174 0.813,1.906 1.281,2.125 0.469,0.219 10 false CA4H 2.615,1.917 3.177,2.167 0.563,0.25 10 false CA4L
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G174-26 (CA4H) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G174-25 (CA4L) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

5.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
5.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G103 No. 3 CAN junction connector.

C531708C01
3.333,0.375 3.813,0.646 0.479,0.271 1.833,1.406 1.833,0.708 1.833,0.708 1.677,0.708 true 1.646,2.208 1.833,2.208 1.833,2.208 1.833,1.677 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.396,0.427 3.99,0.635 0.594,0.208 10 false G103 1.125,0.604 1.781,0.802 0.656,0.198 10 false CANH*b 1.115,2.104 1.771,2.302 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector

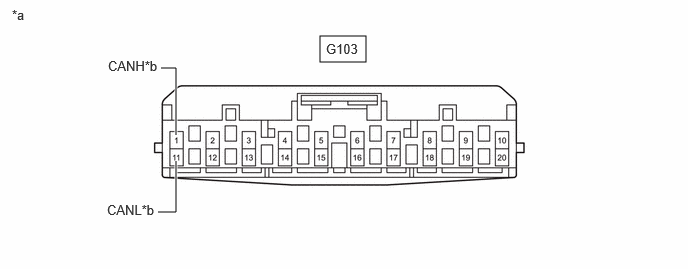

(to No. 3 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-1 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-11 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

6.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)

NG

13.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
6.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C531708C02

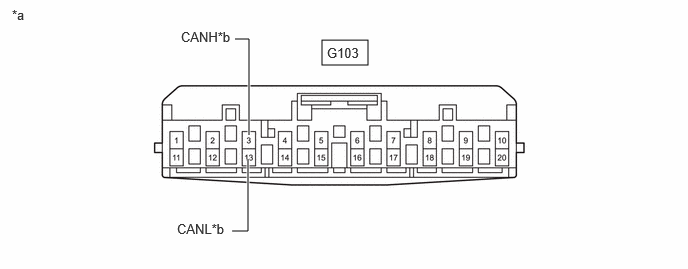

3.354,0.417 3.833,0.677 0.479,0.26 2.594,1.406 2.594,0.406 2.594,0.406 2.448,0.406 true 2.417,2.406 2.583,2.406 2.583,2.406 2.583,1.656 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.406,0.469 4,0.677 0.594,0.208 10 false G103 1.885,0.302 2.542,0.5 0.656,0.198 10 false CANH*b 1.844,2.302 2.5,2.5 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G103-3 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-13 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

7.CHECK VEHICLE TYPE

NG

14.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)
7.CHECK VEHICLE TYPE
a.

Check the vehicle type.


Result:
Result Proceed to
for AWD A
except AWD B



A

8.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

B

9.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
8.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C531708C03
3.302,0.427 3.771,0.708 0.469,0.281 2.208,1.406 2.208,0.615 2.208,0.615 2.063,0.615 true 2.052,2.24 2.219,2.24 2.219,2.24 2.219,1.688 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.365,0.479 3.958,0.688 0.594,0.208 10 false G103 1.5,0.49 2.156,0.688 0.656,0.198 10 false CANH*b 1.51,2.135 2.167,2.333 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector

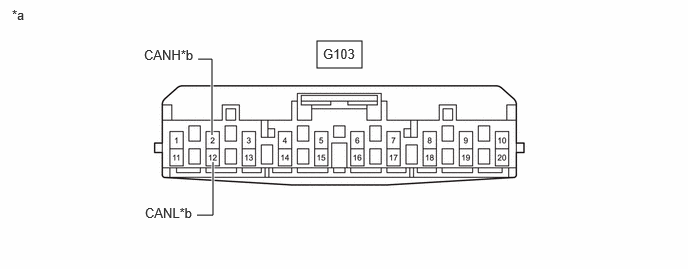

(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-2 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-12 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

9.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

15.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
9.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C531708C04

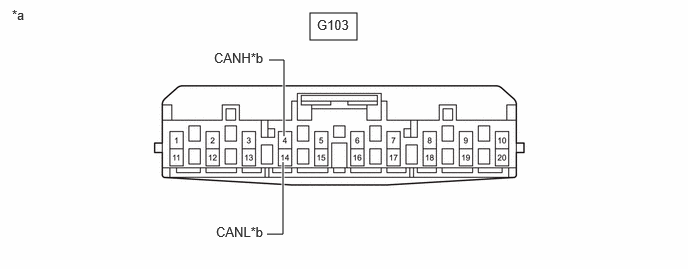

3.229,0.135 3.719,0.417 0.49,0.281 2.781,2.438 2.948,2.438 2.948,2.438 2.948,1.688 true 2.802,0.625 2.958,0.625 2.958,0.625 2.958,1.417 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.302,0.177 3.896,0.385 0.594,0.208 10 false G103 2.229,0.521 2.885,0.719 0.656,0.198 10 false CANH*b 2.25,2.333 2.906,2.531 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-4 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-14 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

10.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)

NG

16.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
10.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C531708C05
3.229,0.135 3.719,0.417 0.49,0.281 3.188,2.438 3.354,2.438 3.354,2.438 3.354,1.688 true 3.188,0.604 3.344,0.604 3.344,0.604 3.344,1.396 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.302,0.177 3.896,0.385 0.594,0.208 10 false G103 2.635,0.5 3.292,0.698 0.656,0.198 10 false CANH*b 2.615,2.333 3.271,2.531 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector

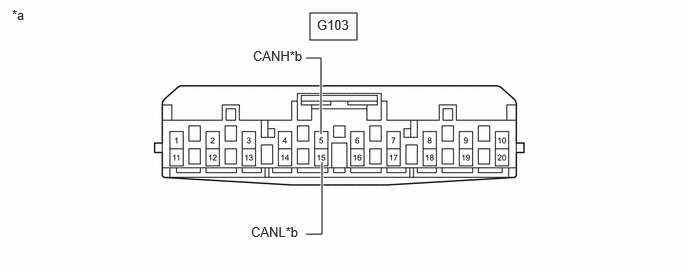

(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-5 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-15 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

11.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

NG

17.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
11.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
a.

Measure the resistance according to the value(s) in the table below.

C531708C06
3.292,0.406 3.76,0.688 0.469,0.281 4.479,1.396 4.479,0.74 4.479,0.74 4.656,0.74 true 4.635,2.115 4.469,2.115 4.469,2.115 4.469,1.688 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.354,0.469 3.948,0.677 0.594,0.208 10 false G103 4.708,0.625 5.365,0.823 0.656,0.198 10 false CANH*b 4.677,2.01 5.333,2.208 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector

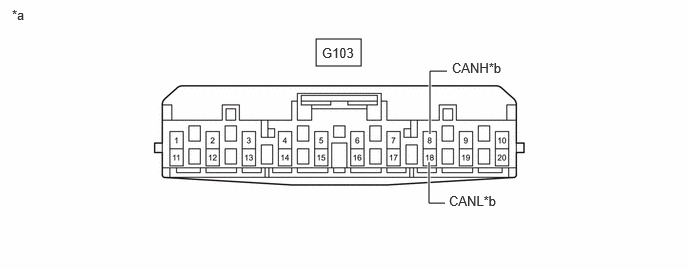

(to No. 3 CAN Junction Connector) 		*b to Vehicle Approaching Speaker Controller


Standard Resistance:
Tester Connection Condition Specified Condition
G103-8 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-18 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

12.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

18.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
12.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C531708C07

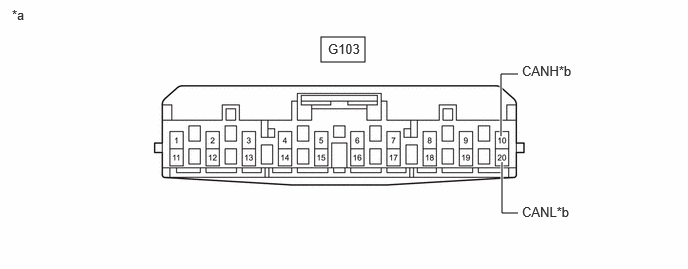

3.344,0.385 3.802,0.646 0.458,0.26 5.396,2.219 5.229,2.219 5.229,2.219 5.229,1.688 true 5.219,1.417 5.219,0.771 5.219,0.771 5.396,0.771 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.417,0.427 3.844,0.615 0.427,0.188 10 false G103 5.438,0.656 6.094,0.854 0.656,0.198 10 false CANH*b 5.438,2.125 6.094,2.323 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector

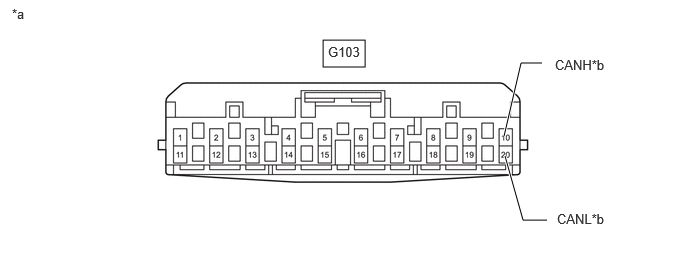

(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-10 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-20 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE NO. 3 CAN JUNCTION CONNECTOR

NG

19.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
13.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G174 central gateway ECU (network gateway ECU) connector.

C531708C01
3.333,0.375 3.813,0.646 0.479,0.271 1.833,1.406 1.833,0.708 1.833,0.708 1.677,0.708 true 1.646,2.208 1.833,2.208 1.833,2.208 1.833,1.677 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.396,0.427 3.99,0.635 0.594,0.208 10 false G103 1.125,0.604 1.781,0.802 0.656,0.198 10 false CANH*b 1.115,2.104 1.771,2.302 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-1 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-11 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

14.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A24 ECM connector.

C531708C02
3.354,0.417 3.833,0.677 0.479,0.26 2.594,1.406 2.594,0.406 2.594,0.406 2.448,0.406 true 2.417,2.406 2.583,2.406 2.583,2.406 2.583,1.656 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.406,0.469 4,0.677 0.594,0.208 10 false G103 1.885,0.302 2.542,0.5 0.656,0.198 10 false CANH*b 1.844,2.302 2.5,2.5 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to ECM



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-3 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-13 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>A25F-FXS (ENGINE CONTROL)>ECM (Production date from 2021/08)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - ECM)

15.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A87 inverter with converter assembly connector.

C531708C03
3.302,0.427 3.771,0.708 0.469,0.281 2.208,1.406 2.208,0.615 2.208,0.615 2.063,0.615 true 2.052,2.24 2.219,2.24 2.219,2.24 2.219,1.688 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.365,0.479 3.958,0.688 0.594,0.208 10 false G103 1.5,0.49 2.156,0.688 0.656,0.198 10 false CANH*b 1.51,2.135 2.167,2.333 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-2 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-12 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

16.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

*1: for AWD

*2: for 2WD


a.

Disconnect the A87*1 or A51*2 inverter with converter assembly connector.

C531708C04
3.229,0.135 3.719,0.417 0.49,0.281 2.781,2.438 2.948,2.438 2.948,2.438 2.948,1.688 true 2.802,0.625 2.958,0.625 2.958,0.625 2.958,1.417 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.302,0.177 3.896,0.385 0.594,0.208 10 false G103 2.229,0.521 2.885,0.719 0.656,0.198 10 false CANH*b 2.25,2.333 2.906,2.531 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-4 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-14 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

for AWD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL

for 2WD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for 2WD)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

17.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
a.

Disconnect the A30 hybrid vehicle control ECU assembly connector.

C531708C05
3.229,0.135 3.719,0.417 0.49,0.281 3.188,2.438 3.354,2.438 3.354,2.438 3.354,1.688 true 3.188,0.604 3.344,0.604 3.344,0.604 3.344,1.396 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.302,0.177 3.896,0.385 0.594,0.208 10 false G103 2.635,0.5 3.292,0.698 0.656,0.198 10 false CANH*b 2.615,2.333 3.271,2.531 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-5 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-15 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)

18.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
a.

Disconnect the A45 vehicle approaching speaker controller connector.

C531708C06
3.292,0.406 3.76,0.688 0.469,0.281 4.479,1.396 4.479,0.74 4.479,0.74 4.656,0.74 true 4.635,2.115 4.469,2.115 4.469,2.115 4.469,1.688 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.354,0.469 3.948,0.677 0.594,0.208 10 false G103 4.708,0.625 5.365,0.823 0.656,0.198 10 false CANH*b 4.677,2.01 5.333,2.208 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Vehicle Approaching Speaker Controller



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-8 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-18 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER

Click hereVehicle Exterior>ACOUSTIC VEHICLE ALERTING SYSTEM>VEHICLE APPROACHING SPEAKER ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

19.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the z26 battery ECU assembly connector.

C531708C07
3.344,0.385 3.802,0.646 0.458,0.26 5.396,2.219 5.229,2.219 5.229,2.219 5.229,1.688 true 5.219,1.417 5.219,0.771 5.219,0.771 5.396,0.771 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.417,0.427 3.844,0.615 0.427,0.188 10 false G103 5.438,0.656 6.094,0.854 0.656,0.198 10 false CANH*b 5.438,2.125 6.094,2.323 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-10 (CANH) - Body ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G103-20 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY [Production date from 2021/08])>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

20.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G103 No. 3 CAN junction connector.

C531708C01
3.333,0.375 3.813,0.646 0.479,0.271 1.833,1.406 1.833,0.708 1.833,0.708 1.677,0.708 true 1.646,2.208 1.833,2.208 1.833,2.208 1.833,1.677 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.396,0.427 3.99,0.635 0.594,0.208 10 false G103 1.125,0.604 1.781,0.802 0.656,0.198 10 false CANH*b 1.115,2.104 1.771,2.302 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-1 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-11 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

21.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)

NG

28.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
21.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C531708C02
3.354,0.417 3.833,0.677 0.479,0.26 2.594,1.406 2.594,0.406 2.594,0.406 2.448,0.406 true 2.417,2.406 2.583,2.406 2.583,2.406 2.583,1.656 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.406,0.469 4,0.677 0.594,0.208 10 false G103 1.885,0.302 2.542,0.5 0.656,0.198 10 false CANH*b 1.844,2.302 2.5,2.5 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G103-3 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-13 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

22.CHECK VEHICLE TYPE

NG

29.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)
22.CHECK VEHICLE TYPE
a.

Check the vehicle type.


Result:
Result Proceed to
for AWD A
except AWD B



A

23.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

B

24.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
23.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C531708C03
3.302,0.427 3.771,0.708 0.469,0.281 2.208,1.406 2.208,0.615 2.208,0.615 2.063,0.615 true 2.052,2.24 2.219,2.24 2.219,2.24 2.219,1.688 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.365,0.479 3.958,0.688 0.594,0.208 10 false G103 1.5,0.49 2.156,0.688 0.656,0.198 10 false CANH*b 1.51,2.135 2.167,2.333 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-2 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-12 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

24.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

30.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
24.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C531708C04
3.229,0.135 3.719,0.417 0.49,0.281 2.781,2.438 2.948,2.438 2.948,2.438 2.948,1.688 true 2.802,0.625 2.958,0.625 2.958,0.625 2.958,1.417 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.302,0.177 3.896,0.385 0.594,0.208 10 false G103 2.229,0.521 2.885,0.719 0.656,0.198 10 false CANH*b 2.25,2.333 2.906,2.531 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-4 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-14 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

25.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)

NG

31.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
25.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C531708C05
3.229,0.135 3.719,0.417 0.49,0.281 3.188,2.438 3.354,2.438 3.354,2.438 3.354,1.688 true 3.188,0.604 3.344,0.604 3.344,0.604 3.344,1.396 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.302,0.177 3.896,0.385 0.594,0.208 10 false G103 2.635,0.5 3.292,0.698 0.656,0.198 10 false CANH*b 2.615,2.333 3.271,2.531 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-5 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-15 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

26.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

NG

32.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
26.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
a.

Measure the resistance according to the value(s) in the table below.

C531708C06
3.292,0.406 3.76,0.688 0.469,0.281 4.479,1.396 4.479,0.74 4.479,0.74 4.656,0.74 true 4.635,2.115 4.469,2.115 4.469,2.115 4.469,1.688 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.354,0.469 3.948,0.677 0.594,0.208 10 false G103 4.708,0.625 5.365,0.823 0.656,0.198 10 false CANH*b 4.677,2.01 5.333,2.208 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Vehicle Approaching Speaker Controller


Standard Resistance:
Tester Connection Condition Specified Condition
G103-8 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-18 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

27.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

33.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
27.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C531708C07
3.344,0.385 3.802,0.646 0.458,0.26 5.396,2.219 5.229,2.219 5.229,2.219 5.229,1.688 true 5.219,1.417 5.219,0.771 5.219,0.771 5.396,0.771 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.417,0.427 3.844,0.615 0.427,0.188 10 false G103 5.438,0.656 6.094,0.854 0.656,0.198 10 false CANH*b 5.438,2.125 6.094,2.323 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-10 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-20 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE NO. 3 CAN JUNCTION CONNECTOR

NG

34.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
28.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G174 central gateway ECU (network gateway ECU) connector.

C531708C01
3.333,0.375 3.813,0.646 0.479,0.271 1.833,1.406 1.833,0.708 1.833,0.708 1.677,0.708 true 1.646,2.208 1.833,2.208 1.833,2.208 1.833,1.677 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.396,0.427 3.99,0.635 0.594,0.208 10 false G103 1.125,0.604 1.781,0.802 0.656,0.198 10 false CANH*b 1.115,2.104 1.771,2.302 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-1 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-11 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

29.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A24 ECM connector.

C531708C02
3.354,0.417 3.833,0.677 0.479,0.26 2.594,1.406 2.594,0.406 2.594,0.406 2.448,0.406 true 2.417,2.406 2.583,2.406 2.583,2.406 2.583,1.656 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.406,0.469 4,0.677 0.594,0.208 10 false G103 1.885,0.302 2.542,0.5 0.656,0.198 10 false CANH*b 1.844,2.302 2.5,2.5 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to ECM



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-3 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-13 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>A25F-FXS (ENGINE CONTROL)>ECM (Production date from 2021/08)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - ECM)

30.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A87 inverter with converter assembly connector.

C531708C03
3.302,0.427 3.771,0.708 0.469,0.281 2.208,1.406 2.208,0.615 2.208,0.615 2.063,0.615 true 2.052,2.24 2.219,2.24 2.219,2.24 2.219,1.688 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.365,0.479 3.958,0.688 0.594,0.208 10 false G103 1.5,0.49 2.156,0.688 0.656,0.198 10 false CANH*b 1.51,2.135 2.167,2.333 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-2 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-12 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

31.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

*1: for AWD

*2: for 2WD


a.

Disconnect the A87*1 or A51*2 inverter with converter assembly connector.

C531708C04
3.229,0.135 3.719,0.417 0.49,0.281 2.781,2.438 2.948,2.438 2.948,2.438 2.948,1.688 true 2.802,0.625 2.958,0.625 2.958,0.625 2.958,1.417 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.302,0.177 3.896,0.385 0.594,0.208 10 false G103 2.229,0.521 2.885,0.719 0.656,0.198 10 false CANH*b 2.25,2.333 2.906,2.531 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-4 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-14 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

for AWD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL

for 2WD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for 2WD)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

32.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
a.

Disconnect the A30 hybrid vehicle control ECU assembly connector.

C531708C05
3.229,0.135 3.719,0.417 0.49,0.281 3.188,2.438 3.354,2.438 3.354,2.438 3.354,1.688 true 3.188,0.604 3.344,0.604 3.344,0.604 3.344,1.396 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.302,0.177 3.896,0.385 0.594,0.208 10 false G103 2.635,0.5 3.292,0.698 0.656,0.198 10 false CANH*b 2.615,2.333 3.271,2.531 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-5 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-15 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)

33.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
a.

Disconnect the A45 vehicle approaching speaker controller connector.

C531708C06
3.292,0.406 3.76,0.688 0.469,0.281 4.479,1.396 4.479,0.74 4.479,0.74 4.656,0.74 true 4.635,2.115 4.469,2.115 4.469,2.115 4.469,1.688 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.354,0.469 3.948,0.677 0.594,0.208 10 false G103 4.708,0.625 5.365,0.823 0.656,0.198 10 false CANH*b 4.677,2.01 5.333,2.208 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Vehicle Approaching Speaker Controller



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-8 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-18 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER

Click hereVehicle Exterior>ACOUSTIC VEHICLE ALERTING SYSTEM>VEHICLE APPROACHING SPEAKER ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

34.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the z26 battery ECU assembly connector.

C531708C07
3.344,0.385 3.802,0.646 0.458,0.26 5.396,2.219 5.229,2.219 5.229,2.219 5.229,1.688 true 5.219,1.417 5.219,0.771 5.219,0.771 5.396,0.771 true 0.125,0.073 0.438,0.271 0.313,0.198 10 false *a 3.417,0.427 3.844,0.615 0.427,0.188 10 false G103 5.438,0.656 6.094,0.854 0.656,0.198 10 false CANH*b 5.438,2.125 6.094,2.323 0.656,0.198 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-10 (CANH) - Positive (+) auxiliary battery terminal Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G103-20 (CANL) - Positive (+) auxiliary battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY [Production date from 2021/08])>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

35.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G103 No. 3 CAN junction connector.


C434632C11

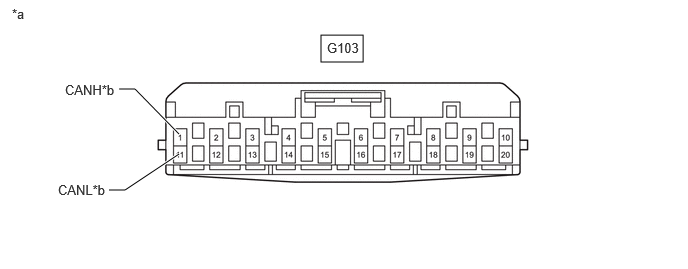

3.344,0.365 3.781,0.646 0.438,0.281 1.24,0.927 1.406,0.927 1.406,0.927 1.865,1.396 true 1.135,1.979 1.302,1.979 1.302,1.979 1.865,1.604 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.406,0.417 3.813,0.625 0.406,0.208 10 false G103 0.604,1.896 1.188,2.104 0.583,0.208 10 false CANL*b 0.677,0.854 1.26,1.063 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-1 (CANH) - G103-11 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

36.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - ECM)

NG

43.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
36.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C434632C12

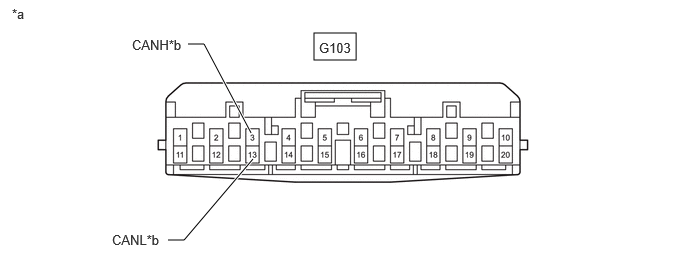

3.271,0.344 3.708,0.625 0.438,0.281 1.958,0.458 2.125,0.458 2.125,0.458 2.615,1.385 true 1.75,2.5 1.917,2.5 1.917,2.5 2.635,1.656 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.323,0.417 3.729,0.625 0.406,0.208 10 false G103 1.167,2.417 1.75,2.625 0.583,0.208 10 false CANL*b 1.375,0.385 1.958,0.594 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G103-3 (CANH) - G103-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

37.CHECK VEHICLE TYPE

NG

44.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - ECM)
37.CHECK VEHICLE TYPE
a.

Check the vehicle type.


Result:
Result Proceed to
for AWD A
except AWD B



A

38.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

B

39.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
38.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C434632C13

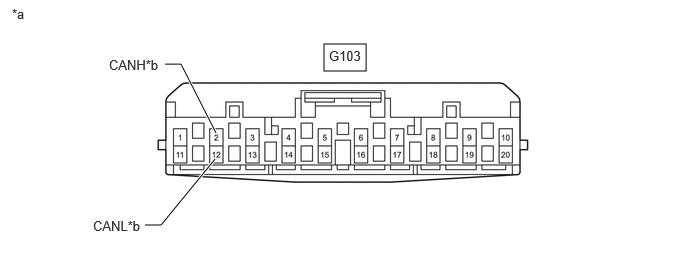

3.375,0.458 3.813,0.74 0.438,0.281 1.719,0.667 1.885,0.667 1.885,0.667 2.25,1.385 true 1.51,2.344 1.677,2.344 1.677,2.344 2.24,1.656 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.427,0.5 3.917,0.823 0.49,0.323 10 false G103 0.969,2.271 1.552,2.479 0.583,0.208 10 false CANL*b 1.135,0.594 1.719,0.802 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-2 (CANH) - G103-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

39.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

45.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
39.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C434632C14

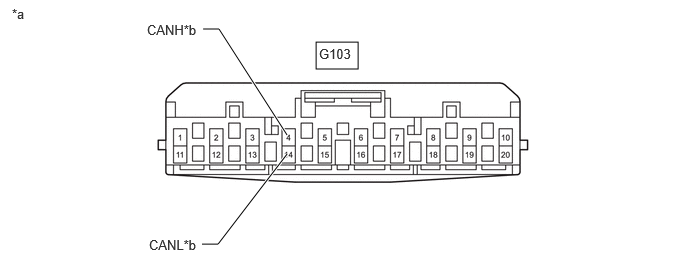

3.292,0.438 3.729,0.719 0.438,0.281 2.115,0.302 2.281,0.302 2.281,0.302 2.99,1.406 true 2.104,2.542 2.271,2.542 2.271,2.542 2.99,1.604 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.323,0.479 3.729,0.688 0.406,0.208 10 false G103 1.552,2.469 2.135,2.677 0.583,0.208 10 false CANL*b 1.531,0.229 2.167,0.49 0.635,0.26 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-4 (CANH) - G103-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

40.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)

NG

46.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
40.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C434632C15

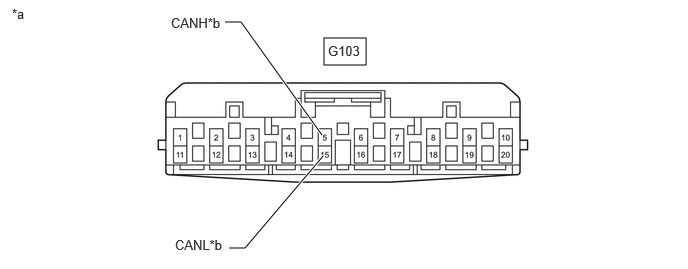

3.375,0.396 3.813,0.677 0.438,0.281 2.344,0.229 2.51,0.229 2.51,0.229 3.354,1.406 true 2.385,2.583 2.552,2.583 2.552,2.583 3.365,1.625 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.417,0.448 3.823,0.656 0.406,0.208 10 false G103 1.823,2.469 2.49,2.719 0.667,0.25 10 false CANL*b 1.781,0.156 2.5,0.427 0.719,0.271 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-5 (CANH) - G103-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

41.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

NG

47.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
41.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
a.

Measure the resistance according to the value(s) in the table below.

C434632C16

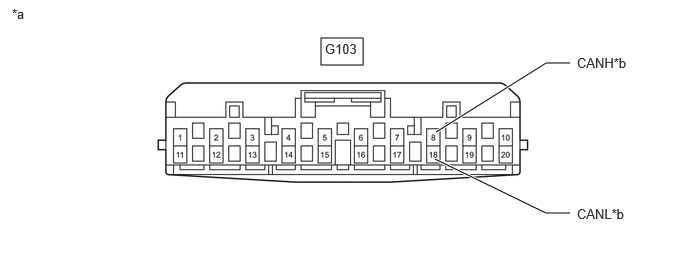

3.344,0.396 3.781,0.677 0.438,0.281 5.938,0.656 5.688,0.656 5.688,0.656 4.542,1.375 true 5.938,2.219 5.688,2.219 5.688,2.219 4.531,1.656 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.385,0.427 3.792,0.635 0.406,0.208 10 false G103 6.01,2.146 6.594,2.354 0.583,0.208 10 false CANL*b 6.01,0.573 6.594,0.781 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Vehicle Approaching Speaker Controller


Standard Resistance:
Tester Connection Condition Specified Condition
G103-8 (CANH) - G103-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

42.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

NG

48.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
42.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C434632C20
3.365,0.417 3.802,0.698 0.438,0.281 5.646,0.656 5.427,0.656 5.427,0.656 5.25,1.417 true 5.698,2.292 5.448,2.292 5.448,2.292 5.26,1.625 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.417,0.458 3.823,0.667 0.406,0.208 10 false G103 5.802,2.198 6.385,2.406 0.583,0.208 10 false CANL*b 5.781,0.594 6.365,0.802 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
G103-10 (CANH) - G103-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE NO. 3 CAN JUNCTION CONNECTOR

NG

49.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
43.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G174 central gateway ECU (network gateway ECU) connector.

C434632C11
3.344,0.365 3.781,0.646 0.438,0.281 1.24,0.927 1.406,0.927 1.406,0.927 1.865,1.396 true 1.135,1.979 1.302,1.979 1.302,1.979 1.865,1.604 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.406,0.417 3.813,0.625 0.406,0.208 10 false G103 0.604,1.896 1.188,2.104 0.583,0.208 10 false CANL*b 0.677,0.854 1.26,1.063 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-1 (CANH) - G103-11 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

44.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A24 ECM connector.

C434632C12
3.271,0.344 3.708,0.625 0.438,0.281 1.958,0.458 2.125,0.458 2.125,0.458 2.615,1.385 true 1.75,2.5 1.917,2.5 1.917,2.5 2.635,1.656 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.323,0.417 3.729,0.625 0.406,0.208 10 false G103 1.167,2.417 1.75,2.625 0.583,0.208 10 false CANL*b 1.375,0.385 1.958,0.594 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to ECM



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-3 (CANH) - G103-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>A25F-FXS (ENGINE CONTROL)>ECM (Production date from 2021/08)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - ECM)

45.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A87 inverter with converter assembly connector.

C434632C13
3.375,0.458 3.813,0.74 0.438,0.281 1.719,0.667 1.885,0.667 1.885,0.667 2.25,1.385 true 1.51,2.344 1.677,2.344 1.677,2.344 2.24,1.656 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.427,0.5 3.917,0.823 0.49,0.323 10 false G103 0.969,2.271 1.552,2.479 0.583,0.208 10 false CANL*b 1.135,0.594 1.719,0.802 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-2 (CANH) - G103-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

46.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

*1: for AWD

*2: for 2WD


a.

Disconnect the A87*1 or A51*2 inverter with converter assembly connector.

C434632C14
3.292,0.438 3.729,0.719 0.438,0.281 2.115,0.302 2.281,0.302 2.281,0.302 2.99,1.406 true 2.104,2.542 2.271,2.542 2.271,2.542 2.99,1.604 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.323,0.479 3.729,0.688 0.406,0.208 10 false G103 1.552,2.469 2.135,2.677 0.583,0.208 10 false CANL*b 1.531,0.229 2.167,0.49 0.635,0.26 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-4 (CANH) - G103-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

for AWD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for AWD)>REMOVAL

for 2WD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>INVERTER WITH CONVERTER (for 2WD)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

47.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)
a.

Disconnect the A30 hybrid vehicle control ECU assembly connector.

C434632C15
3.375,0.396 3.813,0.677 0.438,0.281 2.344,0.229 2.51,0.229 2.51,0.229 3.354,1.406 true 2.385,2.583 2.552,2.583 2.552,2.583 3.365,1.625 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.417,0.448 3.823,0.656 0.406,0.208 10 false G103 1.823,2.469 2.49,2.719 0.667,0.25 10 false CANL*b 1.781,0.156 2.5,0.427 0.719,0.271 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-5 (CANH) - G103-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU ASSEMBLY)

48.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)
a.

Disconnect the A45 vehicle approaching speaker controller connector.

C434632C16
3.344,0.396 3.781,0.677 0.438,0.281 5.938,0.656 5.688,0.656 5.688,0.656 4.542,1.375 true 5.938,2.219 5.688,2.219 5.688,2.219 4.531,1.656 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.385,0.427 3.792,0.635 0.406,0.208 10 false G103 6.01,2.146 6.594,2.354 0.583,0.208 10 false CANL*b 6.01,0.573 6.594,0.781 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Vehicle Approaching Speaker Controller



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-8 (CANH) - G103-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE VEHICLE APPROACHING SPEAKER CONTROLLER

Click hereVehicle Exterior>ACOUSTIC VEHICLE ALERTING SYSTEM>VEHICLE APPROACHING SPEAKER ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - VEHICLE APPROACHING SPEAKER CONTROLLER)

49.CHECK FOR SHORT IN CAN BUS WIRES (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the z26 battery ECU assembly connector.

C434632C20
3.365,0.417 3.802,0.698 0.438,0.281 5.646,0.656 5.427,0.656 5.427,0.656 5.25,1.417 true 5.698,2.292 5.448,2.292 5.448,2.292 5.26,1.625 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.417,0.458 3.823,0.667 0.406,0.208 10 false G103 5.802,2.198 6.385,2.406 0.583,0.208 10 false CANL*b 5.781,0.594 6.365,0.802 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-10 (CANH) - G103-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY [Production date from 2021/08])>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

50.CHECK FOR OPEN IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G103 No. 3 CAN junction connector.

C434632C11
3.344,0.365 3.781,0.646 0.438,0.281 1.24,0.927 1.406,0.927 1.406,0.927 1.865,1.396 true 1.135,1.979 1.302,1.979 1.302,1.979 1.865,1.604 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.406,0.417 3.813,0.625 0.406,0.208 10 false G103 0.604,1.896 1.188,2.104 0.583,0.208 10 false CANL*b 0.677,0.854 1.26,1.063 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G103-1 (CANH) - G103-11 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

51.CHECK FOR OPEN IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)

NG

52.CHECK FOR OPEN IN CAN BUS WIRE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 3 CAN JUNCTION CONNECTOR)
51.CHECK FOR OPEN IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C434632C12
3.271,0.344 3.708,0.625 0.438,0.281 1.958,0.458 2.125,0.458 2.125,0.458 2.615,1.385 true 1.75,2.5 1.917,2.5 1.917,2.5 2.635,1.656 true 0.125,0.063 0.438,0.26 0.313,0.198 10 false *a 3.323,0.417 3.729,0.625 0.406,0.208 10 false G103 1.167,2.417 1.75,2.625 0.583,0.208 10 false CANL*b 1.375,0.385 1.958,0.594 0.583,0.208 10 false CANH*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
G103-3 (CANH) - G103-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE NO. 3 CAN JUNCTION CONNECTOR

NG

53.CHECK FOR OPEN IN CAN BUS WIRE (ECM - NO. 3 CAN JUNCTION CONNECTOR)
52.CHECK FOR OPEN IN CAN BUS WIRE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 3 CAN JUNCTION CONNECTOR)
a.

Reconnect the G103 No. 3 CAN junction connector.


b.

Disconnect the G174 central gateway ECU (network gateway ECU) connector.


c.

Measure the resistance according to the value(s) in the table below.

C422308C55
0.625,0.792 1.125,1.042 0.5,0.25 2.948,0.917 2.948,1.583 2.948,1.583 2.781,1.583 true 3.094,0.917 3.094,1.583 3.094,1.583 3.25,1.583 true 0.115,0.115 0.427,0.313 0.313,0.198 10 false *a 0.698,0.833 1.135,1.052 0.438,0.219 10 false G174 3.313,1.521 3.927,1.719 0.615,0.198 10 false CA4H 2.427,1.51 3.042,1.708 0.615,0.198 10 false CA4L
*a Front view of wire harness connector
(to Central Gateway ECU [Network Gateway ECU]) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
G174-26 (CA4H) - G174-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - NO. 3 CAN JUNCTION CONNECTOR)

53.CHECK FOR OPEN IN CAN BUS WIRE (ECM - NO. 3 CAN JUNCTION CONNECTOR)
a.

Reconnect the G103 No. 3 CAN junction connector.


b.

Disconnect the A24 ECM connector.


c.
C405888C02
1.417,0.167 1.813,0.417 0.396,0.25 1.802,1.292 2.25,0.167 2.25,0.167 2.417,0.167 true 1.823,1.427 2.5,0.458 2.5,0.458 2.667,0.458 true 1.49,0.208 1.948,0.406 0.458,0.198 10 false A24 0.167,0.104 0.625,0.302 0.458,0.198 10 false *a 2.49,0.083 2.948,0.281 0.458,0.198 10 false CANH 2.75,0.396 3.208,0.594 0.458,0.198 10 false CANL
*a Front view of wire harness connector
(to ECM)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A24-8 (CANH) - A24-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>A25F-FXS (ENGINE CONTROL)>ECM (Production date from 2021/08)>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (ECM - NO. 3 CAN JUNCTION CONNECTOR)
